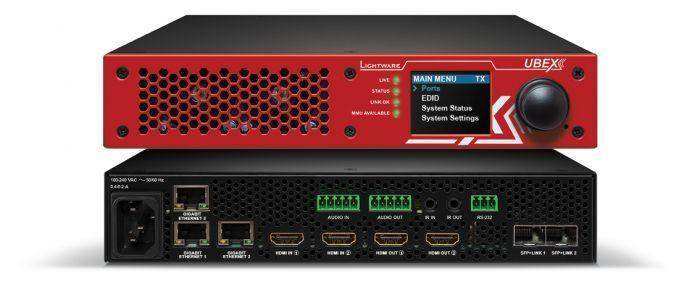

Lightware UBEX-PRO20-HDMI-F110 RED Optical AV Over IP Video System for 10G Networks - 91820101

4K UHD @ 60Hz 4:4:4 uncompressed AV over IP via 20 Gbps on two (or four) fibers with analog audio, RS-
232, IR, addons; dual channel 4K transmitter or receiver with scaling.

UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network.

UBEX is an optical scaling extender which allows 4K UHD@60Hz 4:4:4 uncompressed signal extension with latency-free multistreaming. The device is designed to use Video Over IP transmission on a 10G Ethernet network, it has standard, 10 Gbps SFP+ optical modules installed, which are field-exchangeable by the user.

UBEX units can connect to create a complex network with the use of a standard Ethernet switch.

An UBEX-MMU-X200 Matrix Management Unit (MMU) is required to control and supervise a virtual matrix, which can be created by connecting UBEX units as input and output endpoints to an Ethernet switch acting as crosspoint.The MMU device can update the firmware of endpoint UBEX units in a virtual matrix application simultaneously, without limitation for the number of devices in the setup.

One of the prime advantages of such new architecture is scalability: the virtual matrix created can have a virtually infinite number of endpoints, limited only by the number of open ports on the Ethernet switch used. Such a virtual matrix can be also extremely asymmetrical, as e.g. it could have only a few (or one) devices on the input side, while an almost unlimited number of output end units.

Using visually lossless compression, UBEX can extend two signals over a single, 10 Gbps Ethernet port. This generates substantial cost saving on the required Ethernet switch side, as with UBEX only half the router size is required compared to the needs of similar, 10 Gbps IP based architectures. For video signals which can be transferred within the 10G speed limit of a single optical fiber, a video signal redundancy feature is available employing the second optical fiber channel.

The UBEX design also favors dual-screen applications: each transmitter and each receiver handles 2x HDMI 2.0 video ports.

UBEX can also be used in a point to point setup as a conventional extender pair between endpoints. It is not required to use an Ethernet switch when point to point extension is required.

The Video Wall Wizard for UBEX features quick video wall installation with bezel adjustment and cropping, includes options for various layouts within the video wall matrix and also allows zones for smart management.

The maximum reachable distance is ranging between 400 m and 80km, depending on the type of singlemode or multimode optical modules installed in the device, and on the signal properties.

The internal power source of UBEX has Medical (60601) and ITE (60950) grade classifications for maximum reliability.

Hardware Features	UBEX-PRO20-HDMI-F100	UBEX-PRO20-HDMI-F110	UBEX-PRO20-HDMI-F120
Link	20G	20G	20G
Optical
Type of videos	HDMI 2.0	HDMI 2.0	HDMI 2.0
Nr. of video inputs	2	2	2
Nr. of video outputs	2	2	2
USB HID (KVM)
Balanced stereo analog audio I/O ports
IR I/O and RS.232 control ports
1 Gbps Ethernet
Nr. of fibers (W/STANDARD SFP +)	4	4	4
Nr. of fibers (W/BIDI SFP +)	2	2	2

Software Features	UBEX-PRO20-HDMI-F100	UBEX-PRO20-HDMI-F110	UBEX-PRO20-HDMI-F120
4K scaling	1	1	1
Framerate conversion
4K UHD @ 60Hz 4:4:4
30 bit deep color support
Audio embedding and de-embedding
Advanced edid management
HDCP 2.2 compliant
Seamless switching

¹ : for only one video stream

Uncompressed Signal Management Over IP

Typical Applications

• Large office building environments
• Yacht and other high-end residential systems
• Rental and Staging

For further information on our SFP+ modules and color options please contact your regional Lightware Office or Lightware HQ.

Hardware Features	UBEX-PRO20-HDMI-F100	UBEX-PRO20-HDMI-F110	UBEX-PRO20-HDMI-F120
Link	20G	20G	20G
Optical
Type of videos	HDMI 2.0	HDMI 2.0	HDMI 2.0
Nr. of video inputs	2	2	2
Nr. of video outputs	2	2	2
USB HID (KVM)
Balanced stereo analog audio I/O ports
IR I/O and RS.232 control ports
1 Gbps Ethernet
Nr. of fibers (W/STANDARD SFP +)	4	4	4
Nr. of fibers (W/BIDI SFP +)	2	2	2

Software Features	UBEX-PRO20-HDMI-F100	UBEX-PRO20-HDMI-F110	UBEX-PRO20-HDMI-F120
4K scaling	1	1	1
Framerate conversion
4K UHD @ 60Hz 4:4:4
30 bit deep color support
Audio embedding and de-embedding
Advanced edid management
HDCP 2.2 compliant
Seamless switching

• HDCP 2.2 and HDCP 1.4 compliant with cross conversion capabilities
• HDMI 2.0, HDMI 1.4 and DVI 1.0 compliant
• 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
• Firmware upgrade through Ethernet
• Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
• Color subsampling option on outputs (4:4:4 to 4:2:0 downconversion)
• Pixel Accurate Reclocking
• Automatic or adjustable video format conversion (DVI, HDMI or HDMI deep color)
• Front to back cooling airflow
• Automatic or adjustable color space and color range conversion
• Status LED for extension link detection
• Built-in universal power supply
• 5-pole Phoenix balanced analog audio connectors
• Mounting options for rack, furniture or truss
