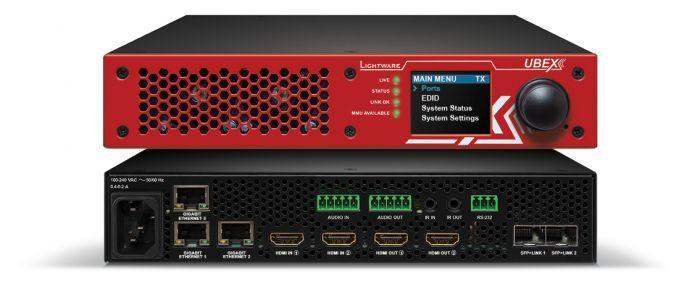

Lightware UBEX-Pro20-HDMI-F110 RED 2SM Optical AV Over IP Video System for 10G Networks - 91820102

Product Overview

The Lightware UBEX-Pro20-HDMI-F110 RED 2SM is an F-type (transmitter) AV-over-IP node in the UBEX Pro20 HDMI series — the top-configured transmitter in this product line — shipping with two single-mode (SM) SFP+ fiber transceivers and the F110 dual-port chassis. It delivers uncompressed 4K HDMI 2.0 distribution over 10 Gigabit Ethernet across long-distance single-mode fiber infrastructure, with dual SFP+ ports supporting redundant or dual-link fiber configurations. This is the preferred specification for enterprise campus AV, government facilities, and mission-critical deployments requiring both the reach of single-mode fiber and the port redundancy of the F110 chassis. Search terms: Lightware UBEX Pro20 HDMI F110 single-mode fiber transmitter dual SFP+, 10G AV over IP SM fiber redundant transmitter, uncompressed 4K HDMI 2.0 long-distance fiber AV-over-IP.

Product Description

The UBEX-Pro20-HDMI-F110 RED 2SM accepts a single HDMI 2.0 source and transmits an uncompressed IP stream over 10GbE via two included single-mode SFP+ transceivers. The F110 chassis provides two SFP+ ports, supporting configurations including active/standby fiber redundancy or dual independent optical links, compared to the single-port F100 chassis. Single-mode fiber delivers kilometers of reach — well beyond multimode or copper alternatives — making this the right choice for inter-building AV runs across a campus, between floors in tall buildings, or in large facilities where distances routinely exceed multimode reach.

Signal processing is fully uncompressed at 4K/60Hz 4:4:4 HDMI 2.0 bandwidth, with sub-frame latency and no codec artifacts. HDR10, Dolby Vision, multi-channel audio (Dolby TrueHD, DTS-HD MA), and HDCP 2.2 are all supported natively. The unit integrates with Lightware Device Controller (LDC) for centralized routing, monitoring, and EDID management across all UBEX nodes in the system. RS-232, TCP/IP, and USB control interfaces provide direct integration with Crestron, AMX, Extron, and Q-SYS control processors. The 1RU rack-mountable chassis is suited for equipment rooms and data closets.

Key Features

• Two single-mode SFP+ transceivers included — ships complete for long-distance single-mode fiber deployment
• F110 dual SFP+ chassis — supports active/standby fiber redundancy or dual independent optical connections
• Uncompressed HDMI 2.0 over 10GbE — full 4K/60Hz 4:4:4 with zero compression
• Long-distance single-mode reach — kilometers of fiber reach for campus and inter-building AV
• Sub-frame zero-latency processing — no codec delay, suitable for professional and broadcast-adjacent use
• HDR and deep color support — HDR10 and Dolby Vision passthrough in HDMI 2.0 stream
• HDCP 2.2 and 1.4 compliant — protected content distribution
• 8-channel audio support — PCM and HBR audio (Dolby TrueHD, DTS-HD MA)
• LDC software integration — centralized Lightware Device Controller management
• Third-party control system interfaces — RS-232, TCP/IP, USB for Crestron, AMX, Extron, Q-SYS
• Advanced per-port EDID management — EDID emulation, locking, and custom EDID support
• 1RU rack-mountable — standard equipment room chassis

Typical Applications

• Enterprise campus inter-building AV-over-IP on single-mode fiber
• Government and defense facility long-distance HDMI distribution
• University campus large-scale AV-over-IP backbone
• Mission-critical control rooms requiring fiber redundancy
• Broadcast-adjacent facility HDMI signal infrastructure
• Large auditorium and house of worship distributed AV systems

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Why choose the F110 2SM over the F100 2SM?

The F110 chassis provides two SFP+ optical ports compared to the F100's one. This enables dual-link configurations for fiber redundancy (active/standby) or dual independent signal paths. Choose the F110 when fiber link resilience is a system requirement.

What is the effective distance of single-mode fiber with this unit?

10GbE single-mode SFP+ SR transceivers vary by specific module. Typical single-mode LR modules support up to 10km; ZR modules extend further. Verify the included SM transceiver specifications for your exact distance requirements.

Can this transmitter work in a matrix (many-to-many) configuration?

Yes. Multiple UBEX Pro20 HDMI F-type transmitters and R-type receivers connected through a 10GbE switch form a full AV-over-IP matrix managed by Lightware Device Controller (LDC) or third-party control systems.

Is this compatible with the UBEX receiver variants that use multimode or copper connections?

All UBEX Pro20 HDMI nodes operate on the same 10GbE IP platform. A single-mode fiber transmitter and a copper CAT receiver can coexist on the same 10GbE switch; the physical layer (fiber vs. copper) is independent of the IP routing layer.

What control systems are directly compatible?

Crestron, AMX, Extron, and Q-SYS via RS-232 and TCP/IP. Lightware also provides Lightware Device Controller (LDC) software for PC-based management of all UBEX nodes, routing, EDID, and monitoring.

What 10GbE switch specifications are required?

The switch must support 10GbE SFP+ ports (for connecting to fiber nodes) and/or 10GbE RJ45 ports (for copper nodes), jumbo frames (MTU 9000+), and IGMP snooping for multicast-based distribution topologies.

Where can I purchase this product?

The Lightware UBEX-Pro20-HDMI-F110 RED 2SM is available from Creation Networks, an authorized Lightware commercial AV reseller specializing in enterprise and government AV systems.
