Lightware TPX-2x1-TX20-RX107 Taurus TPX transmitter and receiver bundle - 91350019

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91350019
No reviews
Price:
$2,550.00

Description

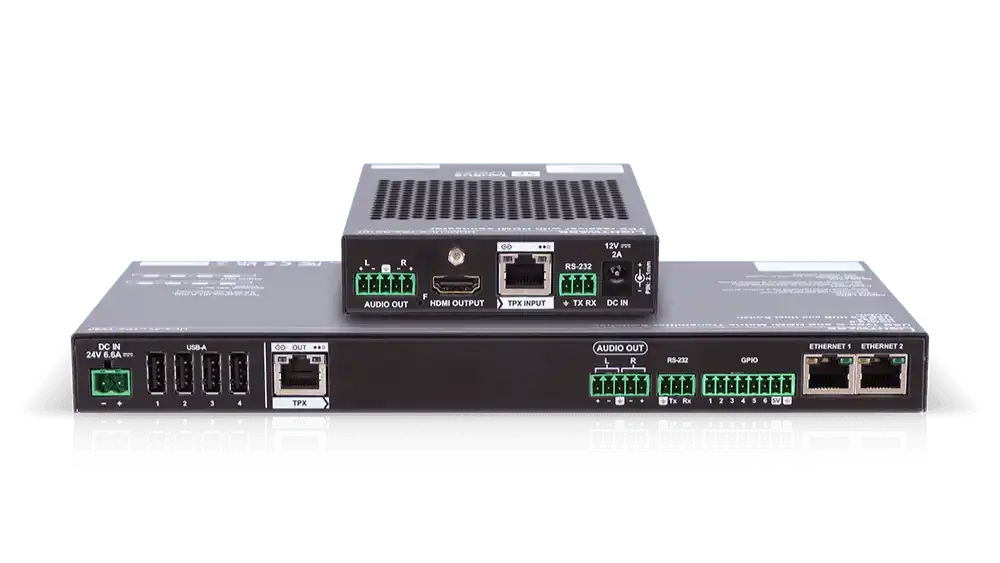

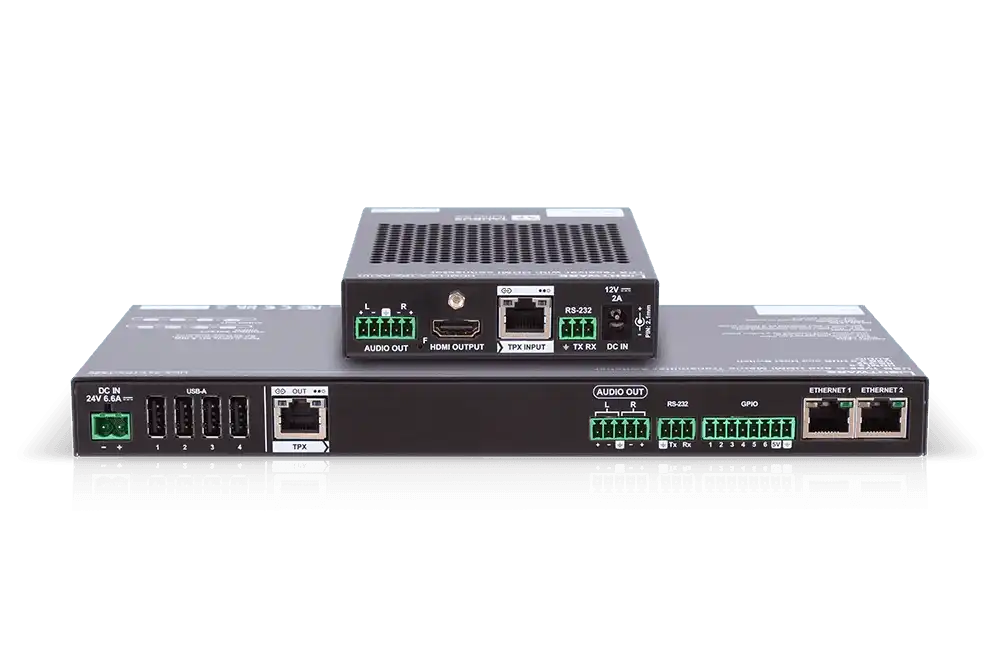

Lightware Taurus TPX transmitter and receiver bundle. It contains 1 pc UCX-2x1-TPX-TX20 and 1 pc HDMI-UCX-TPX-RX107.

  • Room device control via Ethernet (TCP/IP) or Serial (2x at TX device, 1x at RX device)
  • Independent USB Host switching layer for multiple USB hosts, up to 8 devices (4x at the TX side, 4x at the RX side)
  • Multiple USB 2.0 connectivity for any type of USB device (Camera, speakerphone, touch monitor, USB-HID devices etc.) Both on the TX and the RX
  • USB-C charging up to 100W on the TX
  • USB-C input connectivity on the TX device for 4K Video, Audio, Data, and Power (Video, Audio, Data and Power over a single USB-C connection)
  • Single CAT connectivity between TX and RX devices, up to 100m, with Power delivery from TX to RX, Video, USB2.0, Ethernet, OCS and Serial

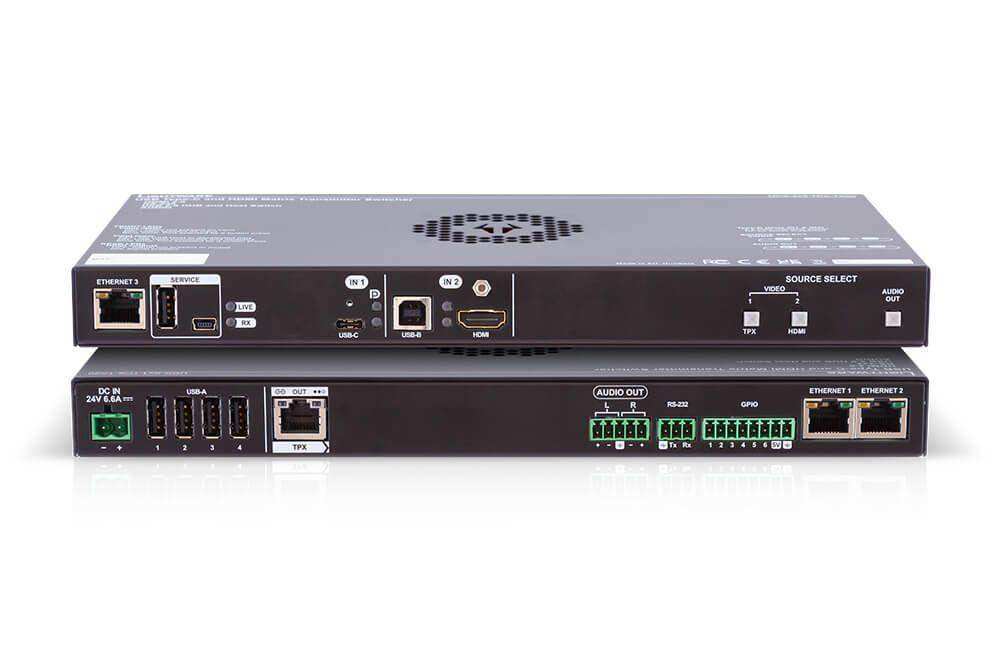

UCX-2x1-TPX-TX20

General Compliance CE; UKCA
Electrical safety IEC 61000-3-3:2013+AMD1:2017
EMC (emission) IEC/EN 55032:2015
EMC (immunity) IEC/EN 55035:2017
RoHS EN 63000:2018
Warranty 3 years
Operating temperature 0° to +50°C (+32° to +122°F)
Operating humidity 10% to 90%, non-condensing
Cooling Cooling fan
Power Power supply option   External 160W Power Supply (if remote powering UCX-TPX-RX)
Supported power source 100-240 V AC; 50/60 Hz
AC power plug   Interchangeable (EU, UK, JP/US, AUS/NZ)
Battery cell type BR1632A
Enclosure Enclosure material 1 mm steel
Dimensions in mm 271 W x 140,3 D x 26 H
Dimensions in inch 10.7 W x 5.57 D x 1.01 H
Weight TBD
Video Inputs USB-C input Connector type 24-pole USB type C receptacle
A/V standard DP 1.2a
HDCP compliance HDCP 1.4, HDCP 2.2
Color space RGB, YCbCr
Video delay 0 frame
Max. video resolution 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit
Audio formats all formats in line with HDMI 2.0 standard
3D support yes
HDMI input Connector type 19-pole HDMI Type A receptacle (with screw locking option)
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
Maximum data rate 18Gbps
Maximum pixel clock 597MHz
HDCP compliance HDCP 1.4, HDCP 2.2
Color space RGB, YCbCr
Video delay O frame
Max. video resolution 4096x2160@60Hz RGB 4:4:4 (up to 600MHz pixel clock);1920x1080@120 Hz, 36 bit
Max. input HDMI cable length (with premium certified cable) at 3840x2160@60Hz 4:4:4 5m
Re-clocking Pixel Accurate Re-clocking
3D support yes
Audio mode Simultaneous pass-through and de-embedding to the Audio layer
Supported audio formats for pass-through All HDMI2.0 audio formats
 Supported audio formats for de-embedding Uncompressed
Compressed Dolby Digital, DTS; Compressed HBR; Dolby TrueHD, DTS-HD
Video Outputs HDMI output Connector type 19-pole HDMI Type A receptacle
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance HDCP 1.4, HDCP 2.2
Color space RGB, YCbCr
Supported resolutions Up to UHD/4k@60Hz 4:4:4
Audio formats 8 channel PCM, Dolby TrueHD; DTS-HD Master Audio 7.1
Audio Ports Analog audio output Connector type 5-pole Phoenix connector
Audio formats 2-ch PCM
Sampling frequency 48 kHz
Volume -95.62 dB-0 dB
Balance -100 +100 (0 = center)
GPIO port Connector type 8-pole Phoenix
Function (pin 1-6) Configurable (input/output)
Function (pin 7) 5V output
Function (pin 8) Ground
USB Ports Host port (UFP) Connector type C-type receptacle
USB compliance USB 2.0
Connector type B-type receptacle
USB compliance USB 2.0
Device port (DFP) Connector type A-type receptacle
USB compliance USB 2.0
Control ports Ethernet port Connector type RJ45 female connector
Ethernet data rate 10/100/1000 Base-T, full duplex with auto detect
Power over Ethernet (PoE) Not supported
USB port Connector type A-type receptacle
USB compliance USB 2.0
Connector type mini B-type
USB compliance USB 2.0
RS-232 port Connector type 3-pole Phoenix connector
Baud rates between 9600 and 115200 baud
Data bits 8
Parity None Odd/Even
Stop bits 1/2
Output voltage: Low level 3-15V
Output voltage: High level -15V - 3V

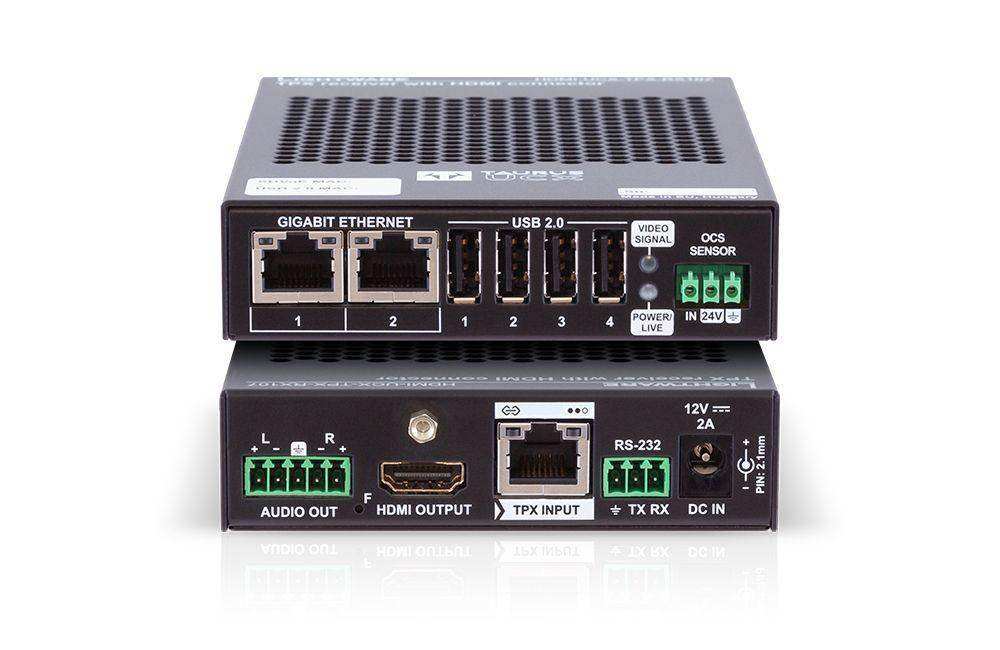

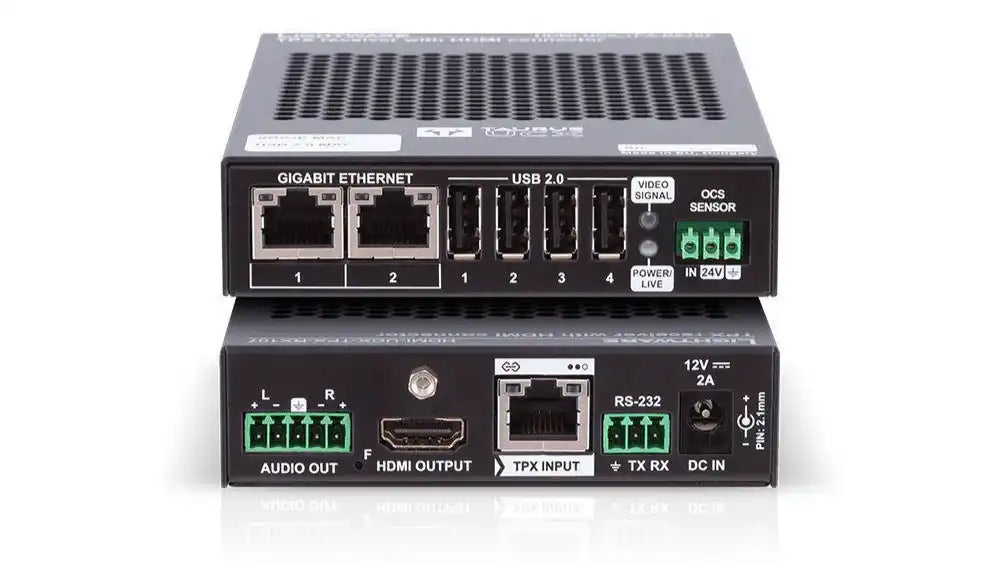

HDMI-UCX-TPX-RX107

General Compliance CE; UKCA
Electrical safety EN 62368-1:2014
EMC (emission) EN 55032:2015
EMC (immunity) EN 55035:2017
RoHS EN 63000:2018
Warranty 3 years
Operating temperature 0° to +50°C (+32° to +122°F)
Operating humidity 10% to 90%, non-condensing
Cooling passive
Power Power supply option   Power adaptor 12V /PoE PD
Supported power source 100-240 V AC, 50/60 Hz
Power consumption 24W (TBC)
Power adaptor Supplied power 12V DC, 2A
AC power plug Interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug Locking DC connector (2.1/5.5 mm pin)
Enclosure Rack mountable yes, with mounting accessories
Enclosure material 1 mm steel
Dimensions (mm) 151.8 x 104.9 x 26
Weight (TBD)
Video ports HDMI output Connector type 19-pole HDMI Type A receptacle
AV standard DVI 1.0, HDMI 20
HDCP compliance HDCP 2.3
Color space RGB, YCbCr
Supported resolutions at 8 bits/color up to 4096x2160@60Hz (4:4:4)
Audio formats 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1
TPX input Connector type RJ45 connector
Power over Ethernet POE PD (IEEE802.3af)
Data rate 10GBase-T
Compliance AVXT
HDCP compliance HDCP 2.3
Transferred signals Video, Audio, USB 2.0, RS-232, OCS, Ethernet
Color space RGB, YCbCr
Supported resolutions at 8 bits/color up to 4096x2160@60Hz (4:4:4)
Audio formats 8-channel PCM, Dolby TrueHD, DTS-HD Master Audio 7.1
Audio Ports Analog audio output Connector type 5-pole Phoenix connector
Audio formats 2-channel PCM
Sampling frequency 48 kHz
Signal transmission Balanced signals
Control ports Ethernet port Connector type RJ45 female connector
Number of connectors per unit 2
Ethernet data rate 1GBase-T, full duplex with autodetect
RS-232 serial port Connector type 3-pole Phoenix connector
Default settings 9600 BAUD, 8N1
