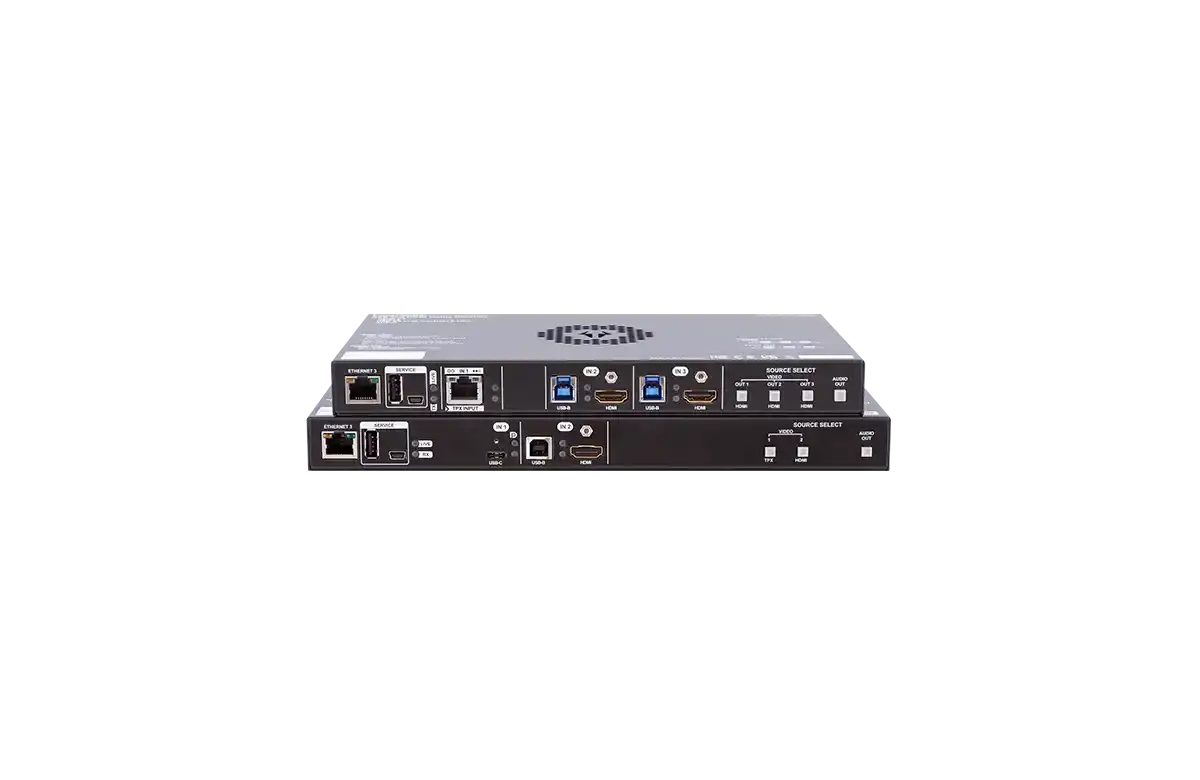

LightWare TPX-2x1-TX20-3x3-RX20 bundle Lightware Taurus TPX transmitter and receiver bundle.

Product Overview

The Lightware TPX-2x1-TX20-3x3-RX20 Bundle packages the Taurus TPX transmitter and receiver units together, delivering a complete point-to-point 4K UHD video, audio, Ethernet, and control signal distribution solution for meeting rooms, classrooms, and corporate collaborative spaces. The Taurus TPX platform is Lightware's HDBaseT-based extension system for fixed installations, providing reliable 4K signal transport with HDCP 2.2 compliance and PoE support in a single purchasing configuration. Buying as a bundle simplifies procurement for integrators deploying matched transmitter-receiver pairs across multi-room rollouts.

Product Description

The TPX-2x1-TX20 transmitter accepts two video inputs and passes video, audio, RS-232, IR, and Ethernet to the 3x3-RX20 receiver over HDBaseT infrastructure. The receiver delivers the signal to the local display and provides bidirectional RS-232 and IR for control of remote devices. PoE support on the transmitter simplifies power management by allowing the receiver to power the transmitter over the same HDBaseT cable, removing the need for a local power outlet at the transmitter. The bundle is intended for corporate conference rooms, classrooms, and collaborative spaces where AV integration must be straightforward to install, manage, and replicate across multiple rooms. 4K UHD at 60Hz RGB 4:4:4 and HDCP 2.2 compliance ensure the system handles both current and forward-looking AV source requirements. The transmitter includes a 2-input switcher for local source selection at the presentation position.

Key Features

• Complete TX+RX bundle — Matched Taurus TPX transmitter and receiver in a single purchase, simplifying procurement for multi-room deployments.
• 2-input transmitter switcher — Two video inputs on the TX for local source selection at the presentation position.
• 4K UHD@60Hz RGB 4:4:4 support — Full 4K signal transport at the highest color fidelity without subsampling.
• HDCP 2.2 compliance — Handles copy-protected content from current-generation sources and displays.
• PoE support — Receiver powers the transmitter over the HDBaseT cable, reducing local power requirements at the source position.
• Video, audio, RS-232, IR, Ethernet — All AV and control signals travel over a single HDBaseT cable between TX and RX.
• Long-distance signal extension — HDBaseT transmission over standard CATx cabling for conference rooms, classrooms, and collaborative spaces.
• Bi-directional RS-232 and IR — Control of remote displays and devices from the transmitter or control system end.

Typical Applications

• Conference room
• Training room
• Boardroom
• All-hands room
• House of worship

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is included in the TPX-2x1-TX20-3x3-RX20 bundle?

The bundle includes one TPX-2x1-TX20 transmitter and one TPX-3x3-RX20 receiver. All necessary signal extension for a single room installation is covered by these two units.

What cable type is used between transmitter and receiver?

The TPX system uses standard CAT5e, CAT6, or CAT6A cabling for HDBaseT signal transmission. Refer to the Lightware TPX documentation for specific distance limits by cable type and resolution.

Does the transmitter require its own power supply?

The transmitter is PoE powered from the receiver over the HDBaseT cable, so a local AC outlet at the transmitter position is typically not required. Verify PoE availability in your specific installation.

Can this system be used with a control system such as Crestron or AMX?

Yes. The RS-232 and IR pass-through on both units are compatible with standard third-party control systems for room automation.

Does the 2-input switcher on the transmitter support auto-switching?

Consult the Lightware TPX product documentation or contact Creation Networks for specific auto-switching behavior and configuration options.

Is HDCP 2.2 supported for streaming sources and Blu-ray?

Yes. HDCP 2.2 compliance covers current-generation streaming devices and 4K Blu-ray players that require HDCP 2.2.

Where can I purchase the TPX-2x1-TX20-3x3-RX20 bundle?

Available from Creation Networks, an authorized Lightware commercial AV reseller.
