Product Overview
The Lightware TPS-PI-1P1 is a single-port, standalone TPS (Twisted Pair Signal) power injector designed to deliver remote powering to Lightware TPS receivers over a single Cat cable. It eliminates the need to run a separate power circuit to remote display locations, supporting structured cable AV deployments in boardrooms, classrooms, and multi-room installations. Available from Creation Networks at creationnetworks.net.
Product Description

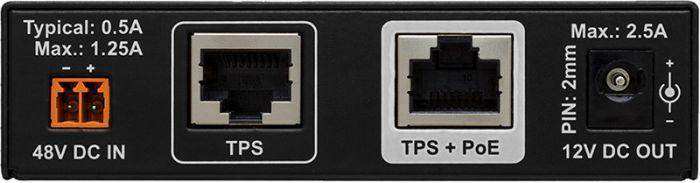

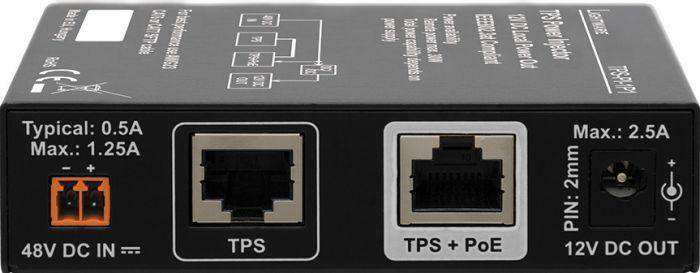

In Lightware TPS systems, HDBaseT or proprietary TPS signals travel over Cat5e/6 structured cabling to remote receivers. The TPS-PI-1P1 injects DC power into that same cable run, powering the remote device without a local power outlet at the endpoint. This is the single-port variant: one Cat input from the TPS transmitter or switcher, one Cat output toward the receiver, with inline power injection happening transparently.
The unit is standalone — it sits outside the rack on a desk or mounts near a cable tray junction — and requires only mains power at its location. Its compact form factor makes it practical for under-table or above-ceiling placement at cable termination points.
Key Features
- Single-port TPS power injection over Cat5e/6 structured cabling
- Standalone form factor — no rack required
- Transparent inline operation — no signal processing or latency
- Powers remote Lightware TPS receivers over the same cable as the AV signal
- Eliminates need for local power at remote display locations
- Compatible with Lightware TPS transmitters and matrix switchers
Typical Applications
- Boardrooms: powering a TPS receiver at a display wall from a rack-mounted switcher
- Classroom AV: remote powering of wall-plate receivers without outlet access above ceiling
- Hospitality: in-room TPS endpoints powered from a corridor or riser cabinet
- Museum and retail digital signage: powering display-side receivers at kiosk locations
- Corporate campus: structured cabling AV deployments with centralized sources
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | TPS-PI-1P1 (91340010) |
| Port Count | 1 (single port) |
| Connector Type | RJ45 (TPS/Cat5e/6) |
| Function | Inline TPS power injector |
| Form Factor | Standalone desktop/surface mount |
| Power Input | Universal mains (100–240V AC) |
| Compatible Systems | Lightware TPS transmitters, matrix switchers, TPS receivers |
| Operating Temperature | 0°C to +40°C |
Competitor Comparison
| Criteria | Lightware TPS-PI-1P1 | Generic HDBaseT PoH Injector | Extron XTP PI 100 |
|---|---|---|---|
| Ecosystem Compatibility | Native Lightware TPS — guaranteed compatibility with Lightware switchers and receivers | Varies by manufacturer; may not interoperate with proprietary TPS signals | Extron XTP ecosystem only; not compatible with Lightware TPS |
| Signal Transparency | Fully transparent — no processing, no added latency | Generally transparent but unverified with Lightware hardware | Transparent within XTP ecosystem |
| Form Factor | Standalone — flexible placement near cable terminations | Varies — some require rack mount | Rack-mountable; requires Extron rack infrastructure |
| Port Count | 1 — purpose-built for single-endpoint deployments | Typically 1–4 ports depending on model | Single port per unit |
| Commercial Support | Lightware commercial warranty via Creation Networks | No dedicated AV commercial support | Extron commercial support |
| Configuration Required | None — plug and inject | Usually none | None |
Frequently Asked Questions
- What TPS receivers is this compatible with?
- The TPS-PI-1P1 is designed for use within the Lightware TPS ecosystem. It is compatible with Lightware TPS receivers and systems that support remote powering over Cat cable.
- Can this power injector be used with standard HDBaseT devices from other brands?
- The TPS-PI-1P1 is optimized for Lightware TPS infrastructure. Compatibility with third-party HDBaseT devices is not guaranteed and should be confirmed with Lightware technical support before deployment.
- Does the power injector affect signal quality or introduce latency?
- No. The TPS-PI-1P1 is fully transparent. It injects power onto the cable without processing the AV signal, adding no latency or signal degradation.
- Does it require rack mounting?
- No. The TPS-PI-1P1 is a standalone unit. It can be placed on a desk, mounted under a table, or secured in a ceiling void near the cable termination point.
- What cable category is required?
- Cat5e or Cat6 structured cabling. Shielded cabling (STP/FTP) is recommended in electrically noisy environments.
- Is this the same as a PoE injector?
- No. This is a TPS power injector specific to the Lightware signaling protocol. It is not a standard IEEE 802.3af/at PoE injector and should not be used as a substitute for standard PoE applications.
