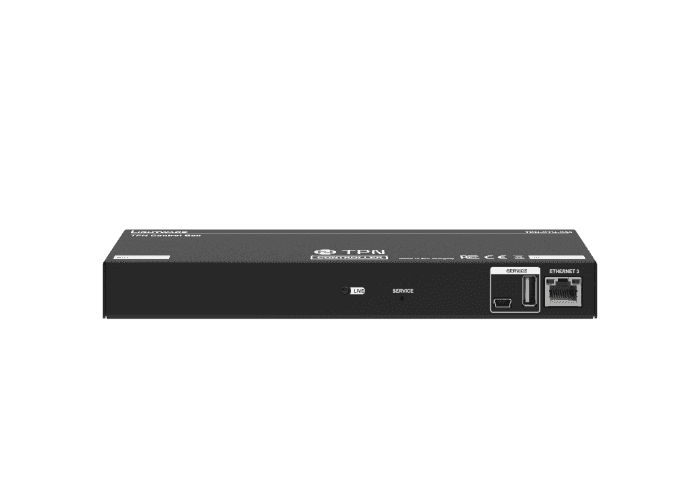

Lightware TPN-CTU-X50 Control Unit for TPN Series - 91710005

Product Overview

The Lightware TPN-CTU-X50 is the central control unit for the Lightware TPN (Twisted Pair Network) Series, providing unified management, signal routing control, and system configuration for TPN-based AV-over-IP installations. It coordinates communication between TPN transmitters and receivers across a managed network infrastructure, enabling centralized control of large-scale SDVoE deployments. The TPN-CTU-X50 is purpose-built for enterprise AV systems integrators deploying Lightware TPN endpoints in corporate, education, and live events environments.

Product Description

The Lightware TPN-CTU-X50 serves as the command hub for TPN Series AV-over-IP systems, managing endpoint discovery, routing configuration, and system monitoring from a single device. It connects to the network infrastructure and communicates with all TPN transmitters and receivers on the same managed network, allowing integrators to define routing matrices, assign labels, and monitor signal status across every endpoint in the system.

The CTU-X50 supports control via built-in web interface, REST API, and third-party control systems such as Crestron, Extron, AMX, and Control4, enabling integration into virtually any control architecture. Its fanless 1U half-rack form factor suits it for rack-mounted AV equipment rooms or back-of-rack deployment alongside network switches. The unit is powered by its included external power supply and requires a managed Gigabit network with IGMP snooping and proper multicast configuration for full TPN system operation.

Key Features

• Centralized TPN system control — manages all TPN Series transmitters and receivers from a single control point
• Web-based management interface — browser-accessible configuration requires no proprietary software installation
• REST API support — enables integration with custom control applications and automation platforms
• Third-party control system integration — compatible with Crestron, Extron, AMX, Control4, and other industry-standard controllers
• Endpoint discovery and labeling — automatically discovers TPN devices on the network and supports custom naming
• Signal routing matrix management — defines and switches any-to-any video routing across all TPN endpoints
• System monitoring — provides real-time status for all connected TPN transmitters and receivers
• Compact 1U half-rack fanless design — silent operation suitable for noise-sensitive environments

Typical Applications

• Large corporate campuses with distributed display networks managed centrally
• University and K-12 classrooms deploying SDVoE AV-over-IP across multiple rooms
• Broadcast and production facilities requiring flexible routing of SDVoE signals
• Conference centers with multi-room AV systems requiring centralized control
• Live events and rental staging with temporary TPN-based signal distribution
• Government and defense facilities with managed AV distribution requiring audit and monitoring

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What does the TPN-CTU-X50 actually control?

The TPN-CTU-X50 is the central management unit for Lightware TPN Series AV-over-IP systems. It discovers, monitors, and manages all TPN transmitters and receivers on the network, handles routing configuration, and provides the control interface for third-party controllers to interact with the system.

What network infrastructure is required for TPN systems?

TPN Series deployments require a managed Gigabit Ethernet switch with IGMP snooping enabled and properly configured multicast routing. Unmanaged switches are not suitable. Creation Networks can assist with network design and switch configuration recommendations.

Does the TPN-CTU-X50 work with Crestron or AMX control systems?

Yes. The TPN-CTU-X50 exposes a REST API and supports serial control, enabling integration with Crestron, AMX, Extron, Control4, and any control system capable of sending HTTP commands or RS-232 strings.

How many TPN endpoints can the CTU-X50 manage?

The TPN-CTU-X50 is designed to manage the full TPN Series deployment. The exact endpoint ceiling depends on network capacity and system configuration. Contact Creation Networks at creationnetworks.net for sizing guidance specific to your project.

Is the web interface accessible remotely?

Yes. The built-in web GUI is accessible from any browser on the same network. Remote access over WAN requires appropriate network and firewall configuration on the customer's infrastructure.

Does the TPN-CTU-X50 require a Windows server or PC?

No. The CTU-X50 is a standalone embedded appliance. No external server, PC, or software installation is required to operate the TPN system.

Where can I purchase the TPN-CTU-X50 and get integration support?

The Lightware TPN-CTU-X50 is available from Creation Networks at creationnetworks.net. Our team provides system design, configuration support, and Lightware-authorized technical assistance.
