Lightware SW4-TPS-TX240-Plus TPS (HDBaseT™) switcher and transmitter for DisplayPort, HDMI and DVI with local monitor out - 91540065

LightWare SKU: 91540065
No reviews

Price:
Sale price$1,190.00

Description

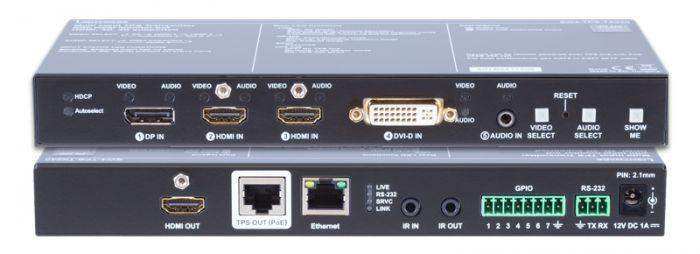

SW4-TPS-TX240 is a top smart extender in the TPS (HDBaseTTM) product family. The device is an all-round video, audio and control extender, transmitting over a single CAT5 or better class cable up to a range of 170 m for dynamic environments such as small board rooms and classrooms. The extender was designed to handle HDMI 1.4 and DP 1.1 digital video signals and analog stereo audio from local inputs or HDMI or DP embedded audio up to eight Channel PCM or HBR audio. Analog audio is converted to a digital format. The device has a local HDMI video output. The video and the embedded audio of the local output is the same as transmitted via TPS link. The SW4-TPS-TX240 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission. Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. SW4-TPS-TX240 is compatible with both the HDBaseT extenders and matrix switchers.

Applications

  • Small classrooms
  • Conference rooms, meeting rooms
  • Control rooms
  • Home cinemas

Advanced Control Pack Features

  • 100 available event slots in ’Plus’ extenders
  • Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
  • Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
  • Support to send CEC commands on HDMI ports for control of other devices.
  • Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.
  • Cisco VC room integration compatibility
  • Advanced control feature pack for 3rd party video conference collaboration
  • Can be remote powered through CATx cable (PoE PD)
  • Built-in Event Manager control automation feature
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • HDCP enable/disable function on input
  • HDCP 1.4 compliant
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • TPS link quality and cable length monitoring
  • Extends DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Adjustable analog audio settings (volume, gain, balance)
  • Audio embedding (or replace original audio)
  • Dual output with built-in distribution amplifier
  • Firmware upgrade through Ethernet
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Advanced EDID Management
  • Pixel Accurate Reclocking
  • Command injection on RS-232 and IR ports
  • GPIO control ports
  • Device control via Ethernet (TCP/IP) and RS-232
  • Multiple TCP/IP connections
  • Intuitive control software for device configuration
  • Front panel buttons for crosspoint control
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Built-in video test pattern generator
  • Bi-directional RS-232 and IR extension (pass-through and control)
  • Twist-and-lock DC power connector
  • Frame Detector (analyze detailed video timings)
  • Compatible with Mac laptop and desktop computers with Thunderbolt port
  • External universal power adaptor
  • 5-pole Phoenix balanced analog audio connectors
  • 3,5mm audio jack input
  • Mounting options for rack, furniture or truss
Specifications
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz>
Digital audio formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization: 4K UHD/15m; FullHD/30m
EDID emulation: Yes, Advanced EDID Management
EDID memory: 120 factory preset, 15 user programmable
HDCP pass-through: Yes
RS-232 pass-through: Yes, configurable
RS-232 (control option): 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through CATx)(default: 57600)
Local power: Universal power adaptor, DC 12V 2.5A
Power over TPS: DC 48V 1 A
Power consumption: 8,5W (typ)
Enclosure: 1 mm metal
Dimensions: 221 W x 100.4 D x 26 H mm
Compliance: CE
Warranty: 3 years



Connectors
Digital video input: HDMI connector, DVI-D connector, DisplayPort
Digital video output: HDMI connector
Audio input: 3.5 mm stereo jack
Ethernet: 1 x RJ45
GPIO: 8-pole PHOENIX
IR: 3.5 mm jack
TPS output: 1 x RJ45
Serial port: 3-pole PHOENIX
Power: Locking DC connector (2.1 / 5.5 mm)



Analog audio input
Volume: -96 .. 0 dB
Balance: 0 .. 100%



Max cable lengths with the available firmware versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
  1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
  1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
  1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
  3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
  4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
 *with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
