LightWare RAP-B511-UK-W Room Automation Panel

Product Overview

The Lightware RAP-B511-UK-W is a wall-mount room automation panel in UK back-box format, finished in white, that combines AV signal switching with programmable room control in a single flush-mount device. It is designed for corporate meeting rooms, boardrooms, and education spaces in the UK where clean wall integration alongside standard electrical fittings is required. The panel eliminates the need for a separate rack-mounted control processor, reducing both installation cost and system complexity for single-room deployments.

Product Description

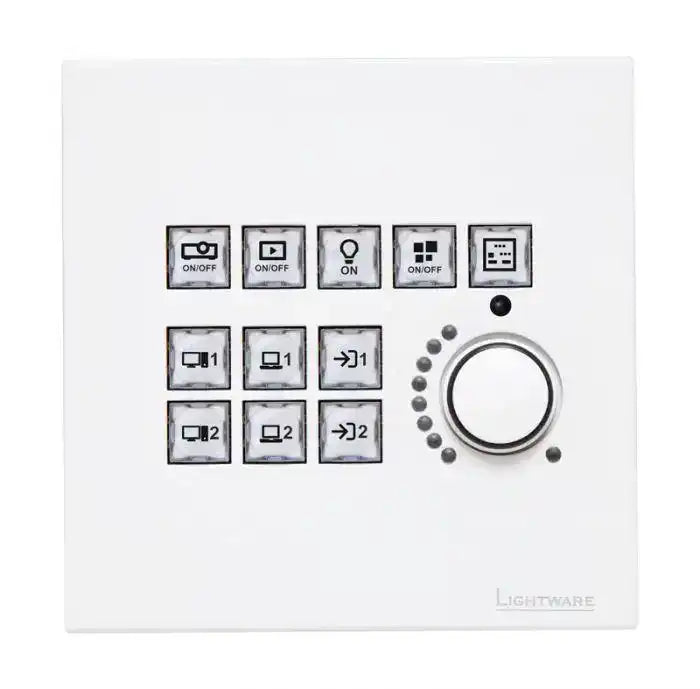

Mounting into a standard UK 2-gang back-box, the RAP-B511-UK-W presents a white capacitive touch button panel that handles source selection, display power, audio control, and custom room automation functions. HDMI and USB-C inputs on the panel accept signals directly from presenter laptops, routed through the device and output over HDMI or HDBaseT to a room display or matrix switcher. The embedded LW3 control engine processes button presses and executes automation logic without any external processor, enabling integrators to program the device via Lightware's web interface over IP. Ethernet connectivity provides integration with room booking platforms, IP-controlled displays, and building management systems. USB pass-through extends peripheral connectivity from the wall plate to room devices. The white finish is specified for offices and education spaces where the panel must present consistently with surrounding light switch and power socket plates. PoE powering removes the need for a local 230V supply connection at the wall plate, simplifying the electrical works required during installation.

Key Features

• All-in-One Room Panel — integrates AV switching and room automation control in a single wall plate, removing the need for a separate control processor
• UK 2-Gang Back-Box Mount — fits standard UK electrical back-boxes for consistent installation alongside sockets and light switches
• White Fascia — suited to corporate and education interiors requiring white wall plates throughout
• Capacitive Touch Buttons — programmable for source selection, display control, audio, and custom functions via LW3
• HDMI and USB-C Inputs — accepts both legacy HDMI and modern USB-C presenter connections at the wall
• HDBaseT Output — drives displays up to 100 m over Cat6A, or local HDMI output for near-field displays
• PoE Powered — powered from the network switch, no 230V connection required at the wall plate
• LW3 Protocol — open control API enables integration with room booking systems and third-party AV control drivers
• No Licensing Fees — unlike Crestron or AMX ecosystems, Lightware does not charge per-room software licences
• USB 2.0 Pass-Through — extends USB peripherals from the wall to connected devices for conference cameras and speakerphones

Typical Applications

• Corporate meeting rooms and boardrooms in UK office fit-outs
• University and further education seminar rooms
• Huddle spaces needing a single wall-plate AV solution
• Healthcare meeting and consultation suites
• Government departmental meeting rooms
• Refurbishment projects replacing legacy button panels and separate switchers

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the RAP-B511-UK-W the same product as the RAP-B511-UK-W listed elsewhere on this site?

Yes. The RAP-B511-UK-W is a single product available in one configuration: UK 2-gang back-box format, white finish. Both listings refer to the same Lightware model. Contact Creation Networks if you require clarification on quantity pricing or project supply.

Can I power the RAP-B511-UK-W from a standard PoE switch?

Yes. The panel is powered via PoE (IEEE 802.3at, PoE+). A PoE+ capable network switch port or PoE injector is all that is required at the infrastructure side. No 230V supply is needed at the back-box.

What programming is needed to set up the room automation functions?

The panel is configured using Lightware's LW3 protocol via a standard web browser connected to the device's IP address. No proprietary software installation or licenced programming environment is required. Integrators define button functions, macros, and display control commands through the web interface.

Does the RAP-B511-UK-W support Microsoft Teams Rooms or Zoom Rooms?

The panel can be integrated into Microsoft Teams Rooms or Zoom Rooms environments as the AV switching layer. It handles source routing and display control, while the codec software manages the conferencing experience. Custom LW3 drivers or third-party control drivers facilitate this integration.

What is the maximum video resolution supported?

The RAP-B511-UK-W supports 3840x2160 (4K UHD) at 60 Hz with 4:4:4 colour sampling, covering all current display and laptop standards including HDR-capable 4K panels.

Is the black version available for the UK format?

Yes. The RAP-B511-UK-K provides the same functionality in a matte black finish for UK back-boxes, available separately from Creation Networks.

Where can I purchase the RAP-B511-UK-W?

The RAP-B511-UK-W is available from Creation Networks at creationnetworks.net, an authorised Lightware reseller for commercial AV integrators and direct procurement.
