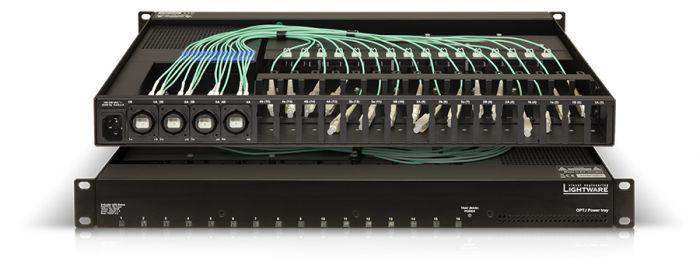

Lightware OPTJ Power tray NTQ Rack-mountable Power Tray for 16x HDMI20-OPTJ-TX/RX90 Optical Extenders - 91340020

Product Overview

The Lightware OPTJ Power Tray NTQ is a 1RU rack-mountable housing and power distribution unit designed to consolidate up to 16 HDMI20-OPTJ-TX/RX90 optical extenders into a single rack space. The tray provides centralized 5V DC power to all installed extenders and terminates fiber connections via four Neutrik OpticalCON Quad connectors on the rear, each carrying four fiber signals. It is intended for installers deploying Lightware HDMI 2.0 optical matrix systems in equipment racks within broadcast studios, auditoriums, large conference rooms, and other high-density AV installations requiring organized, rack-integrated optical extender management.

Product Description

The OPTJ Power Tray NTQ eliminates the need to individually power and cable each HDMI20-OPTJ-TX/RX90 extender in a rack. With 16 DC output ports at 5V/500mA each, the tray supplies every installed extender from a single IEC-connected power source operating across 85–264VAC. The four Neutrik OpticalCON Quad connectors on the rear of the tray each carry fiber from four extenders, providing organized trunk fiber connectivity. The HDMI tail cables of all installed extenders are accessible directly at the rear of the tray for connection to matrix switcher ports.

When the NTQ tray is fully populated with 16 HDMI20-OPTJ-TX90 or RX90 units and the HDMI tail cables are connected to a compatible Lightware matrix (such as the MX2-8x8-HDMI20-Audio), a complete HDMI 2.0 optical matrix system with full 4K UHD at 60Hz 4:4:4 is formed in a compact, organized rack assembly. This approach is preferred over individual unit installation in installations where cable management, serviceability, and rack density are critical operational requirements.

Key Features

• 16-extender capacity — houses up to 16 HDMI20-OPTJ-TX/RX90 optical extenders in a single 1RU enclosure
• Centralized power distribution — 16 x 5V DC outputs at 500mA each, powered from a single IEC AC inlet (85–264VAC)
• Neutrik OpticalCON Quad rear connectors — four NTQ connectors each terminate four fiber signals for organized trunk fiber patching
• Rear HDMI access — extender HDMI tail cables are accessible at the rear of the tray for direct matrix switcher connections
• 1RU rack form factor — standard 19-inch, 1RU enclosure (482.6 x 43.7 x 300mm) in 1mm metal casing
• HDMI 2.0 optical matrix integration — when fully populated, connects directly to Lightware MX2-8x8-HDMI20-Audio for a 4K UHD@60Hz 4:4:4 optical matrix system
• Wide AC input range — 85 to 264VAC, 47–63Hz for international deployment
• Operating temperature — 0 to +50°C, suitable for equipment room environments

Typical Applications

• Broadcast studio
• Auditorium
• Conference room
• All-hands room
• Government space

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the OPTJ Power Tray NTQ come with the HDMI20-OPTJ extenders included?

No. The NTQ tray is the housing and power infrastructure only. HDMI20-OPTJ-TX90 transmitters and HDMI20-OPTJ-RX90 receivers are purchased separately and installed into the tray.

Can the tray be partially populated?

Yes. The tray can be populated with fewer than 16 extenders. Unused bays are left empty and the associated DC output ports are inactive. There is no minimum population requirement.

What fiber patch cable is required to connect to the NTQ connectors?

The Neutrik OpticalCON Quad connectors require OpticalCON Quad-compatible patch cables. These are standard Neutrik NTQ-format multi-fiber trunk cables, available from Lightware and cable suppliers.

Can this tray be combined with an NTD tray in the same rack?

Yes. NTQ (16-extender) and NTD (8-extender) trays can coexist in the same rack. The choice between them depends on fiber connector type (Neutrik Quad vs. Duo) and the number of extenders in the installation.

What matrix switcher is this tray designed to connect to?

The NTQ tray is designed to interface with the Lightware MX2-8x8-HDMI20-Audio matrix switcher via the HDMI tail cables of the installed extenders, creating a complete HDMI 2.0 4K@60Hz 4:4:4 optical matrix system.
