Lightware MX2M-PSU-500F PSU for MX2M modular frame - 91110021

Product Overview

The Lightware MX2M-PSU-500F is a 500W power drawer for the MX2M-FR24R modular matrix frame, providing hot-swappable main or redundant AC power to the frame and its installed I/O boards. It connects via IEC C13 and delivers 41.7A at 12V DC to the frame backplane, supporting all input and output board combinations within the MX2M chassis. For installations where continuous operation is required, a second MX2M-PSU-500F with the optional Redundancy Upgrade firmware provides true N+1 redundant power without interrupting signal routing.

Product Description

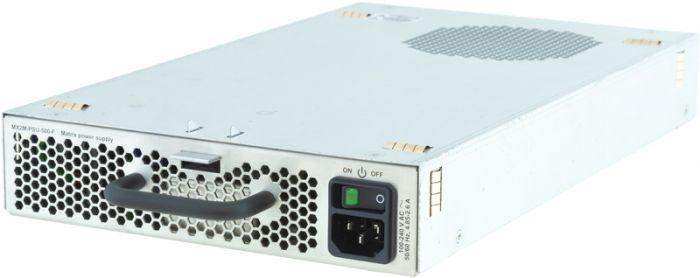

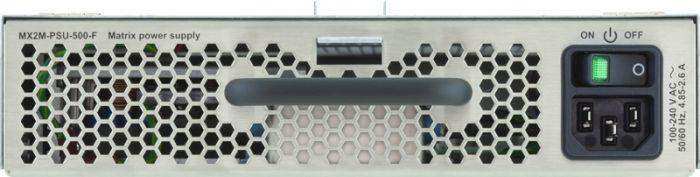

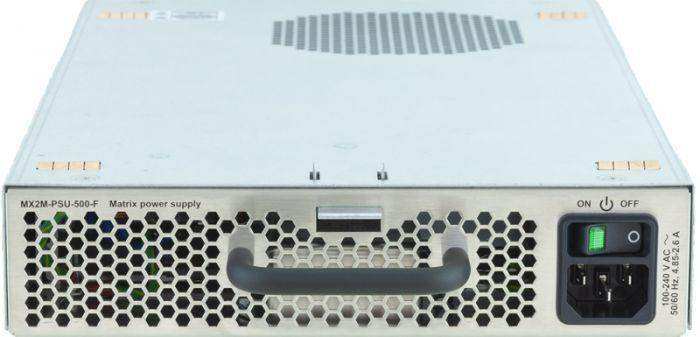

The MX2M-PSU-500F slides into the dedicated power drawer slot on the MX2M-FR24R frame. It operates from 90–264V AC at 47–63 Hz, covering worldwide power standards without adjustment. The front panel includes an illuminated power switch for safe individual control during maintenance without shutting down the full frame.

Frames purchased with two PSU drawers installed are factory-enabled for redundant operation. Single-PSU frames adding a second MX2M-PSU-500F require the separate Redundancy Upgrade firmware purchase from Lightware to activate the N+1 redundancy feature. The drawer is cooled by the frame's built-in fan system and does not require external airflow management beyond standard rack ventilation clearances. The 1.5 mm steel enclosure and 3.11 kg weight are consistent with enterprise-grade power infrastructure components.

Key Features

• Hot-swappable design — can be removed and replaced without powering down the MX2M-FR24R frame or disrupting active signal routes
• Wide AC input range — 90–264V AC, 47–63 Hz; compatible with global power standards without manual voltage selection
• 41.7A @ 12V DC output — sufficient to power the full MX2M frame and all installed I/O boards at rated load
• IEC C13 input connector — standard locking IEC connection compatible with data-center and AV rack power distribution units
• Illuminated power switch — provides local on/off control with clear visual status indication
• Redundancy capable — two units in one frame provide N+1 redundant power (Redundancy Upgrade firmware required for single-PSU upgrades)
• Frame-cooled — relies on the MX2M-FR24R frame fans; no additional thermal management components needed
• UL, CE compliance — certified per IEC/EN/UL/CSA 62368-1:2014 electrical safety and IEC/EN 55032/55035 EMC standards

Typical Applications

• Spare or replacement power drawer for existing MX2M-FR24R modular matrix installations
• Upgrade path for single-PSU MX2M frames requiring redundant power (with Redundancy Upgrade firmware)
• Broadcast control rooms and command centers where frame power outage is unacceptable
• Mission-critical AV routing systems in government, healthcare, and financial trading facilities
• Pre-procurement of spare parts for large MX2M matrix deployments with extended service contracts

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Is the Redundancy Upgrade firmware required for all dual-PSU installations?

No. Frames originally shipped with two MX2M-PSU-500F units already have redundancy enabled by default. The Redundancy Upgrade firmware purchase is only required when adding a second PSU to a frame that was originally shipped with a single power drawer.

Can the MX2M-PSU-500F be removed from a live frame without causing signal interruptions?

Yes, when a second PSU is installed and the frame is in redundant power mode. The hot-swap design allows replacement of a failed or serviced power drawer while the second unit continues supplying power to the frame. Single-PSU frames will experience a power interruption during swap.

What MX2M frame models does this PSU support?

The MX2M-PSU-500F is designed specifically for the Lightware MX2M-FR24R modular matrix frame. It is not compatible with MX-FR65R, MX-FR80R, or other non-MX2M Lightware frames. Verify the exact frame model before ordering.

Does this PSU work with non-Lightware frames or third-party matrix systems?

No. The MX2M-PSU-500F uses a proprietary drawer interface specific to the MX2M-FR24R chassis. It cannot be adapted for use in other manufacturers' equipment.

What certifications does this power supply carry?

The MX2M-PSU-500F is certified to IEC/EN/UL/CSA 62368-1:2014 (Class II electrical safety), IEC/EN 55032:2015 (EMC emission), IEC/EN 55035:2017 (EMC immunity), and EN 50581:2012 (RoHS). It carries UL and CE marks.

Is a power cord included?

An IEC C13 power cord is typically included. Confirm regional cord compatibility with your AV integrator or contact Creation Networks at creationnetworks.net before installation.

What is the typical lead time for this component?

Lead times vary. Contact creationnetworks.net to confirm current stock and delivery schedules, particularly for planned installations with defined commissioning dates.
