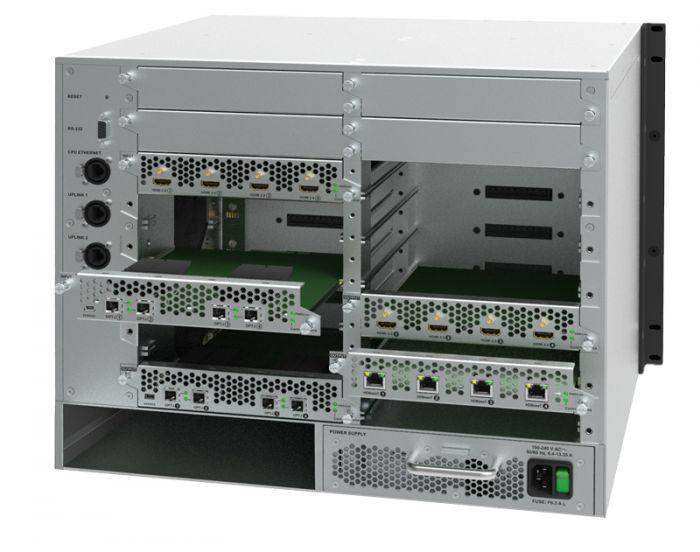

MX2M-FR24R-F is a member of the Lightware MX2 modular matrix switcher series, supporting uncompromised 4K UHD resolution at 60Hz with 4:4:4 sampling pattern and with downconversion capabilities to 4:2:2, supporting HDCP 1.x and 2.3, 3D, Dolby TrueHD and DTS-HD Master Audio. The non-blocking matrix architecture distributes and switches 24 video signals to 24 outputs, distributed along six 4-port boards respectively per direction.

This versatile and customizable device is suitable for various types of applications, the actual application determining the choice of input and output boards to be included in the frame. It is a perfect choice for installations where a huge number of HDMI 2.0 compliant and other types of input and output video ports are required, including HDMI 2.0, DisplayPort 1.2 and compressed AV-Over-IP standards, as well as extension through fibre.

Besides the six 4-port input and six 4-port output video boards, there are four low speed installable slots for Dante, ADC and DAC audio input and output boards, GPIO, USB and other connectivity options.

Control for connected extenders is served by Ethernet layer. The Ethernet layer can also be used for IP extension, as well as for command injection for IR and serial control by third party devices.

For operation safety power redundancy is available, and PSU drawers are field-exchangeable for ease of maintenance. The device also supports various IT security standards.

Upon installing a second power supply unit for the MX2M-FR24R matrix frame, in order to unlock the possibility for redundant operation users need to upgrade the device’s firmware by purchasing the Redundancy Upgrade.

For users who purchased their device with two PSU drawers and only looking to get additional PSU drawers as a spare or backup do not need to perform the firmware upgrade as their device is fully power redundancy capable by default.

Video
Number of input slots 6
Number of output slots 6
Crosspoint 24 x 24 non-blocking
Maximum data rate per video channel 18 Gbps
Maximum pixel clock 600 MHz
Audio
Number of dedicated IO slots 4
Crosspoint 88 x 88 non-blocking
Maximum net data rate per audio stream 36.86 Mbps
Control
Ethernet Control 1x 100Base-T via EtherCON for direct control
User Data 1x 1000Base-T via EtherCON for user data pass-through
Mixed 1x 1000Base-T via EtherCON for control or user data pass-through
RS232 Connector 1x Dsub 9
Symbol rate between 200 and 115200 baud
Configuration 8N1
USB Connector 1x mini USB Type B for LDC control

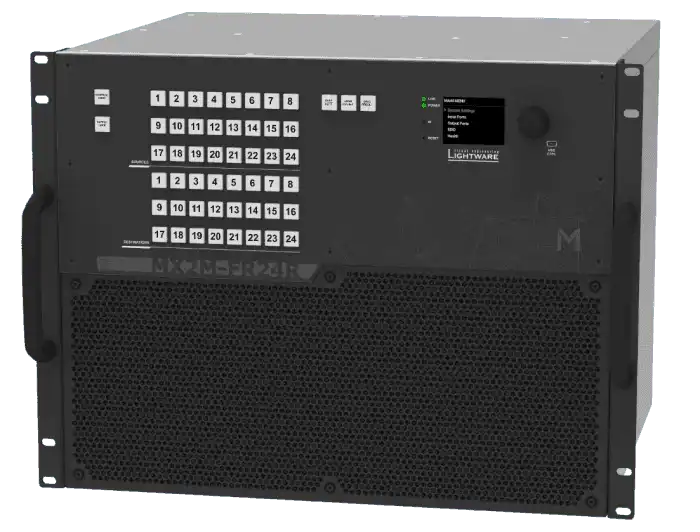

Front panel crosspoint control 24 + 24 + 2 + 3 keys for crosspoint and preset control
Front panel LCD 2.2" 240x320 TFT LCD Display with rotary switch
General
PSU drawer Standrad configuration 1x PSU drawer with IEC connector (90-240 VAC, 50-60 Hz, max 13,5 A)
Redundant configuration 2x PSU drawers with 1x IEC connector per drawer (90-240 VAC, 50-60 Hz, max 13,5 A)
AC line power redundancy 1+1 up to 500 W frame powering, 1+1 up to 600 W PoE powering
Power consumption (max) 500 W
PoE powering Standard configuration up to 600 W
Redundant configuration up to 1200 W (with redundant operation up to 600 W)
Maximum PoE powering per endpoint 100 W
Thermal dissipation (max) Without PoE 1706 BTU per hour
With PoE in a Redundant configuration and maximum PoE powering 2730 BTU per hour
Cooling front-to-back
Mounting Rack mounting Yes
Dimensions Without protruding parts (Chassis handle, PSU drawer handle, mountic bracket) 354.8 mm H x 447 mm W x 400 mm D
With protruding parts (Chassis handle, PSU drawer handle, mountic bracket) 354.8 mm H x 483 mm W x 473 mm D
Weight TBD
Operating conditions Ambient temperature 0-50oC
Relative humidity 0-90% (non-condensing)
Transportation conditions Ambient temperature -20-70oC
Relative humidity 0-95% (non-condensing)
Complience EN 55032:2015
IEC 61000-3-3:2013+AMD1:2017
IEC 61000-3-2:2018
FCC CFR Title 47, Part 15, Subpart B
UL
Warranty 3 years
