Lightware MX2-8x8-DH-4DPio-A Full 4K Matrix Switcher with 8x8 DisplayPort 1.2 I/O Ports - 91310085

Product Overview

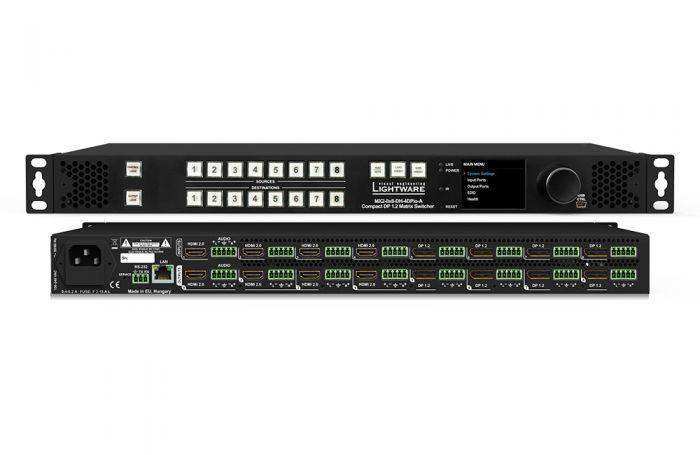

The Lightware MX2-8x8-DH-4DPio-A is an 8x8 standalone matrix switcher with a mixed DisplayPort 1.2 and HDMI 2.0 I/O configuration: four DisplayPort 1.2 inputs, four HDMI 2.0 inputs, four DisplayPort 1.2 outputs, and four HDMI 2.0 outputs. It supports 4K UHD at 60Hz RGB 4:4:4 and is purpose-built for fixed-install AV environments where a mix of DP and HDMI sources and displays must be managed from a single matrix. Specifying a mixed DisplayPort HDMI 8x8 4K matrix switcher for corporate boardrooms, engineering labs, or operations centers with heterogeneous endpoint types leads directly to this model.

Product Description

The MX2-8x8-DH-4DPio-A operates at 18 Gbps per port with a non-blocking 8x8 crosspoint. DisplayPort 1.2 inputs are handled natively without adapters; internally, DP signals are converted to HDMI for crosspoint switching and re-output through either DP or HDMI outputs as needed. The matrix supports HDR10, HDR10+, Dolby Vision, Dolby TrueHD, and DTS-HD Master Audio on HDMI paths. Audio embedding and de-embedding is available at dedicated 5-pole Phoenix analog connectors at all four HDMI and all four DP I/O positions.

Lightware's Pixel Accurate Reclocking, Frame Detector signal analysis, and Advanced EDID Management are included. The device is controllable via front panel crosspoint buttons, built-in web server over Ethernet, RS-232 (3-pole Phoenix), and mini USB. Note: DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync, FreeSync, and HDR on DisplayPort outputs are not supported.

Key Features

• Mixed DP 1.2 and HDMI 2.0 I/O — 4x DP inputs, 4x HDMI inputs, 4x DP outputs, 4x HDMI outputs in a single 1RU chassis.
• 4K UHD 60Hz 4:4:4 Switching — Up to 4096x2160 at 60Hz RGB 4:4:4 (18 Gbps, 600MHz pixel clock).
• 5K Support — 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0 on HDMI output paths.
• Audio Embedding and De-embedding — 5-pole Phoenix connectors at all HDMI and DP I/O positions for analog audio integration.
• HDR10, HDR10+, and Dolby Vision — Full HDR passthrough on HDMI signal paths.
• Pixel Accurate Reclocking — Signal re-timing before output eliminates display compatibility issues.
• Advanced EDID Management — Forces required resolutions from mixed DP and HDMI sources.
• Front Panel Crosspoint Keys — Direct switching without software or external control system.
• Dolby TrueHD and DTS-HD Master Audio — HBR audio passthrough on embedded HDMI audio.
• No Adapters for DP Sources — Native DisplayPort 1.2 input handles DP, Mini DP, and Thunderbolt 3 connections directly.

Typical Applications

• Boardroom
• Conference room
• Government space
• Training room
• Broadcast studio

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Can a DP source be routed to an HDMI output and vice versa?

Yes. The MX2-8x8-DH-4DPio-A internally converts all signals to HDMI for crosspoint switching, then re-outputs to either DP or HDMI as selected. Any input can be routed to any output regardless of connector type.

What is the audio configuration at the DP ports?

Each DP I/O position has a dedicated 5-pole Phoenix connector for analog stereo balanced audio. The H and D designation in the feature table indicates audio positions: H = next to HDMI port, D = next to DP port. Four HDMI-side and four DP-side audio I/O are provided.

Does this model support 5K ultrawide displays?

Yes, on HDMI output paths: 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0. This supports ultrawide displays optimized for Microsoft Teams Front Row and similar collaboration layouts.

Are Thunderbolt 3 sources compatible?

Thunderbolt 3 ports output DisplayPort 1.2 video. Using a passive USB-C to DP adapter, Thunderbolt 3 laptops connect directly to the four DP inputs without active conversion.

Is HDR supported on the DisplayPort outputs?

HDR metadata passthrough is not supported on the DisplayPort outputs. HDR is supported on the HDMI output paths only.

Where can I purchase this matrix and get configuration support?

Available at creationnetworks.net. Creation Networks provides system design assistance, compatibility review, and post-sale technical support for all Lightware products.
