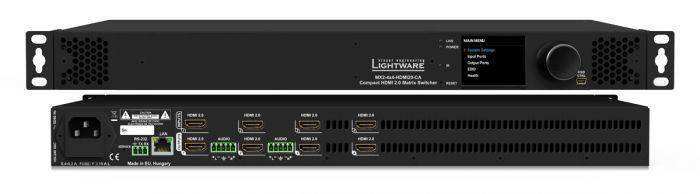

Lightware MX2-4x4-HDMI20-CA HDMI 2.0 Compatible Full 4K Matrix Switcher - 91310061

Product Overview

The Lightware MX2-4x4-HDMI20-CA is a compact, fixed-installation HDMI 2.0 standalone matrix switcher providing a 4x4 crosspoint for 4K UHD@60Hz 4:4:4 uncompressed video at up to 18 Gbps. It is specified for conference rooms, meeting rooms, and corporate offices where silent operation, compact 1U rack form, and HDMI 2.0 signal quality are priorities. Two de-embedding audio outputs with adjustable volume allow connection to amplifiers and audio systems without external audio processing hardware.

Product Description

The MX2-4x4-HDMI20-CA routes four HDMI 2.0 inputs to four HDMI 2.0 outputs in a fully non-blocking 4x4 architecture at 18 Gbps per port, supporting resolutions up to 4096x2160@60Hz at RGB 4:4:4 with a 600 MHz pixel clock. HDCP 2.2 and HDCP 1.4 compliance with automatic cross-conversion handles the full range of current source and display HDCP versions without manual configuration. Two balanced 5-pole Phoenix audio outputs adjacent to the HDMI output ports provide de-embedded stereo audio for amplifiers or audio systems, with adjustable output volume. HDR and Low Latency Dolby Vision pass through in the HDMI signal for connected HDR displays. High bitrate audio — including Dolby Atmos, TrueHD, and DTS-HD — passes through the HDMI outputs without decoding. The unit has no front panel buttons, relying on the front panel LCD menu and rear Ethernet, RS-232 (Phoenix), and USB (mini) control interfaces for operation. This makes it suitable for rack installations where the front face is not accessible to end users. The CA (Corporate Architecture) designation indicates a fixed-installation product without rental/staging accessories.

Key Features

• 4x4 fully non-blocking HDMI 2.0 matrix — Routes any of four HDMI 2.0 inputs to any combination of four outputs simultaneously at 18 Gbps per port.
• 4K UHD@60Hz RGB 4:4:4 at 18 Gbps — Full 4K at the highest uncompressed color fidelity; no subsampling required.
• HDCP 2.2 and 1.4 with cross-conversion — Automatically cross-converts between HDCP versions; no manual HDCP configuration required.
• HDR and Low Latency Dolby Vision — Passes HDR and LLDV metadata in the HDMI 2.0 signal to compatible displays.
• Two balanced audio de-embedding outputs — 5-pole Phoenix stereo outputs with adjustable volume for amplifier and audio system connection.
• High bitrate audio pass-through — Dolby Atmos, TrueHD, and DTS-HD Master Audio pass through HDMI outputs without decoding.
• No front panel buttons — Clean front panel suitable for rack installations not requiring direct user access; LCD menu for status.
• Silent operation — No cooling fans; suitable for quiet meeting room and office environments.
• Compact 1U form factor — 442mm wide with removable rack ears for rack or furniture mounting.
• Ethernet, RS-232, and USB control — Standard control interfaces for integration with third-party control systems.
• Advanced EDID Management — Per-port EDID management for source resolution compliance.
• HDMI 2.0, 1.4, and DVI 1.0 compliant — Accepts sources from all HDMI versions and DVI devices.

Typical Applications

• Conference room
• Boardroom
• Training room
• All-hands room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the MX2-4x4-HDMI20-CA have front panel input/output selection buttons?

No. This model has no front panel buttons. Routing is controlled via Ethernet, RS-232, USB, or the front panel LCD menu. It is designed for rack installations where user-accessible buttons are not needed or desired.

How is audio de-embedding configured?

The two balanced 5-pole Phoenix audio outputs de-embed stereo audio from the HDMI output signal. Volume is adjustable via the Lightware Device Controller software or control system commands.

Does it support Dolby Atmos pass-through?

Yes. Dolby Atmos, TrueHD, and DTS-HD Master Audio are passed through the HDMI outputs without decoding, maintaining high-bitrate audio to compatible AV receivers or displays.

Is the MX2-4x4-HDMI20-CA fanless?

Yes. The unit uses passive cooling with no fans, making it suitable for quiet meeting room and office environments.

What HDCP versions are supported?

Both HDCP 2.2 and HDCP 1.4 are supported with automatic cross-conversion between versions, so mixed source and display HDCP version combinations are handled without manual configuration.

Can this unit be controlled by Crestron or AMX?

Yes. The RS-232 and Ethernet control interfaces support integration with Crestron, AMX, and other standard third-party control systems using the Lightware control protocol.
