Lightware MX2-32x32-DH-16DPi-A-R Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports - 91310070

Product Overview

The Lightware MX2-32x32-DH-16DPi-A-R is a standalone 4K matrix switcher designed for installations that need to route both DisplayPort 1.2 and HDMI 2.0 sources without adapters, dongles, or signal conversion hardware at the source. Part of the MX2 DH series, this mixed DisplayPort and HDMI matrix router accepts 16 DisplayPort 1.2 inputs and 16 HDMI 2.0 inputs, routing all signals through 32 HDMI 2.0 outputs at full 4K UHD resolution and 60Hz with RGB 4:4:4 colorspace. The R-type chassis provides dual redundant power via Neutrik Powercon True1 connectors alongside reinforced RS-232 and Ethernet ports, making it suitable for fixed installations in enterprise and broadcast environments where power continuity is mandatory. Audio embedding and de-embedding is supported on dedicated Phoenix analog I/O ports, consolidating video and audio routing within a single 8RU unit.

Product Description

The MX2-32x32-DH-16DPi-A-R addresses a common integration challenge: production environments and control rooms increasingly deploy a mix of DisplayPort workstations and HDMI sources, and accommodating both signal types typically requires separate hardware or source-side adapters that can introduce compatibility and reliability issues. The MX2 DH series eliminates this by accepting DisplayPort 1.2 signals natively on 16 dedicated input ports, converting them internally to HDMI for matrix management and output. DisplayPort sources that exceed the HDMI 2.0 bandwidth ceiling of 18 Gbps are automatically down-converted to 4:2:2 while maintaining bit depth, which preserves HDR transmission capability even for high-bandwidth DP sources. The unit is fully HDMI 2.0 compliant on all 32 outputs, supports HDCP 2.3 and HDCP 1.4 with cross-conversion, and carries all current high-bitrate audio and HDR formats including Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, Dolby Vision, and HDR. Lightware's Pixel Accurate Reclocking and Advanced EDID Management are included and configurable via the built-in web interface. The unit also supports 5K resolution at 5120x2160 via HDMI 2.0 for ultrawide display environments.

Important compatibility notes: DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync, and FreeSync are not supported on DisplayPort inputs. HDR output on DisplayPort outputs is also not supported — all outputs are HDMI 2.0 only. The matrix identifies itself to connected DP sources as a DP-to-HDMI converter; DP input signals at 3840x2160 4:4:4 RGB 10-bit are converted to either 3840x2160 4:2:2 YCbCr 10-bit or 3840x2160 4:4:4 RGB 8-bit at the input stage.

Key Features

• Mixed DisplayPort 1.2 and HDMI 2.0 Inputs — Accepts 16 native DP 1.2 and 16 HDMI 2.0 inputs without source-side adapters or dongles.
• 32x32 HDMI 2.0 Output Matrix — All 32 outputs are HDMI 2.0 at 18 Gbps per port, supporting full 4K UHD at 60Hz across the full output count.
• 4K UHD at 60Hz RGB 4:4:4 — Supports resolutions up to 4096x2160 at 60Hz with full colorspace and up to 600 MHz pixel clock.
• 5K Resolution Support — Handles 5120x2160 HDMI 2.0 at 30Hz 4:4:4 or 60Hz 4:2:0 for ultrawide or simulation displays.
• Automatic Bandwidth Down-Conversion — DP sources exceeding 18 Gbps are converted to 4:2:2 while maintaining bit depth, preserving HDR capability.
• HDR and Dolby Vision Support — Full HDR and Low Latency Dolby Vision passthrough on HDMI outputs.
• High-Bitrate Audio — Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and 3D audio formats supported in the HDMI stream.
• Audio Embedding and De-embedding — Analog Phoenix audio I/O ports on ports 1–16 (inputs) and ports 1–8 and 33–40 (outputs) for signal-level audio breakout and injection.
• HDCP 2.3 and 1.4 with Cross-Conversion — Handles mixed HDCP source and display environments with automatic key caching and per-port management.
• Pixel Accurate Reclocking — Eliminates signal jitter on all outputs regardless of source cable length or quality.
• Advanced EDID Management — Per-port EDID configuration accessible through the built-in web interface without additional software.
• Zero Frame Delay Switching — Instantaneous crosspoint switching with no latency introduced, suitable for live production environments.

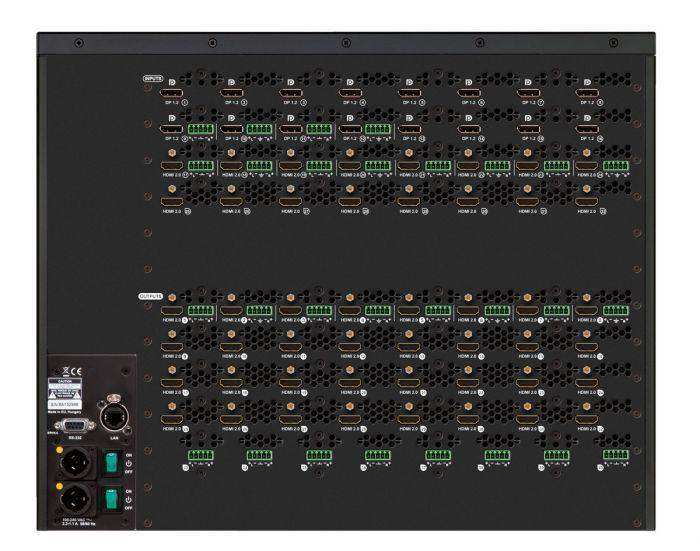

• Dual Redundant R-Type Power — Two independent Neutrik Powercon True1 connectors (110/220V) with reinforced RS-232 and Ethercon Ethernet ports.

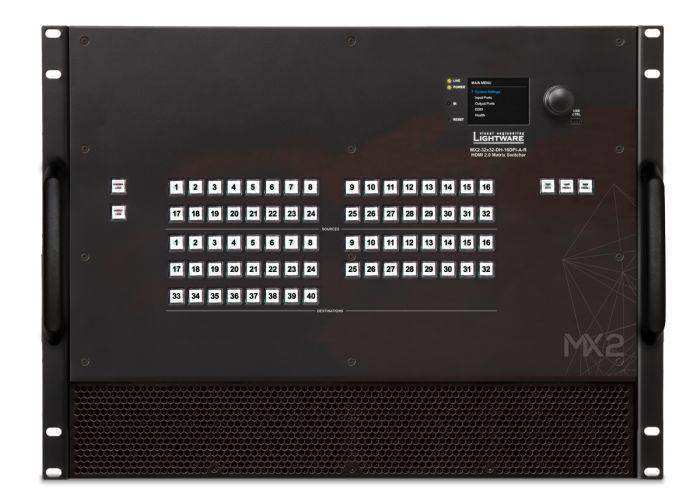

• Front Panel Crosspoint Control — Direct input selection buttons on the front panel for manual routing without a network connection.

Typical Applications

• Enterprise boardrooms and executive conference rooms with mixed DP and HDMI source environments
• Broadcast production control rooms with workstation (DisplayPort) and camera/playback (HDMI) signal mixing
• Government command and control facilities requiring redundant power and mixed signal routing
• Training rooms and all-hands spaces with high-density PC source connections
• Operation centers combining workstation DP outputs with HDMI display and video wall infrastructure
• Auditoriums and multi-purpose rooms with complex source and display counts
• Commercial meeting spaces requiring 4K signal integrity across both display connection standards

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Do I need DisplayPort adapters or active cables to connect DP sources to the MX2-32x32-DH-16DPi-A-R?

No. The unit accepts DisplayPort 1.2 signals directly on 16 dedicated DP input ports using standard DisplayPort cables. No adapters, dongles, or active conversion cables are required at the source.

Can DisplayPort sources output HDR content through this matrix?

HDR transmission is preserved when DP source signals exceed HDMI 2.0 bandwidth — the unit automatically converts the signal to 4:2:2 while maintaining bit depth to allow HDR metadata to pass through. Note that the outputs are HDMI 2.0 only; there are no DisplayPort outputs on this unit.

What is the difference between the DH and standard MX2 Series models?

The DH (Dual-Head / Dual-signal) designation indicates that the unit supports both DisplayPort and HDMI inputs natively. Standard MX2 models (such as the MX2-48x48-HDMI20-A-R) accept HDMI inputs only. The DH series is specifically designed for mixed-source environments where both DP and HDMI sources must be routed without conversion hardware at each source device.

What audio configurations are supported?

The MX2-32x32-DH-16DPi-A-R provides 16 Phoenix analog audio inputs (8x next to HDMI ports 1–16, 4x next to DP ports) and 16 Phoenix analog audio outputs (8x next to HDMI ports 1–8, 8x independent on ports 33–40). This allows audio to be embedded into or de-embedded from the HDMI stream at the matrix level for downstream analog distribution.

Is DP Multi-Stream Transport (MST) supported?

No. DP MST, Dual-mode DisplayPort (DP++), Adaptive-Sync, and FreeSync are not supported on the DisplayPort inputs. Each DP input port handles a single-stream source. Review source device capabilities before deploying this unit in environments where MST daisy-chaining is required.

How is the unit controlled in an installed AV system?

Control is available via Ethernet (TCP/IP), RS-232 D-sub 9-pole, and USB (Mini USB B). The built-in web interface provides full configuration and crosspoint management without additional software. Front-panel buttons allow direct input selection. The unit is compatible with Crestron, AMX, Extron, and other control systems communicating via IP or serial protocols.

Where can I purchase the Lightware MX2-32x32-DH-16DPi-A-R?

The MX2-32x32-DH-16DPi-A-R is available through Creation Networks at creationnetworks.net. We provide pre-sales technical consultation and integration support for complex mixed-signal AV projects.
