Lightware MX2-24x24-DH-24DPio-A-R Standalone matrix switcher series - 91310073

Product Overview

The Lightware MX2-24x24-DH-24DPio-A-R is a 24x24 standalone matrix switcher delivering 4K UHD video at 60Hz with full RGB 4:4:4 colorspace, supporting both DisplayPort 1.2 inputs and HDMI 2.0 inputs and outputs in a single chassis. Designed for high-density fixed installations, this model provides 24 HDMI outputs alongside 24 DisplayPort outputs, making it one of the most port-dense mixed-signal matrix options in the MX2 DH series. The R-type designation indicates dual redundant power supplies with Neutrik Powercon True1 connectors, ensuring continuous operation in mission-critical environments such as command and control centers, broadcast facilities, and large-scale corporate AV infrastructure. Explore the full Lightware product line at creationnetworks.net.

Product Description

The MX2-24x24-DH-24DPio-A-R is the largest model in the Lightware MX2 DH standalone series with mixed DisplayPort and HDMI I/O, supporting 24 HDMI 2.0 inputs, 24 DisplayPort 1.2 inputs, 24 HDMI 2.0 outputs, and 24 DisplayPort 1.2 outputs. All ports operate at up to 18 Gbps, supporting resolutions up to 4096x2160 at 60Hz in RGB or YCbCr 4:4:4 with a 600 MHz pixel clock. The device also supports 5K 21:9 ultrawide formats at 5120x2160 via HDMI 2.0 at 30Hz 4:4:4 or 60Hz 4:2:0, extending its applicability to simulation, engineering visualization, and ultra-wide display environments. DisplayPort input signals are internally converted to HDMI for signal management; where the source signal exceeds HDMI 2.0 bandwidth, the unit performs lossless colorspace conversion to 4:2:2 while preserving bit depth for HDR compatibility. Audio embedding and de-embedding is supported at dedicated analog audio I/O ports, with high-bitrate format support including Dolby Atmos, TrueHD, and DTS-HD. The MX2-24x24-DH-24DPio-A-R occupies 8RU and is rack mountable with removable ears.

Key Features

• 24 DisplayPort 1.2 Inputs + 24 HDMI 2.0 Inputs — Accepts native DisplayPort sources without adapters or dongles alongside HDMI 2.0 sources in a single frame.
• 24 HDMI 2.0 Outputs + 24 DisplayPort 1.2 Outputs — The highest output port density in the MX2 DH series, covering both DP and HDMI display ecosystems.
• 4K UHD 60Hz RGB 4:4:4 — Full 18 Gbps bandwidth per port supports uncompressed 4K at maximum refresh rate and colorspace without downsampling.
• 5K Ultrawide Support — Handles 5120x2160 HDMI 2.0 signals at 30Hz 4:4:4 or 60Hz 4:2:0 for Microsoft Teams Front Row, simulation, and visualization environments.
• HDR and Dolby Vision — Full HDR10 and Low Latency Dolby Vision support for content distribution in premium display installations.
• Audio Embedding and De-Embedding — 8 analog audio inputs and 24 analog audio outputs with support for Dolby Atmos, TrueHD, and DTS-HD Master Audio.
• HDCP 2.3 and HDCP 1.4 with Cross-Conversion — Manages mixed HDCP compliance versions across connected sources and displays without manual intervention.

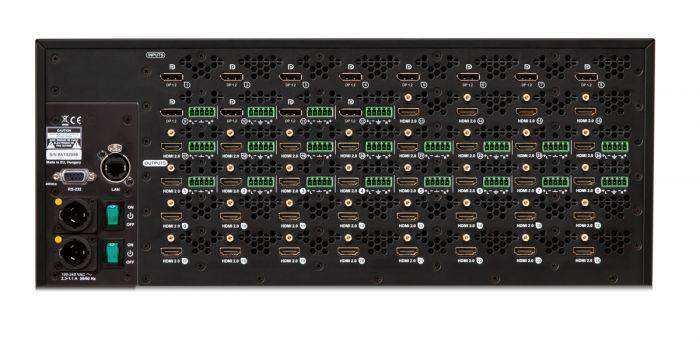

• Dual Redundant Power Supplies — Two independent Neutrik Powercon True1 connectors (110/220V auto-switching) with reinforced RS-232 and Ethernet ports for continuous uptime.
• Pixel Accurate Reclocking — Reconstructs pixel clock on every output port to eliminate jitter and maintain signal quality through the switching fabric.
• Advanced EDID Management — Lightware’s proprietary EDID engine ensures reliable source and display handshaking across all 48 I/O ports.

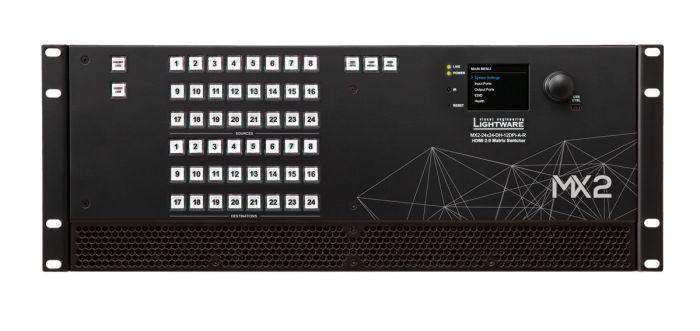

• Front-Panel Crosspoint Control — Physical keys on the front panel allow direct routing changes without software or network access.
• Built-In Web Interface — Browser-based configuration and monitoring accessible via EtherCON Ethernet connection, with Mini USB B for local control.

Typical Applications

• Command and control centers requiring high-density mixed DisplayPort and HDMI signal routing
• Broadcast studios distributing multiple 4K sources to production monitors and recording outputs
• Government and defense operations centers with continuous uptime requirements
• Corporate all-hands rooms and large conference rooms with multiple source types
• Auditorium and multi-purpose facilities managing high display counts
• Simulation and visualization environments using 5K ultrawide displays
• Training rooms requiring flexible source-to-display assignment at 4K resolution

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the MX2-24x24-DH-24DPio-A-R and the MX2-24x24-DH-12DPi-A-R?

The 24DPio model provides both DisplayPort inputs and DisplayPort outputs (24 DP in + 24 DP out + 24 HDMI out), while the 12DPi model has only 12 DisplayPort inputs and 24 HDMI outputs with no DisplayPort outputs. The 24DPio is appropriate when downstream displays or recording systems require native DisplayPort connectivity.

Do DisplayPort sources connect directly without adapters?

Yes. The MX2-24x24-DH-24DPio-A-R accepts DisplayPort 1.2 sources directly through its DP input ports without requiring dongles or active adapters. The device internally converts DP signals to HDMI for the switching fabric, then outputs to both HDMI and DP destinations.

What is the maximum resolution supported?

The device supports up to 4096x2160 at 60Hz with RGB or YCbCr 4:4:4 colorspace at a 600 MHz pixel clock, requiring 18 Gbps per port. It also supports 5K 21:9 ultrawide at 5120x2160 via HDMI 2.0 at 30Hz in 4:4:4 or 60Hz in 4:2:0 colorspace.

What does the R-type designation mean?

The R suffix indicates the device is equipped with dual redundant power supplies using independent Neutrik Powercon True1 connectors, along with reinforced RS-232 and Ethernet ports. This configuration is designed for mission-critical installations where power supply failure cannot cause system downtime.

Is HDR supported on DisplayPort outputs?

No. HDR is supported on HDMI 2.0 outputs only. DisplayPort outputs do not carry HDR metadata. Additionally, DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync, and FreeSync are not supported on this device.

What audio formats are supported for embedding and de-embedding?

The device supports Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, and 3D audio formats for both embedding into and de-embedding from the HDMI signal stream at dedicated analog audio I/O ports.

Can this device be controlled without a third-party control system?

Yes. The MX2-24x24-DH-24DPio-A-R includes a built-in web interface accessible via its EtherCON Ethernet port, allowing full configuration and crosspoint control from any browser on the same network. Front-panel keys also allow direct routing without any software or network dependency.
