Lightware MX2-24x24-DH-12DPi-R Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports - 91310067

Product Overview

The Lightware MX2-24x24-DH-12DPi-R is a 24-input, 24-output standalone matrix switcher supporting both DisplayPort 1.2 and HDMI 2.0 signals at full 4K UHD 60Hz resolution with RGB 4:4:4 color fidelity. Designed for large-scale fixed installations and rental/staging environments, this switcher eliminates the need for DP-to-HDMI adapters by accepting DisplayPort 1.2 sources directly on 12 dedicated input ports. With dual redundant power supplies featuring Neutrik Powercon True1 connectors and reinforced RS-232 and Ethernet ports, the MX2-24x24-DH-12DPi-R is built to operate in demanding production and operations center environments where downtime is not an option. Engineers specifying a 24x24 4K HDMI 2.0 matrix with DisplayPort inputs for a mixed-signal environment will find this unit purpose-built for that requirement.

Product Description

The MX2-24x24-DH-12DPi-R routes any of its 24 inputs—12 HDMI 2.0 and 12 DisplayPort 1.2—to any of its 24 HDMI 2.0 outputs simultaneously, using a non-blocking crosspoint architecture at 18 Gbps per port. DisplayPort sources are recognized natively; the device presents itself to the DP source as a DP-to-HDMI converter and handles the 4:4:4 to 4:2:2 downconversion where HDMI 2.0 bandwidth requires it, preserving bit depth and enabling HDR transmission. Proprietary Lightware technologies including Pixel Accurate Reclocking and Advanced EDID Management are embedded, with EDID storage for over 100 user-defined and factory preset profiles. The unit also supports HDMI 5K signal formats (5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0), making it suitable for ultrawide display deployments and collaboration platforms requiring expanded screen layouts.

Key Features

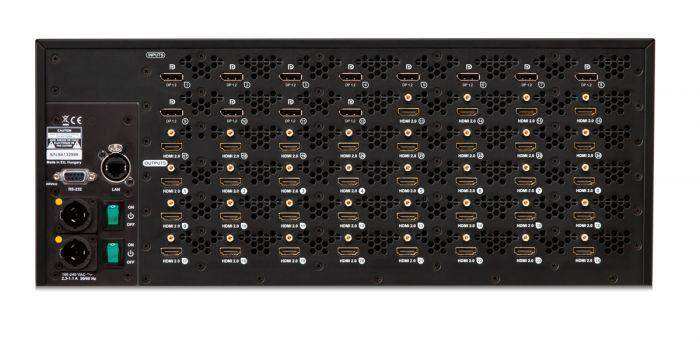

• Mixed DisplayPort 1.2 and HDMI 2.0 inputs — 12 DP and 12 HDMI inputs accepted natively, no dongles or adapters required
• 24x24 non-blocking crosspoint — any input routes to any or all outputs simultaneously at 18 Gbps per port
• 4K UHD 60Hz 4:4:4 — full RGB color fidelity up to 4096x2160 at 600 MHz pixel clock
• 5K signal support — 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0 for ultrawide display environments
• HDR and Dolby Vision — HDR transmission enabled via 4:2:2 downconversion on DP inputs where required
• High-bitrate audio — Dolby Atmos, TrueHD, DTS-HD Master Audio, and 3D audio pass-through
• HDCP 2.3 and 1.4 compliant — cross-conversion between HDCP versions supported
• Dual redundant power — two independent Neutrik Powercon True1 connectors, 110/220V
• Reinforced control connectors — rugged RS-232 (D-sub 9) and Neutrik Ethercon for rental and staging use
• Pixel Accurate Reclocking — proprietary signal conditioning on every output
• Advanced EDID Management — stores 100+ factory and user EDID profiles via built-in web interface

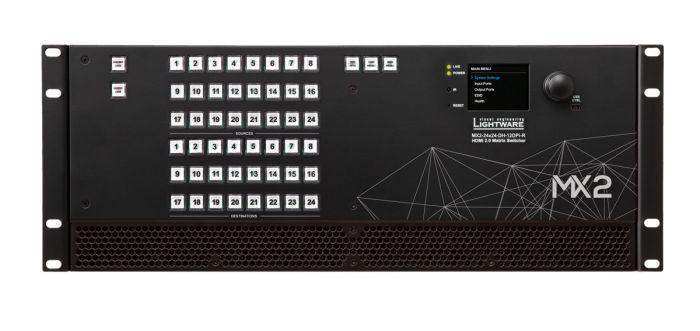

• 4RU rack-mountable — removable rack ears, front-panel crosspoint switching keys

Typical Applications

• Broadcast studio
• Government space / operations center
• All-hands room / large conference room
• Auditorium
• House of worship
• Rental and staging productions

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Can I connect a MacBook with Thunderbolt 3 directly to the DisplayPort inputs?

Thunderbolt 3 ports are electrically compatible with DisplayPort 1.2. A Thunderbolt 3 to DisplayPort cable will work with the MX2-24x24-DH-12DPi-R inputs. Note that DP Multi-Stream (MST) and Adaptive-Sync are not supported.

Does the unit pass HDR10 signals from DisplayPort sources?

Yes. HDR transmission is supported via 4:2:2 downconversion on DisplayPort inputs when the signal exceeds HDMI 2.0 bandwidth limits. Dolby Vision is also supported on HDMI inputs.

What control systems does this matrix support?

The MX2-24x24-DH-12DPi-R is controllable via RS-232, Ethernet (TCP/IP through the built-in web interface), and USB (mini USB B for direct LDC software connection). It integrates with Crestron, AMX, Extron, and other control systems via serial and IP protocols.

Is the power supply truly hot-swappable?

The unit ships with two independent Neutrik Powercon True1 mains connectors providing power redundancy. If one power feed is lost, the other maintains full operation. Contact your AV integrator regarding field serviceability specifics.

How does EDID management work on this unit?

Lightware's Advanced EDID Management stores over 100 factory-preset and user-defined EDID profiles. EDIDs can be assigned per input via the built-in web interface or LDC software, allowing sources to output the correct resolution without requiring display EDID readback.

What is the signal latency through the matrix?

Lightware MX2 series switchers add zero frame latency. Switching is instantaneous with no added frame or line-period delay, making this unit suitable for time-critical production and operations center workflows.

Where can I purchase the MX2-24x24-DH-12DPi-R?

The MX2-24x24-DH-12DPi-R is available directly from Creation Networks at creationnetworks.net.
