Lightware MX2-16x8-HDMI20-Audio-R HDMI 2.0 standalone matrix switcher - 91310083

Product Overview

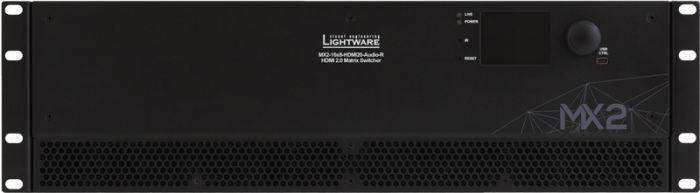

The Lightware MX2-16x8-HDMI20-Audio-R is a 16-input, 8-output standalone HDMI 2.0 matrix switcher combining full 4K60 4:4:4 video routing with dedicated analog audio embedding and de-embedding ports, plus the dual redundant Neutrik Powercon power supplies of the R-type platform. The asymmetric 16x8 crosspoint serves installations where more sources than destinations are typical—such as media production rooms, control rooms, and multi-source presentation environments routing to a smaller set of displays or processors. Four analog stereo inputs embed audio into the HDMI stream; eight audio outputs (four adjacent to HDMI + four independent) provide de-embedded LPCM audio to amplifiers and DSPs independently of video routing. The R-type rugged connectors make this unit suitable for touring productions as well as fixed installations.

Product Description

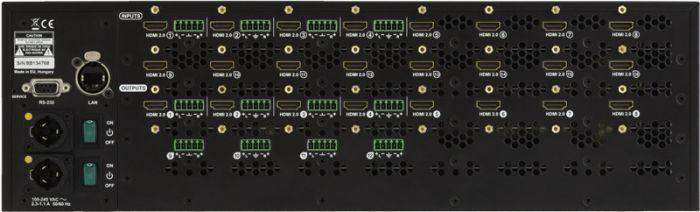

The MX2-16x8-HDMI20-Audio-R uses a 16x8+4 non-blocking crosspoint at 18 Gbps per port, routing any of 16 HDMI 2.0 inputs to any of 8 HDMI 2.0 outputs simultaneously. All ports pass 4K at 60Hz in 4:4:4 format with Dolby TrueHD, DTS-HD Master Audio, and 3D audio. HDMI 5K (5120x2160), HDR, and Dolby Vision are supported. The audio section provides 4 stereo balanced input ports (5-pole Phoenix, adjacent to HDMI inputs) for embedding and 8 audio output ports (4 adjacent to HDMI outputs + 4 independent, 5-pole Phoenix) for de-embedding LPCM from any input. Dual Neutrik Powercon mains connectors, Neutrik Ethercon, and rugged D-sub 9 RS-232 are standard on the R-type build. Control via Ethernet, RS-232, and USB.

Key Features

• 16x8 non-blocking HDMI 2.0 matrix — 16 inputs to 8 outputs, 18 Gbps per port, 4K60 4:4:4
• 4 analog audio inputs — stereo balanced 5-pole Phoenix, adjacent to HDMI input ports
• 8 analog audio outputs — 4 adjacent to HDMI + 4 independent, 5-pole Phoenix, de-embedded LPCM
• 4K UHD 60Hz 4:4:4 — up to 4096x2160 at 600 MHz pixel clock
• 5K signal support — 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0
• HDR and Dolby Vision — pass-through on all HDMI ports
• Dolby TrueHD and DTS-HD Master Audio — high-bitrate embedded audio
• HDCP 2.3 and 1.4 — cross-conversion compliant
• Dual redundant power (R-type) — two Neutrik Powercon connectors, 110/220V
• Neutrik Ethercon and rugged RS-232 — reinforced for touring and permanent install
• Zero frame latency — instantaneous switching
• 3RU rack-mountable — removable rack ears

Typical Applications

• Broadcast studio
• Conference room
• Training room
• Rental and staging
• Government space
• All-hands room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Why would I choose a 16x8 matrix instead of a 16x16?

When a project has significantly more sources than destinations—for example, 12-16 playback devices, computers, and cameras feeding 6-8 displays or processing units—the 16x8 configuration reduces cost while maintaining full routing flexibility. Every input can still reach every output; only the total number of simultaneous output paths differs.

Can any input be routed to any output on the 16x8 model?

Yes. The crosspoint is fully non-blocking: any of the 16 inputs can be routed to any or all of the 8 video outputs and 8 audio outputs simultaneously.

What are the 4 independent audio outputs used for?

The 4 independent audio output connectors carry de-embedded LPCM audio from any input you assign via software, independent of which video source is routed to the adjacent HDMI output. This enables audio-follows-video configurations or fully breakaway audio zone routing.

Where can I purchase the MX2-16x8-HDMI20-Audio-R?

Available directly from Creation Networks at creationnetworks.net.
