Lightware MX2-16x16-HDMI20-R HDMI 2.0 standalone matrix switcher - 91310052

Product Overview

The Lightware MX2-16x16-HDMI20-R is a 16-input, 16-output standalone HDMI 2.0 matrix switcher with dual redundant Neutrik Powercon power supplies and reinforced RS-232 and Ethernet connectors. It provides full 4K UHD 60Hz 4:4:4 routing across all 32 ports with zero frame latency, making it the direct choice for rental and staging productions or mission-critical fixed installations that require 16x16 HDMI capacity with power redundancy but do not need analog audio breakout. AV system designers who need a 16x16 4K HDMI 2.0 matrix switcher with redundant power for touring or permanent operations environments will find the MX2-16x16-HDMI20-R sized and specified for that requirement.

Product Description

The MX2-16x16-HDMI20-R routes any of its 16 HDMI 2.0 inputs to any of its 16 HDMI 2.0 outputs using a non-blocking crosspoint at 18 Gbps per port. All ports transmit 4K at 60Hz in 4:4:4 format with Dolby TrueHD, DTS-HD Master Audio, and 3D audio pass-through. HDMI 5K formats (5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0), HDR, and Dolby Vision are supported. The R-type build adds Neutrik Powercon True1 dual mains connectors and Neutrik Ethercon with rugged D-sub 9 RS-232—all designed for repeated connection and disconnection in touring environments. Control is via Ethernet, RS-232, and USB (mini USB B). Advanced EDID Management and Pixel Accurate Reclocking are standard.

Key Features

• 16x16 non-blocking HDMI 2.0 matrix — 18 Gbps per port, any input to any output
• 4K UHD 60Hz 4:4:4 — up to 4096x2160 at 600 MHz pixel clock, uncompressed
• 5K signal support — 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0
• Zero frame latency — instantaneous switching, no added frame delay
• HDR and Dolby Vision — pass-through on all ports
• Dolby TrueHD and DTS-HD Master Audio — high-bitrate audio pass-through
• HDCP 2.3 and 1.4 — cross-conversion between versions

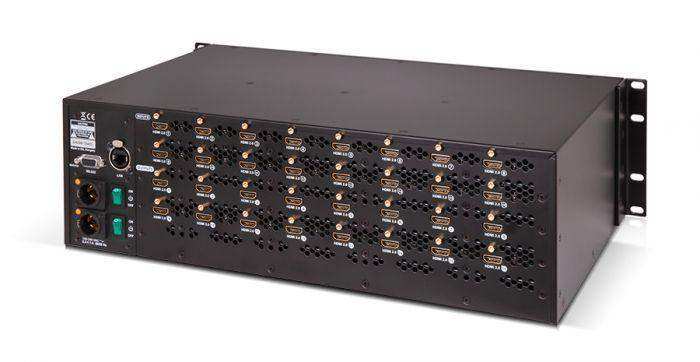

• Dual redundant power (R-type) — two Neutrik Powercon True1 connectors, 110/220V
• Neutrik Ethercon and rugged RS-232 — reinforced D-sub 9 for touring
• HDMI 2.0, 1.4, DVI 1.0 compatible — broad source acceptance
• Advanced EDID Management — 100+ EDID profiles onboard

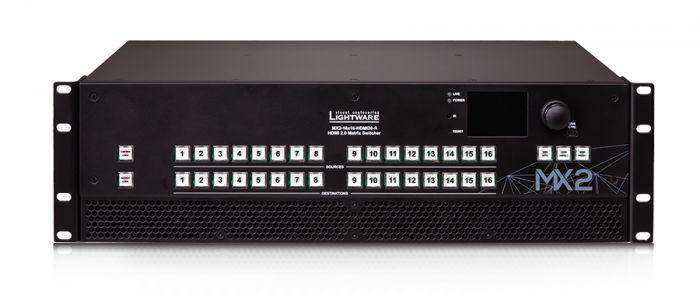

• 3RU rack-mountable — removable rack ears, front-panel crosspoint keys

Typical Applications

• Rental and staging productions
• Broadcast studio
• Government space / operations center
• All-hands room
• Auditorium
• House of worship

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does the MX2-16x16-HDMI20-R differ from the MX2-16x16-HDMI20?

The R version adds dual Neutrik Powercon True1 mains connectors for redundant power, plus rugged Neutrik Ethercon and reinforced D-sub 9 RS-232. The base model uses a standard IEC power connector and RJ45/Phoenix data connectors. Both have identical video and audio routing capabilities.

Does this unit include analog audio ports?

No. This model handles only HDMI-embedded audio (TrueHD, DTS-HD, Dolby Atmos pass-through). For analog audio embedding and de-embedding, specify the MX2-16x16-HDMI20-Audio-R.

Can two power feeds be connected simultaneously from different circuits?

Yes. The two Neutrik Powercon True1 connectors accept power from independent sources. If one feed fails, the other maintains full operation. This is the standard power redundancy configuration for rental and critical installations.
