Lightware MX2-16x16-HDMI20-Audio-R HDMI 2.0 standalone matrix switcher - 91310054

Product Overview

The Lightware MX2-16x16-HDMI20-Audio-R is a 16-input, 16-output standalone HDMI 2.0 matrix switcher that combines full 4K60 4:4:4 signal routing with dedicated analog audio embedding and de-embedding, and adds the dual redundant Neutrik Powercon power supplies of the R-type platform. It is the most specified variant in the 16x16 HDMI standalone line for installations requiring analog audio breakout and operational reliability in high-demand environments. Four input ports accept analog stereo audio for embedding into the HDMI stream; eight output ports—four adjacent to HDMI outputs and four independent—provide de-embedded stereo LPCM audio for DSPs, amplifiers, and audio systems. This unit is suited for boardrooms, large conference rooms, houses of worship, and broadcast environments where both signal routing integrity and audio zone management are required.

Product Description

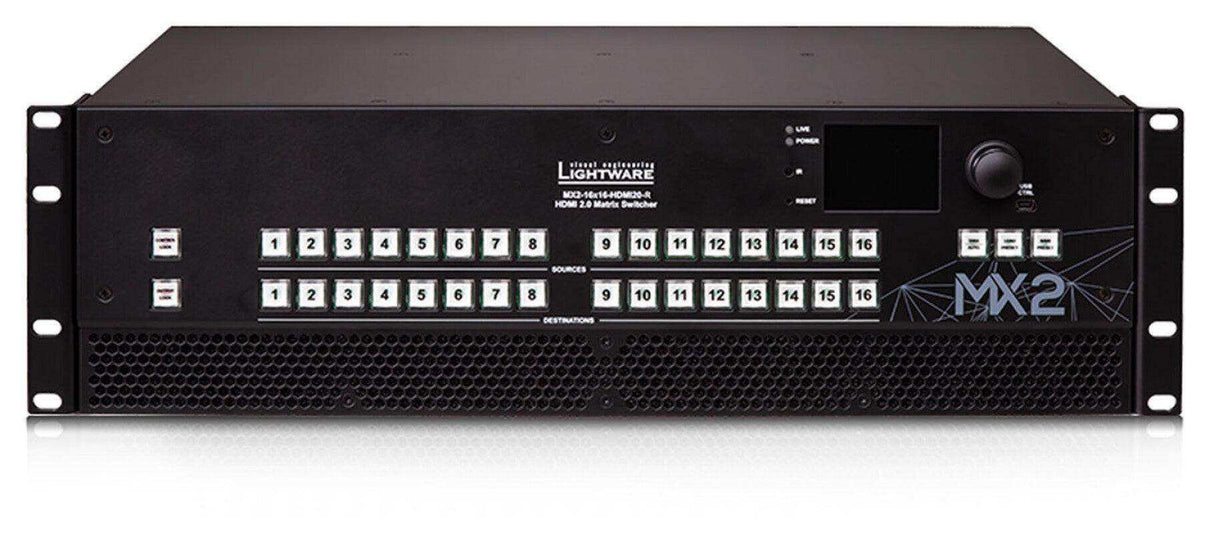

The MX2-16x16-HDMI20-Audio-R uses a 16x16+4 non-blocking crosspoint (16 HDMI outputs plus 4 additional audio-only outputs) at 18 Gbps per port. All 16 HDMI 2.0 inputs and outputs pass 4K at 60Hz in 4:4:4 format with Dolby TrueHD, DTS-HD Master Audio, and 3D audio support embedded in the HDMI stream. The unit also handles 5K signal formats, HDR, and Dolby Vision. The R-type designation means dual Neutrik Powercon mains connectors and Neutrik Ethercon with reinforced D-sub 9 RS-232 for rental and staging suitability. Control is via Ethernet (Neutrik Ethercon), RS-232, and USB. Front-panel keys allow direct crosspoint selection.

Key Features

• 16x16 non-blocking HDMI 2.0 matrix — 18 Gbps per port, 4K60 4:4:4 on all ports
• Analog audio embedding — 4 stereo balanced input ports (5-pole Phoenix) adjacent to HDMI inputs
• Analog audio de-embedding — 8 outputs: 4 adjacent to HDMI + 4 independent balanced ports
• 4K UHD 60Hz 4:4:4 — up to 4096x2160 at 600 MHz pixel clock
• 5K signal support — 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0
• HDR and Dolby Vision — pass-through on all HDMI ports
• Dolby TrueHD and DTS-HD Master Audio — high-bitrate embedded audio pass-through
• Dual redundant power (R-type) — two Neutrik Powercon connectors, 110/220V
• Rugged Neutrik Ethercon and RS-232 — reinforced connectors for rental/staging
• HDCP 2.3 and 1.4 — cross-conversion compliant
• Zero frame latency — instantaneous switching, no added delay
• 3RU rack-mountable — removable rack ears

Typical Applications

• Boardroom
• Conference room
• House of worship
• Broadcast studio
• Rental and staging
• All-hands room

Technical Specifications

Competitor Comparison

Frequently Asked Questions

How does the 16x16+4 routing architecture work?

The matrix has 16 HDMI 2.0 video outputs plus 4 additional audio-only output ports. The 4 independent audio outputs can carry de-embedded stereo LPCM audio from any input, routing audio to a DSP or amplifier independently of the video path.

What is the audio connector type?

All analog audio connections use 5-pole Phoenix connectors (Phoenix Combicon, 3.5mm pitch, type MC 1.5/5-ST-3.5). Mating plugs are supplied.

What distinguishes this from the non-R MX2-16x16-HDMI20-Audio?

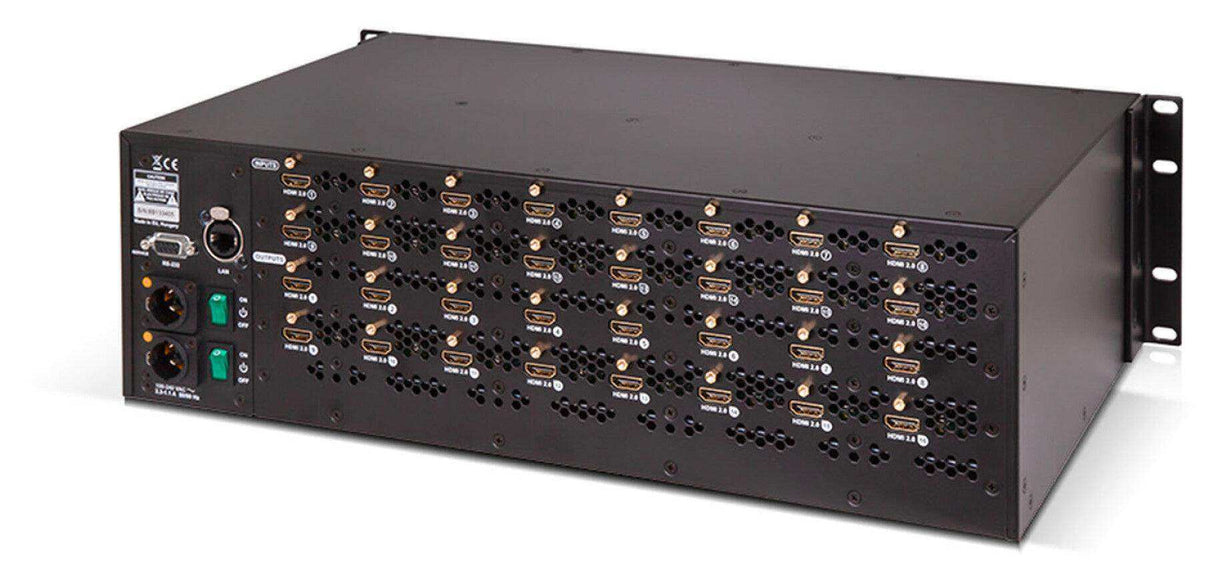

The R variant adds dual Neutrik Powercon mains connectors for redundant power and uses Neutrik Ethercon and rugged D-sub 9 RS-232 connectors. The non-R model uses standard IEC power and RJ45/Phoenix connectors.

Is this unit suitable for government or secure AV installations?

The standard MX2-16x16-HDMI20-Audio (non-R) carries TEMPEST SDIP27 Level B certification for classified environments. For that use case, specify the non-R variant. This R-type unit is optimized for rental and demanding commercial fixed installations.

Where can I purchase the MX2-16x16-HDMI20-Audio-R?

Available directly from Creation Networks at creationnetworks.net.
