Product Overview
The Lightware MX2-16x16-DH-8DPi-A-R is a 16-input, 16-output standalone matrix switcher that accepts both DisplayPort 1.2 and HDMI 2.0 sources natively, adds dedicated analog audio embedding and de-embedding ports, and delivers all of this with dual redundant Neutrik Powercon power supplies. With 8 DisplayPort 1.2 inputs and 8 HDMI 2.0 inputs routed to 16 HDMI 2.0 outputs, this unit covers the widest range of signal types in a 16x16 standalone configuration. It is purpose-built for boardrooms, training centers, and broadcast facilities where laptop-heavy environments generate a mix of DP and HDMI sources alongside a requirement for analog audio breakout to DSPs or amplifiers. The R-type rugged connectors make it equally suitable for touring and rental applications.
Product Description

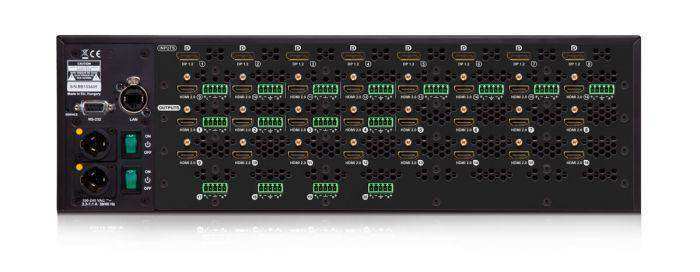

The MX2-16x16-DH-8DPi-A-R operates at 18 Gbps per port across all 16 inputs and 16 outputs, with DisplayPort 1.2 inputs converted internally to HDMI for signal management through the crosspoint. Input signals exceeding HDMI 2.0 bandwidth are downconverted to 4:2:2 YCbCr while preserving bit depth, enabling HDR transmission. The analog audio section provides 8 HDMI-adjacent audio input connectors for embedding (4xH format) and 4 HDMI-adjacent plus 4 independent audio output connectors for de-embedding (4xH + 4xA). The unit supports 5K signal formats, HDR, Dolby Vision, Dolby TrueHD, DTS-HD Master Audio, and 3D. DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync, FreeSync, and HDR on DisplayPort outputs are not supported.
Key Features
- Mixed DP 1.2 and HDMI 2.0 inputs — 8 DisplayPort and 8 HDMI inputs, no adapters required
- Analog audio embedding — 8 HDMI-adjacent audio input ports (4xH format, 5-pole Phoenix)
- Analog audio de-embedding — 4 HDMI-adjacent + 4 independent audio output ports (4xH + 4xA)
- 16x16 non-blocking crosspoint — 18 Gbps per port, any input to any output
- 4K UHD 60Hz 4:4:4 — up to 4096x2160 at 600 MHz pixel clock
- 5K signal support — 5120x2160 at 30Hz 4:4:4 or 60Hz 4:2:0
- HDR and Dolby Vision — HDR via 4:2:2 downconversion on DP inputs
- Dual redundant power (R-type) — two Neutrik Powercon True1 connectors, 110/220V
- Rugged Neutrik Ethercon and RS-232 — D-sub 9-pole, reinforced for rental use
- HDCP 2.3 and 1.4 — cross-conversion compliant

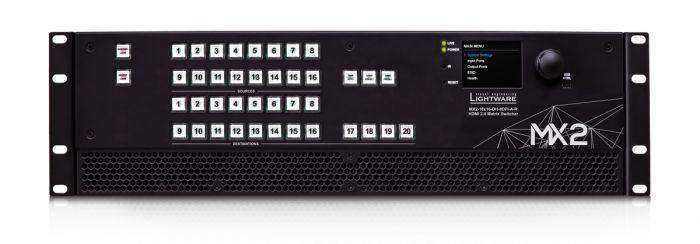

- 3RU rack-mountable — removable rack ears, front-panel crosspoint keys
Typical Applications
- Boardroom
- Conference room
- Training room
- Broadcast studio
- Rental and staging productions
- Government space
Technical Specifications
| Specification | Value |
|---|---|
| Video inputs | 8x HDMI 2.0, 8x DisplayPort 1.2 |
| Video outputs | 16x HDMI 2.0 |
| Audio inputs | 8x (4xH adjacent to HDMI), 5-pole Phoenix |
| Audio outputs | 8x (4xH adjacent + 4xA independent), 5-pole Phoenix |
| Routing | 16x16 non-blocking |
| Data rate per port | 18 Gbps |
| Max resolution | 4096x2160 @ 60Hz RGB 4:4:4 (600 MHz pixel clock) |
| 5K support | 5120x2160 @ 30Hz 4:4:4 or 60Hz 4:2:0 |
| HDCP | 2.3 and 1.4 with cross-conversion |
| Power | 2x Neutrik Powercon True1, 110/220V |
| Serial control | D-sub 9-pole (RS-232) |
| Ethernet | Neutrik Ethercon |
| USB | Mini USB B |
| Form factor | 3RU, rack-mountable, removable rack ears |
| SKU | 91310068 |
Competitor Comparison
| Criteria | Lightware MX2-16x16-DH-8DPi-A-R | Crestron DM-MD32X32 | Extron DXP 88 HDMI | Kramer VS-6464DN-EM |
|---|---|---|---|---|
| Matrix size | 16x16 | 32x32 | 8x8 | 64x64 |
| Native DisplayPort inputs | Yes — 8x DP 1.2 | No — via card modules | No | No |
| Analog audio embed/de-embed | Yes — 8 in / 8 out | Via audio cards | No | No |
| Max resolution | 4K60 4:4:4 + 5K | 4K60 | 4K30 | 4K60 |
| Redundant power | Yes — dual Neutrik Powercon | Yes | No | Yes |
| Zero latency | Yes | No | No | No |
| HDCP 2.3 | Yes | Yes | No | Yes |
| Standalone form factor | Yes — 3RU | No | Yes | No |
Frequently Asked Questions
- Does the MX2-16x16-DH-8DPi-A-R accept Thunderbolt 3 sources?
- Thunderbolt 3 is electrically compatible with DisplayPort 1.2. A Thunderbolt 3 to DisplayPort cable will connect to the DP inputs. Note that DP MST, Adaptive-Sync, and FreeSync are not supported, and HDR on DisplayPort outputs is not available on this unit.
- How are the audio inputs and outputs arranged?
- The 8 audio input connectors are positioned adjacent to HDMI input ports (4xH format). Of the 8 audio output connectors, 4 are adjacent to HDMI output ports and 4 are independent connectors, allowing de-embedded audio to be sent to any destination regardless of video routing.
- What is the 4:2:2 downconversion used for on DP inputs?
- When a DisplayPort source sends a signal with bandwidth exceeding HDMI 2.0 limits (e.g., 4K60 RGB 4:4:4 10-bit), the matrix downconverts to 4:2:2 YCbCr while preserving bit depth. This allows HDR metadata to pass through on HDMI outputs even when DP sources exceed the 18 Gbps HDMI 2.0 limit.
- Can this unit be used in both rental and permanent install?
- Yes. The R-type designation adds rugged Neutrik Powercon True1 power connectors and reinforced Ethercon and D-sub 9 RS-232 connectors for touring use. The same unit works equally well in permanent rack installations.
- Where can I purchase the MX2-16x16-DH-8DPi-A-R?
- Available directly from Creation Networks at creationnetworks.net.
