Lightware MX-TPS2-OB-AP TPS Output Board with PoE Option - 91130043
Roll over image to zoom in Click on image to zoom
Lightware MX-TPS2-OB-AP TPS Output Board with PoE Option - 91130043
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware MX-TPS2-OB-AP TPS Output Board with PoE Option - 91130043

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91130043
No reviews
Price:
$6,490.00

Description

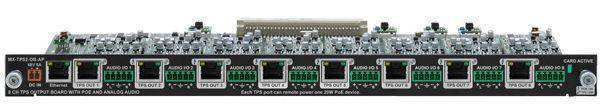

MX-TPS2-OB-P the 8 channel twisted pair output board provides HDMI 1.4, audio, Ethernet and RS-232 transmission on a single CAT5/6/7 cable up to 100m in HDBaseTTM and 170m distance in Long reach mode (maximal resolution is Full HD 1080p in Long reach mode). Resolutions up to 4K and 48-bit color depth are handled with all standard audio formats as well as 120Hz 3D signals. The board offers bi-directional RS-232 and Ethernet transmission (each board has a 10/100 uplink connector for the Ethernet network connection) and remote powering option for the TPS extenders available with the PoE add-on. The built-in PoE injector function requires the supplied PSU-48vp external power source to be connected directly to the board. The output board is available with audio add-ons: digital S/PDIF or analog stereo connectors are available for advanced audio functions (HDMI embedded audio signals are managed by the board). The MX-TPS2-OB-P without the digital or analog audio option also handles HDMI embedded audio. The board is compatible with deep color, Dolby TrueHD and DTS-HD audio and features PCM audio sample rate conversion. Advanced professional functions such as HDCP enable/disable mode, Pixel Accurate Reclocking, Advanced EDID Management and Frame Detector are integrated providing professional set-up and operation.

  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Built-in PoE injector* for remote powering extenders
  • Optional digital or analog audio embedding and de-embedding add-ons
  • Audio embedding and de-embedding
  • Adjustable analog audio settings (volume, gain, balance)
  • Optional digital or analog audio embedding and de-embedding add-ons
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • Frame Detector (analyze detailed video timings)
  • 5-pole Phoenix balanced analog audio connectors
  • Built-in PoE power injector* for remote powering extenders
  • TPS link quality and cable length monitoring
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Advanced EDID Management
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • Pixel Accurate Reclocking
  • No video compression
  • Bi-directional RS-232 extension (pass-through)
  • HDCP 1.4 compliant
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Built-in video test pattern generator
  • No signal latency, zero frame delay
Analog Audio Inputs
Volume: -63 .. 0 dB
Gain: 0 .. 24 dB
Balance: Yes



Analog Audio Outputs
Volume: -78 .. 0 dB
Balance: Yes



Specifications
HDCP compliancy: Yes
Max resolution: Up to 4K, UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0)
3D signal compatibility: Frame packing, side-by-side, top-bottom
Output connectors: RJ45, S/PDIF, PHOENIX
Power consumption (3.3 V): 3,3A typ., 7,1A max.
Power consumption (5 V): 5A typ., 6,9A max.
Calculated AC Power: 36W typ., 53W max.
Heat dissipation: 123 BTU/h (typ.), 180 BTU/h (max.)
Weight: 1070 g



Max cable lengths with the available firmware versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
 1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
 1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
 1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
 3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
 4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
