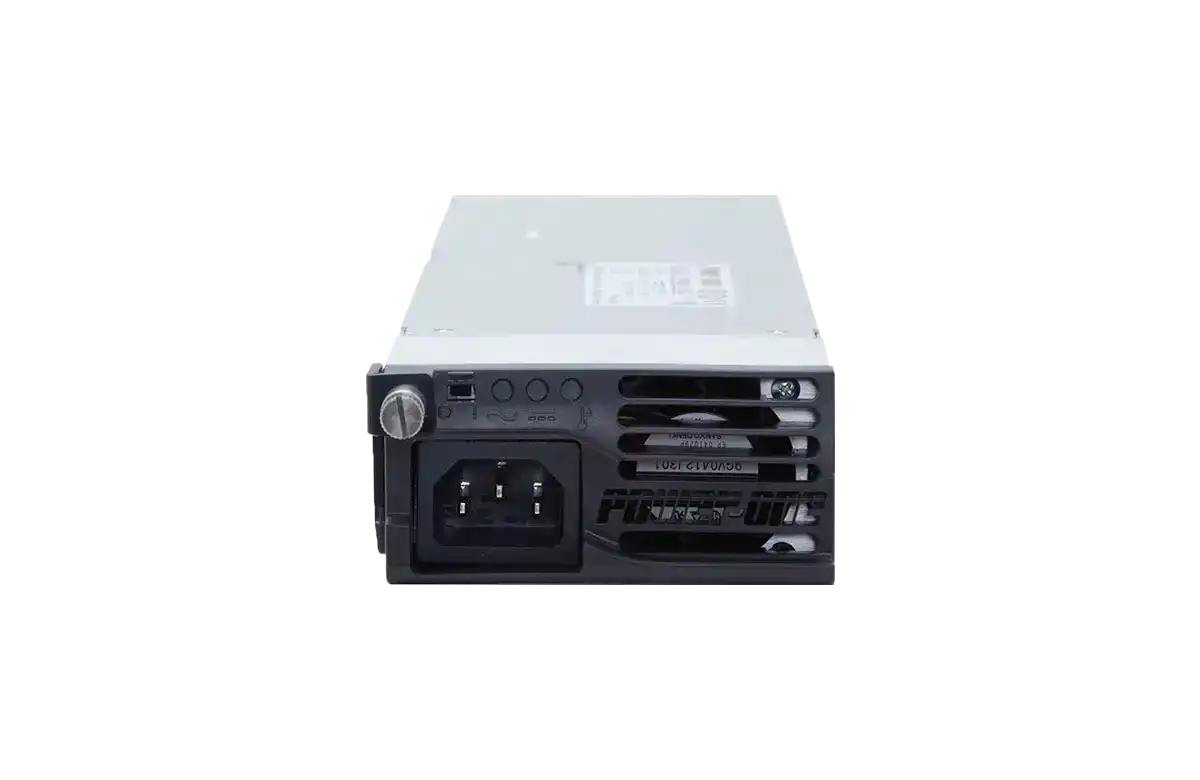

Lightware MX-PSU-850 Redundant Power Supply
Lightware MX-PSU-850 Redundant Power Supply is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Lightware MX-PSU-850 Redundant Power Supply
Product Overview
The Lightware MX-PSU-850 is a redundant power supply module designed for installation in the Lightware MX-FR65R and MX-FR80R digital crosspoint router frames. It delivers 850W of power to the frame and all installed I/O boards, and when two units are installed in a single frame, provides N+1 redundant power to eliminate single points of failure in mission-critical AV routing systems. Compatible with 100–240V AC worldwide power standards, the MX-PSU-850 is a direct-fit replacement and redundancy upgrade component for large-scale Lightware MX matrix installations.
Product Description
Large-format AV routing systems in broadcast control rooms, network operations centers, and live event production environments cannot tolerate unscheduled downtime from a power supply failure. The MX-PSU-850 addresses this by enabling hot-spare redundant power in the MX-FR65R and MX-FR80R frames. With two MX-PSU-850 units installed, the frame continues to route signals without interruption if one supply fails — the redundant unit carries the full load while the failed module is swapped out.
The unit slides into the dedicated PSU bay of the MX-FR65R or MX-FR80R frame and connects via IEC C14 panel connector. Input voltage range covers 100–240V AC at 50/60 Hz, requiring no manual selection or modification for different regional power standards. The compact form factor integrates cleanly into the existing MX frame architecture without requiring rack space or external power conditioning equipment.
Key Features
- 850W output — sufficient capacity for fully loaded MX-FR65R and MX-FR80R frames with all I/O boards installed
- N+1 redundant power — two MX-PSU-850 units in one frame provide redundant power, eliminating PSU as a single point of failure
- Compatible with MX-FR65R and MX-FR80R — direct-fit module for Lightware's largest digital crosspoint router frames
- 100–240V AC universal input — no manual voltage selection required; compatible with global power infrastructure
- 50/60 Hz frequency compatibility — operates on both North American and international AC frequencies
- Hot-swap design — failed units can be replaced during operation when the redundant supply is active
- Professional AV and broadcast rated — designed for continuous operation in demanding control room and live production environments
Typical Applications
- Broadcast master control rooms using MX-FR65R or MX-FR80R as primary signal routers
- Government and defense command centers requiring uninterrupted AV routing capability
- Live event production venues with large-format Lightware MX matrix systems
- Network operations centers and security monitoring facilities with continuous display requirements
- Redundancy upgrade for existing single-PSU MX-FR65R or MX-FR80R installations
Technical Specifications
| Electrical | |
|---|---|
| Compatible Frames | Lightware MX-FR65R, MX-FR80R |
| Input Voltage | 100–240V AC |
| Input Frequency | 50/60 Hz |
| Output Power | 850W |
| Redundancy Mode | N+1 (two units required for redundant operation) |
| Physical | |
| Form Factor | Frame-mounted drawer/module |
| AC Connector | IEC C14 panel receptacle |
| General | |
| Application | Professional AV matrix power |
| Operating Environment | Broadcast, control room, live production |
Competitor Comparison
| Criteria | Lightware MX-PSU-850 | Crestron DM-MD128X128 PSU | Evertz EQX PSU | Miranda Kaleido PSU |
|---|---|---|---|---|
| Compatible frames | Lightware MX-FR65R, MX-FR80R | Crestron DM frames only | Evertz EQX frames only | Miranda frames only |
| Output power | 850W | Model-dependent | Model-dependent | Model-dependent |
| Redundancy support | Yes — N+1 with second unit | Yes (select models) | Yes | Yes |
| Universal AC input | 100–240V AC, 50/60 Hz | 100–240V AC | 100–240V AC | 100–240V AC |
| Hot-swap | Yes (with second PSU active) | Yes | Yes | Yes |
| Cross-brand compatibility | No — Lightware MX frames only | No | No | No |
| Procurement | creationnetworks.net | Crestron dealers | Evertz dealers | Grass Valley dealers |
| Lead time support | Contact Creation Networks for stock status | Varies by distributor | Varies | Varies |
Frequently Asked Questions
- Which Lightware frames does the MX-PSU-850 support?
- The MX-PSU-850 is compatible with the Lightware MX-FR65R and MX-FR80R digital crosspoint router frames only. It is not compatible with the MX2M-FR24R frame — that frame uses the MX2M-PSU-500F. Verify your exact frame model before ordering.
- How many MX-PSU-850 units are required for redundant power?
- Two units installed in the same frame provide N+1 redundancy. A single unit provides main power only. When one unit fails in a dual-PSU configuration, the second carries the full frame load while the failed unit is replaced.
- Can the MX-PSU-850 be replaced while the frame is running?
- Yes, when the frame is operating in redundant mode with two MX-PSU-850 units installed. The active redundant supply maintains power to the frame during the replacement of the failed unit. Do not hot-swap the PSU in a single-PSU frame without accepting a power interruption.
- Is a power cord included with the MX-PSU-850?
- An IEC C13-to-C14 power cord or regional power cord may be included depending on regional configuration. Confirm with Creation Networks at creationnetworks.net before installation planning.
- What is the wattage capacity for a fully loaded MX-FR80R frame?
- Full I/O board loading in the MX-FR80R requires confirmed power budget calculations based on the specific boards installed. Contact Lightware or Creation Networks with your I/O board configuration for a power consumption estimate before finalizing the number of PSU units required.
- Is the MX-PSU-850 suitable as a spare parts stock item?
- Yes. For large Lightware MX matrix installations, maintaining a spare MX-PSU-850 on-site reduces response time in the event of a PSU failure, particularly in locations where next-day courier delivery is unreliable. Contact creationnetworks.net for volume pricing on spare units.
- Where can I order the MX-PSU-850?
- Available at creationnetworks.net. Contact the team to confirm current lead times and stock availability for your project timeline.
