Lightware MX-FR9R 9x9 Crosspoint MX Modular Digital Router Frame - 91110019

Product Overview

The Lightware MX-FR9R is a 9x9 crosspoint modular digital router frame — the entry-level size in the MX series modular matrix platform — with redundant power supply capability (R-suffix). It accepts all MX series I/O boards, covering DVI, HDMI 1.4, TPS/HDBaseT, multimode fiber, 3G-SDI, and analog audio signal types, enabling a fully customized 9x9 routing system from a single 1RU-class frame. AV integrators specifying a compact 9x9 modular HDMI DVI matrix router with redundant PSU for smaller broadcast, government, or AV hub installations — where the 17x17 and larger frames are more capacity than required — will find the MX-FR9R the right starting point with a clear expansion path to larger MX frames when scope grows.

Product Description

The MX-FR9R provides a 9x9 non-blocking crosspoint with all the software and management capabilities of the larger MX series frames: Advanced EDID Management (100 factory + 50 user EDID presets), Frame Detector signal analysis, front panel LCD with crosspoint keys, built-in web server, RS-232/422 serial control at selectable baud rates, and Pixel Accurate Reclocking on compatible output boards. The redundant PSU option (R-suffix) enables dual independent power feeds for mission-critical installations.

Power consumption is rated at 115W maximum — lower than the 17x17 frame's 210W due to the smaller crosspoint and fewer I/O slots — making the MX-FR9R appropriate for AV infrastructure rooms with tighter power budgets. The frame carries full RoHS compliance and EN 55022 Class B EMI/EMC certification, and is covered under Lightware's standard 3-year warranty.

Key Features

• 9x9 Non-Blocking Crosspoint — Full any-to-any signal routing at the rated bandwidth of installed I/O boards.
• Redundant Power Supply — Dual PSU option (R-suffix) for continuous operation during a single PSU failure.

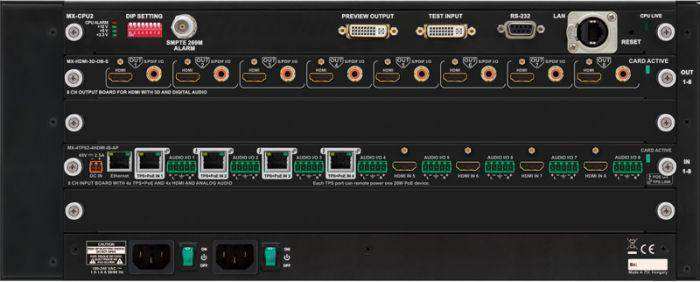

• Full MX Board Ecosystem — Compatible with all MX series I/O boards: HDMI 1.4, DVI-D, TPS/HDBaseT, fiber (LC/SC/NT), 3G-SDI, and analog audio.
• Hot-Swappable I/O Boards — Boards can be changed without powering down the frame.
• Advanced EDID Management — 100 factory + 50 user-programmable EDID presets with Extended EDID v1.3 emulation.

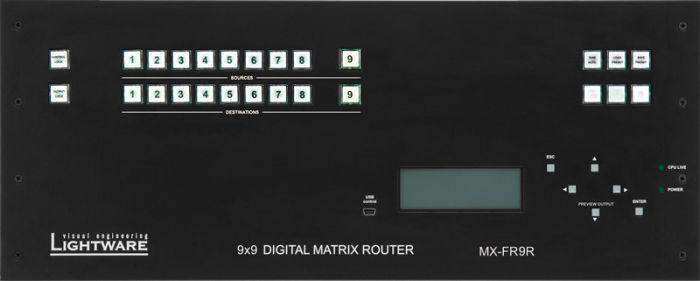

• Front Panel LCD and Crosspoint Keys — 4x20 character LCD with direct crosspoint switching buttons.
• Built-in Web Server — Browser-based control without requiring separate software installation.
• RS-232/422 and Ethernet Control — Open API compatible with all major control platforms (Crestron, AMX, Extron, etc.).
• 115W Max Power Draw — Efficient power envelope for smaller AV rooms and rack budgets.
• EN 55022 Class B and RoHS Compliant — Suitable for occupied commercial and government spaces.
• 3-Year Warranty — Standard Lightware product warranty.

Typical Applications

• Broadcast studio
• Conference room
• Government space
• Training room
• Boardroom

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Can the MX-FR9R be upgraded to a larger crosspoint size?

The MX-FR9R itself is a 9x9 frame and cannot be expanded beyond its physical I/O slot capacity. For larger crosspoints (17x17, 33x33, 65x65, 80x80), Lightware offers larger MX-FR frames. The I/O boards purchased for the MX-FR9R are reusable in larger frames.

What is the difference between MX-FR9R and MX-FR9?

The MX-FR9R adds redundant power supply (dual PSU) capability. The MX-FR9 uses a standard single PSU. Both share identical crosspoint size, I/O board compatibility, and feature sets.

What resolution does the MX-FR9R support?

Resolution capability is determined by the installed I/O boards, not the frame itself. HDMI 1.4 boards support up to 4K 30Hz; fiber optical boards handle up to 4K 30Hz over extended distances.

How many I/O boards fit in the MX-FR9R?

The 9x9 frame accommodates the I/O board slots required for a 9-input, 9-output configuration. The exact slot count depends on the board density (most 8-channel boards require one slot each).

Does the MX-FR9R work with the LDC (Lightware Device Controller) software?

Yes. Lightware Device Controller provides a graphical interface for the entire MX series, including the MX-FR9R, covering crosspoint routing, EDID management, signal monitoring, and firmware updates.

Where can I purchase the MX-FR9R?

Available through Creation Networks at creationnetworks.net. We offer pre-sale system design and post-sale integration support for all MX series products.
