Product Overview

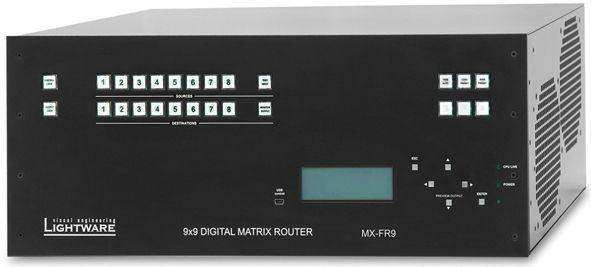

The Lightware MX-FR9 is a 9-slot modular digital router frame that forms the backbone of scalable, high-density AV signal routing installations. Designed for the MX series of input and output boards, the MX-FR9 accommodates up to nine board slots in a 4U rack chassis, supporting mixed-signal environments where HDMI, DVI, SDI, TPS, and fiber boards are combined in a single frame. Systems integrators specifying modular AV matrix switchers for large conference centers, broadcast infrastructure, or multi-room command facilities will find the MX-FR9 a flexible and professionally supported platform.
Product Description

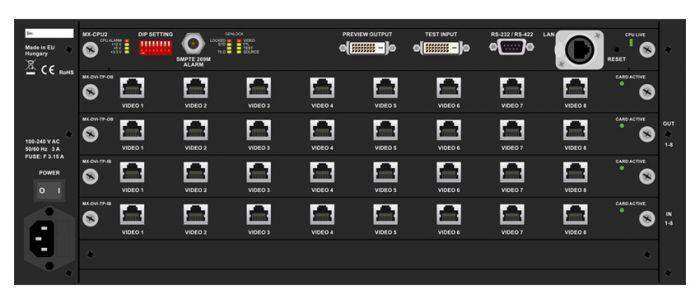

The MX-FR9 provides a 9x9 crosspoint routing fabric, allowing any input to be switched to any output in any combination. The frame accepts all current MX-series input and output boards — including TPS, HDMI, DVI, 3G-SDI, and fiber variants — enabling a single chassis to handle diverse signal types without external format converters. Control is via the rear-panel Ethernet port using Lightware Device Controller software, or through RS-232 serial commands compatible with Crestron, AMX, Extron, and other major control systems. The frame includes dual redundant power supplies for continuous operation in mission-critical applications. Signal locking per crosspoint, EDID management, and analog audio embedding/de-embedding are all handled within the frame based on the installed board set.
Key Features
- 9-Slot Modular Frame — Accepts up to nine MX-series input or output boards for a fully configurable 9x9 signal routing matrix.

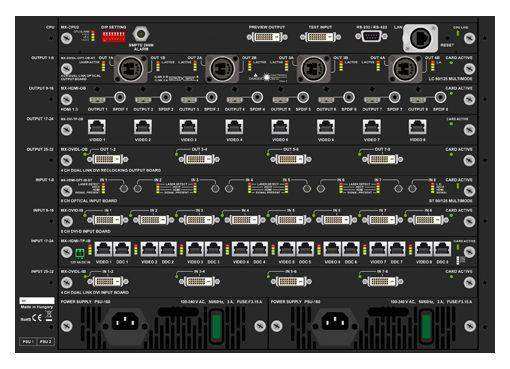

- Mixed-Signal Support — Simultaneously operates HDMI, DVI, 3G-SDI, TPS HDBaseT, and fiber boards in any slot combination.
- Dual Redundant Power — Two independent power supplies ensure continuous operation; either supply can be removed and replaced without system downtime.
- Full Crosspoint Matrix — Any input routed to any output simultaneously; supports follow and lock modes per crosspoint.
- Ethernet Control Port — Managed via LAN using Lightware Device Controller or open REST/WebSocket API for third-party integration.
- RS-232 Serial Control — Compatible with Crestron, AMX, Extron, and Savant control systems via documented ASCII command set.
- 4U Rack Form Factor — Standard 19-inch rack mount, 4U height for installation in AV equipment racks.
- EDID Management — Per-port EDID storage and emulation for reliable source and display negotiation across all installed boards.
Typical Applications
- Corporate boardroom and executive briefing center matrix systems
- Conference room and multi-room distribution infrastructure
- Broadcast studio and production facility signal routing
- Auditorium and large-venue AV distribution
- Government operations center and command-and-control facilities
Technical Specifications
| Specification | Value |
|---|---|
| Model | MX-FR9 |
| Part Number | 91110001 |
| Frame Type | Modular Digital Router Frame |
| Board Slots | 9 |
| Crosspoint Size | 9x9 (up to, depending on board mix) |
| Compatible Boards | All MX-series input and output boards |
| Supported Signal Types | HDMI, DVI, 3G-SDI, TPS (HDBaseT), Fiber |
| Control Interfaces | Ethernet (LAN), RS-232 |
| Power Supply | Dual redundant, hot-swappable |
| Rack Size | 4U, 19-inch standard rack |
| Operating Temperature | 0°C to 40°C |
Competitor Comparison
| Criteria | Lightware MX-FR9 | Crestron DM-MD32X32 | Extron XTP CrossPoint 3200 |
|---|---|---|---|
| Frame Slots | 9 modular slots | Integrated 32x32, not slot-based | Up to 32 ports, card-based |
| Signal Flexibility | Mixed HDMI, SDI, TPS, fiber in one frame | DM-native; requires DM endpoints | XTP-encoded; requires XTP endpoints |
| Control Protocol | Open API, RS-232, Ethernet | Primarily Crestron control systems | Open SIS, broad third-party support |
| Redundant Power | Yes, hot-swap dual PSU | Optional redundant PSU | Optional redundant PSU |
| Rack Space | 4U | 8U | 7U |
| Max Video Resolution | 4K60 (board-dependent) | 4K60 with DM 4K encoding | 4K60 with XTP encoding |
| Signal Transport | Native uncompressed per board type | DM compression on transmission | XTP encoding on transmission |
Frequently Asked Questions
- How many boards does the MX-FR9 support?
- The MX-FR9 accommodates up to nine MX-series boards. The ratio of input to output boards is user-configurable, limited only by the nine available slots.
- Can different signal types be mixed in the same frame?
- Yes. HDMI, DVI, 3G-SDI, TPS HDBaseT, and fiber boards can all be installed simultaneously in any slot combination.
- Does the MX-FR9 support third-party control systems?
- Yes. RS-232 and Ethernet control interfaces with documented command sets support Crestron, AMX, Extron, Savant, and other major platforms.
- Is the power supply redundant?
- Yes. The MX-FR9 includes dual hot-swappable power supplies. Either supply can fail or be replaced without interrupting signal routing.
- What is the maximum crosspoint size?
- With nine input boards installed, the MX-FR9 operates as a 9-input matrix. The actual crosspoint depends on the installed board mix. Output boards can number up to nine minus the number of input boards used.
- Is the MX-FR9 compatible with MX2M-series boards?
- No. MX2M-series boards (such as the MX2M-4OPTJ-IB) are designed for the MX2M frame only. The MX-FR9 uses MX-series boards exclusively.
- Where can I purchase the MX-FR9?
- The Lightware MX-FR9 is available from Creation Networks at creationnetworks.net, an authorized Lightware reseller.
