Lightware MX-DVI-OPT-IB-SC Fiber Input Board for MX-FR Frames

Product Overview

The Lightware MX-DVI-OPT-IB-SC is a DVI optical fiber input board for Lightware MX-FR series modular matrix frames, accepting DVI-D video signals transmitted over multimode optical fiber via SC connectors. It is the appropriate input board for legacy systems where DVI-D over fiber is the established signal format — such as older graphics workstations, visualization systems, or established AV infrastructure — that must be integrated into an MX-FR routing matrix alongside HDMI, TPS, and SDI signals. Integrators extending the life of DVI-based signal chains within a modernized MX-FR routing environment will specify this board.

Product Description

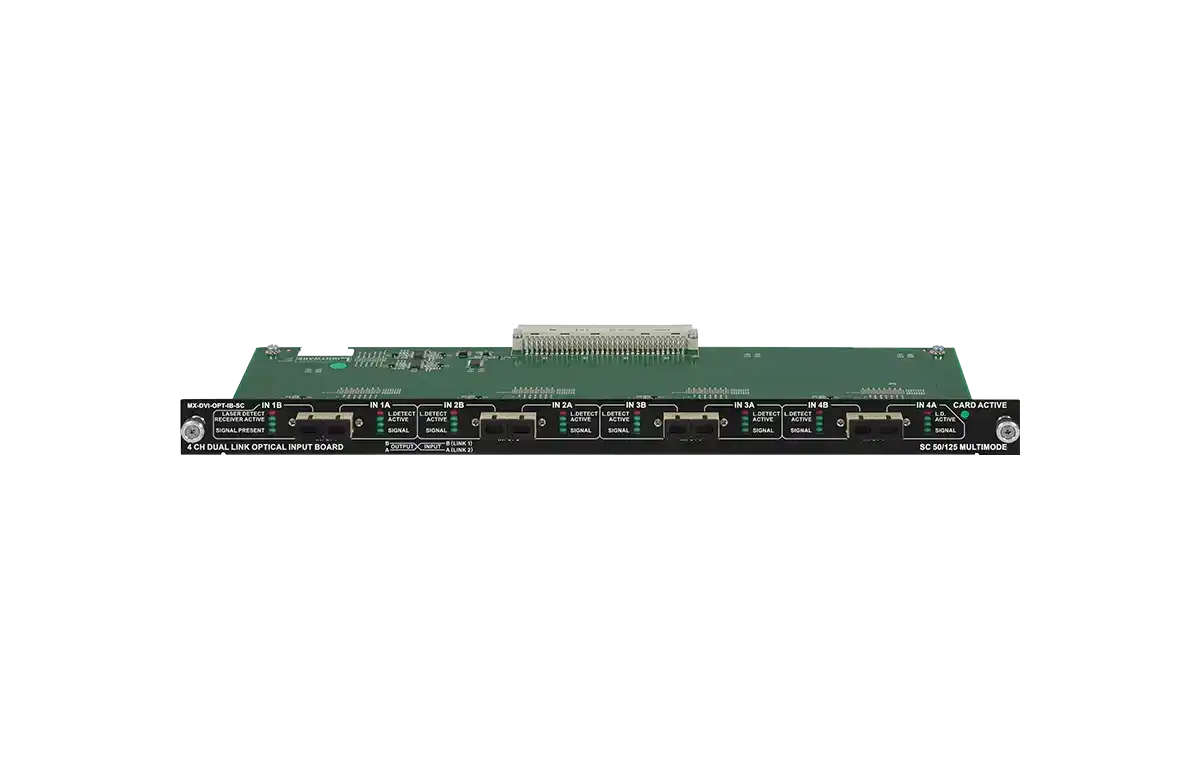

The MX-DVI-OPT-IB-SC installs into any input slot of a Lightware MX-FR series frame and accepts DVI-D signals delivered over multimode optical fiber with SC-type connectors. Once received, the DVI signal enters the MX-FR crosspoint matrix and can be routed to any installed output board. SC connectors are widely deployed in enterprise and campus fiber infrastructure, making this board compatible with existing structured fiber cabling without connector adaptation. The board handles EDID management through the MX-FR frame's control system, enabling connected source devices to negotiate the correct resolution. This board does not support analog DVI-A signals; it is DVI-D digital only. Multiple MX-DVI-OPT-IB-SC boards can be installed in the same MX-FR frame alongside other input board types.

Key Features

• DVI-D Fiber Input — Accepts digital DVI-D video signals transmitted over multimode optical fiber.
• SC Optical Connector — Uses industry-standard SC fiber connectors, compatible with widely deployed enterprise fiber infrastructure.
• MX Frame Integration — Installs in any input slot of MX-FR series frames for full crosspoint matrix routing.
• Mixed-Signal Frame Compatibility — Coexists in the same MX-FR frame with HDMI, TPS, SDI, and other signal type boards.
• Per-Port EDID Management — EDID managed per port by the MX-FR frame control system for accurate source resolution negotiation.
• Legacy System Integration — Extends the operating life of DVI fiber signal chains within modern MX-FR routing infrastructure.

Typical Applications

• Post-production facilities with DVI workstation outputs distributed over existing fiber runs
• Control room integrating legacy DVI sources into a mixed-signal routing matrix
• Corporate AV system receiving DVI-fiber signals from existing visualization or simulation hardware
• Government and military facilities with established DVI fiber infrastructure requiring matrix routing

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does this board support analog DVI (DVI-A or DVI-I) signals?

No. The MX-DVI-OPT-IB-SC supports DVI-D digital signals only. Analog DVI-A or combined DVI-I analog signals are not accepted.

What fiber type and connector does this board use?

Multimode optical fiber with SC connectors. SC is a widely deployed connector type in enterprise and campus fiber infrastructure.

Can DVI inputs be routed to HDMI outputs?

Yes. Once in the MX-FR crosspoint matrix, DVI signals can be routed to any output board type, including HDMI, TPS, and fiber output boards.

What resolution does DVI fiber support on this board?

Standard DVI-D single-link supports resolutions up to 1920x1200 (WUXGA). Dual-link DVI can support higher resolutions; confirm with the specific fiber transmitter in use.

Is this board compatible with the MX-FR9?

Yes. The MX-DVI-OPT-IB-SC is compatible with the MX-FR9 and all other Lightware MX-FR series frames.

Where can I purchase the MX-DVI-OPT-IB-SC?

Available from Creation Networks at creationnetworks.net, an authorized Lightware reseller.
