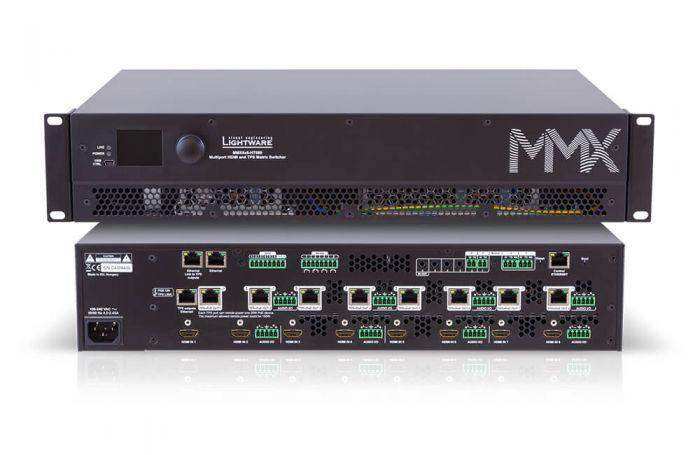

Lightware MMX8x8-HT080 HDMI and TPS Matrix Switcher with Special Audio Inputs and Multiport Control Options - 91310087
Roll over image to zoom in Click on image to zoom
Lightware MMX8x8-HT080 HDMI and TPS Matrix Switcher with Special Audio Inputs and Multiport Control Options - 91310087
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware MMX8x8-HT080 HDMI and TPS Matrix Switcher with Special Audio Inputs and Multiport Control Options - 91310087

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91310087
No reviews
Price:
$9,885.00

Description

MMX8x8-HT080 is a standalone matrix switcher specifically designed for conference room environments. It has eight HDMI inputs with eight TPS2 outputs. 4K / UHD (30Hz RGB 4:4:4, 60Hz YCbCr 4:2:0), 3D capabilities and HDCP are fully supported.

The device also has eight balanced 5-pole Phoenix audio connectors at four of the inputs, four of the outputs.

The audio signal direction of the port can be changed with the Lightware Device Controller software, so these audio ports can be either input or output ports.

PoE 48V remote powering is available on every output TPS2 ports for cost-effective installations.

MMX8x8-HT080 receives and transmits digital video, audio and control to a distance of up to 170m over a single CAT6 cable. Using factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit can be controlled via RS-232, Ethernet or USB ports, but it also offers Ethernet, RS-232, Serial and IR command injection capabilities, allowing to send any control command directly from the LAN connection to remote end points.

The built-in Event Manager feature provides control via RS-232, IR, Ethernet, Relay and GPIO ports. The MMX8x8-HT080 is compatible with both HDBaseTTM extenders and HDBaseTTM compliant displays.

Highlighted features

  • Extends DVI or HDMI 1.4 + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Built-in PoE injector* for remote powering extenders
  • Balanced analog audio output for audio de-embedding
  • Audio embedding and de-embedding
  • Built-in Event Manager control automation feature

Features and Services



4K / UHD (30Hz RGB 4:4:4 60Hz YCbCr 4:2:0) and 3D capabilities

Yes

HDMI input ports

8x

TPS2 (HDBaseT) output ports

8x

Up to 170 m transmission over TPS Long Reach Mode for Full HD signals

Yes

Balanced bi-directional analog audio ports

8x

Ethernet port for device control

1x

Ethernet ports for external device control

2x

Ethernet via TPS2

Yes

Bi-directional RS-232 ports

2x

Serial/IR ports for display control

2x

IR ports for display control

4x

Relay output ports

4x

GPIO port

6x GPIO + 5V + GND

PoE function to feed remote power to connected devices

Yes

Front panel LCD and jog dial button

Yes

Event Manager built-in control feature

Yes

Power consumption (max)

108W

Maximum Extension Distances:

Resolution

Pixel clock rate

Cable lengths

(Auto / Long reach TPS mode)

CAT5e AWG24

 CAT7 AWG26

 CAT7 AWG23

1024x768@60Hz

65 MHz

100 m / 130 m*

90 m / 120 m*

120 m / 170 m*

1280x720p@60Hz

73.8 MHz

100 m / 130 m*

90 m / 120 m*

120 m / 170 m*

1920x1080p@60Hz (24bpp)

148.5 MHz

100 m / 130 m*

90 m / 120 m*

120 m / 170 m*

1920x1200@60Hz

152.9 MHz

100 m / NA

90 m / NA

120 m / NA

1600x1200@60Hz

162 MHz

100 m / NA

90 m / NA

120 m / NA

1920x1080@60Hz (36bpp)

223 MHz

70 m / NA

70 m / NA

100 m / NA

3840x2160@30Hz UHD

297 MHz

70 m / NA

70 m / NA

100 m / NA

4096x2160@30Hz 4K

297 MHz

70 m / NA

70 m / NA

100 m / NA

*Long reach TPS mode supports pixel clock frequencies up to 148.5 MHz.



To specify the accurate extension distances, please also check the documentation of the connected HDBaseT-compatible device.

CAT7 SFTPAWG23 cable is always recommended.
