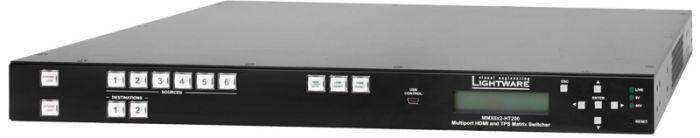

The MMX6x2-HT210 responds to a need for a practical standalone matrix switcher specifically designed for meeting room and classroom environments. The compact MMX6x2-HT200 has four HDMI 1.4 and two TPS (HDBaseTTM) inputs and two independent HDMI outputs and one mirrored TPS output. 4K@30Hz, 3D capabilities and HDCP are fully supported. The device also has four audio connectors for audio insertion and two audio outputs for de-embedding purposes.
PoE 48V remote powering is available on every TPS ports for cost-effective installations. MMX6x2-HT200 can receive digital video, audio and control from a distance of up to 170m over a single CATx cable. Using factory, custom or transparent EDID emulation, the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform the system requirements.
The unit offers IR and RS-232 command injection capabilities, providing the ability to send any IR or RS-232 control command directly from the LAN connection to remote end points. The MMX6x2-HT200 is also compatible with both HDBaseT extenders and HDBaseT compliant displays.
The Event Manager feature is all the control you need, already built-in, as it can perform any user-defined action when a change in the device status occurs. To mention a few case examples among the many, in case of a status change of a signal appearing on the input, or a change in resolution, the responsive action can be defined by the user to be a crosspoint switch, sending IR or RS-232 commands or changing the volume.
This built-in feature ensures that no additional control is required in simple systems and makes the MMX6x2-HT family the perfect solution in a wide range of applications.
Configuration Cloning Capability
Using the supplied Lightware Device Controller application it is possible to clone configuration settings in a few easy steps and restore them in an unlimited number of other MMX6x2-HT200 devices.
Power Injection over TPS ports
MMX6x2-HT200 has remote powering capabilities on its TPS ports. This feature allows for remote powering the connected TPS devices using standard Power over Ethernet (PoE) technology by delivering 48V of DC power over CAT cables, for devices consuming less than 15W of power. Remote powering saves time and money by avoiding the need for separate installation of video and power infrastructures. Powered extenders can be freely placed without a need for AC outlets.
Volume Control for De-embedded Audio
MMX6x2-HT200 enables de-embedding audio and setting volume level on the balanced audio out connectors. This feature makes installations simpler and cost effective as there is no need for an external device for volume and balance adjustment when using active speakers.
- Conference/meeting/huddle rooms
- Control room
- Home cinema
- 2x rack ear
- Extra rack ears for under desk installation
- Mounting bracket V2
- Bi-directional RS-232 and IR extension (pass-through and control)
- Command injection on RS-232 and IR ports
- Built-in Event Manager control automation feature
|Max Supported Cable Lengths|
|Resolution||Pixel clock rate||Cable lengths (Auto / LR link mode)|
|CAT5e AWG24||CAT7 AWG26**||CAT7 AWG23|
|1024x768@60Hz||65 MHz||100 m / 130 m*||90 m / 120 m*||120 m / 170 m*|
|1280x720p@60Hz||73,8 MHz||100 m / 130 m*||90 m / 120 m*||120 m / 170 m*|
|1920x1080p@60Hz / 24bpp||148,5 MHz||100 m / 130 m*||90 m / 120 m*||120 m / 170 m*|
|1920x1200@60Hz||152,9 MHz||100 m / NA||90 m / NA||120 m / NA|
|1600x1200@60Hz||162 MHz||100 m / NA||90 m / NA||120 m / NA|
|1920x1080@60Hz / 36bpp||223 MHz||70 m / NA||70 m / NA||100 m / NA|
|1920x1080@120Hz||297 MHz||70 m / NA||70 m / NA||100 m / NA|
|3840x2160@30Hz UHD||297 MHz||70 m / NA||70 m / NA||100 m / NA|
|4096x2160@30Hz 4K||297 MHz||70 m / NA||70 m / NA||100 m / NA|
|* with Long reach operation mode which supports pixel clock frequencies up to 148,5 MHz.
** when remote powering is used with AWG26 cables, distances are 20% shorter.
|I/O Connectors Comparison Chart|
|HDMI in||TPS in||HDMI out||TPS out|
|Digital Video Inputs||4x HDMI connector|
|Digital Video Outputs||2x HDMI connector|
|TPS inputs||2x RJ45 connector|
|TPS output:||RJ45 connector|
|Analog audio inputs:||4x 5-pole PHOENIX|
|Analog audio outputs:||2x 5-pole PHOENIX|
|Serial port||3-pole PHOENIX|
|Crosspoint:||6x2 video - any input(s) to any output(s)|
|Resolution:||Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@120Hz|
|Digital Audio Formats:||Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats|
|Input cable equalization (HDMI):||Adaptive, automatic|
|EDID emulation:||Yes, Advanced EDID Management|
|EDID memory:||119 factory preset, 12 user programmable|
|Front panel buttons:||Yes|
|Front panel LCD:||Yes, 2x16 characters|
|RS-232 control:||Selectable (9600, 19200, 38400, 57600, 115200) Baud Rx, Tx (default: 57600)|
|Local power:||100 - 240 V AC|
|Power consumption:||95 W (max.), 38 W (typ.)|
|Heat dissipation:||112 BTU/h (max.), 75 BTU/h (typ.)|
|Enclosure:||1 mm metal|
|Dimensions with rack mounting ears:||482 W x 43,9 H x 300 D mm|
|Dimensions without rack mounting ears:||442 W x 43,9 H x 300 D mm|
|Net weights:||4,8 kg|
|Temperature:||0°C to +50°C operational -40°C to +70°C storage|
|Humidity:||10 to 90% non-condensing|
|Supported Audio Formats|
|HDMI Embedded Audio||
Multichannel PCM (up to 8 ch, 192 kHz)
|Balanced Analog Output||Stereo PCM (up to 96 kHz)|
|Analog Audio Input|
|Gain (adjustable):||0..21 dB|
|Volume (adjustable):||-95..0 dB|
|Maximum differencial input level||+4 dBu @ 0 dB Gain|
|Analog Audio Output|
|Gain (adjustable):||0..3 dB|
|Volume (adjustable):||-57..0 dB|
|Nominal differential input level||+4 dBu @ 0 dB Gain|
|Maximum differential output level||+7 dBu @ 3 dB Gain|
