Lightware MMX4x2-HT200 4x2 Matrix Switcher with TPS and HDMI Inputs and Breakaway Analog Audio - 91310035
Roll over image to zoom in Click on image to zoom
Lightware MMX4x2-HT200 4x2 Matrix Switcher with TPS and HDMI Inputs and Breakaway Analog Audio - 91310035
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware MMX4x2-HT200 4x2 Matrix Switcher with TPS and HDMI Inputs and Breakaway Analog Audio - 91310035

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91310035
No reviews
Price:
$2,385.00

Description

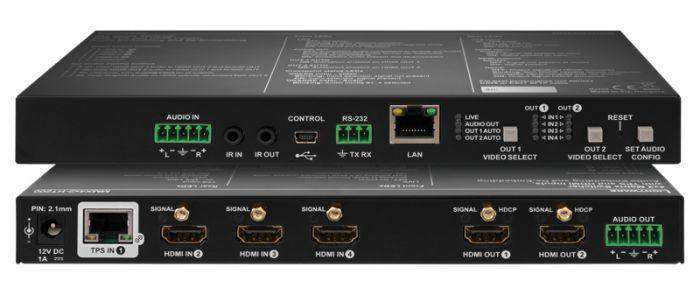

MMX4x2-HT is a uniquely mini size matrix switcher. It has three HDMI inputs and one HDBaseTTM compatible TPS input port. It has two independent HDMI outputs. Audio can be de-embedded from the HDMI signal to a balanced 5-pole Phoenix (Euroblock) port and external audio signal can be embedded into the HDMI stream from another 5-pole Phoenix input port. The volume and gain properties of the audio signal can be modified at both input and output. The unit is fully 4K/UHD/3D capable and HDCP compliant. The device has a built-in Event Manager configurable via the Lightware Device Controller software. Further control options are served by the USB, RS-232, IR (in and out) and Ethernet ports.

Advanced Control Pack Features:

  • 100 available event slots in ’Plus’ extenders
  • Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
  • Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
  • Support to send CEC commands on HDMI ports for control of other devices.
  • Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.

Applications

  • Classrooms
  • Conference and meeting rooms
  • Control room
  • Home cinema

Compatible Products

  • TPS Transmitters:
  • HDMI-TPS-TX95/97
  • DVI-HDCP-TPS-TX95/97
  • UMX-TPS-TX100 series
  • WP-UMX-TPS-TX100 series
  • SW4-TPS-TX240
  • HDMI-TPS-TX200 series
  • DP-TPS-TX200 series
  • MX Modular matrix frames - MX-TPS/TPS2-OB
  • 25G Modular matrix frames - 25G-TPS2-OB
  • Standalone TPS matrix frames – MMX6x2-HT series
Max Supported Cable Lengths
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
 1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
 1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
 1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
 1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
 1920x1080@120Hz 297 MHz 70 m / NA 70 m / NA 100 m / NA
 3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
 4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
* with Long reach operation mode which supports pixel clock frequencies up to 148,5 MHz.
** when remote powering is used with AWG26 cables, distances are 20% shorter.



Connectors
Digital Video Inputs  3x HDMI; 1 HDBT connector
Digital Video Outputs  2x HDMI connector
Balanced audio input:  5-pole Phoenix (Euroblock) connector
Balanced audio output:   5-pole Phoenix (Euroblock) connector
Ethernet:  1 x RJ45
USB: mini-USB-B connector
IR in and out:  3.5 mm jack
Serial port:  3-pole Phoenix (Euroblock)
Power:  Locking DC connector (2.1 / 5.5 mm)



Specification
Resolution: Up to 4K UHD 3840×2160@30Hz,1600x-
1200@60Hz, FullHD 1920x1080@60Hz
Digital audio formats: Supports up to 8 channel PCM, Dolby TrueHD
and DTS-HD Master Audio 7.1 formats
Input cable equalization (TPS): Automatic max 170 m*
EDID emulation: Yes, Advanced EDID Management
EDID memory: 120 factory preset, 12 user programmable
HDCP compatibility: Yes
RS-232 pass-through Yes, configurable
RS-232 (control option): 9600, 19200, 38400, 57600, 115200 Baud
Rx,Tx (default: 57600)
Local power: DC Power supply 12V, 2A
Power consumption: 10W (max)
Enclosure: 1 mm metal
Dimensions: 221 W x 100.4 D x 26 H mm
Compliance: CE
Warranty: 3 years
  *Depends on cable category and quality



Analog Audio Input
Volume: -96 .. 0 dB
Balance: -100 .. 0 .. 100
Mute function: Yes



Analog Audio Output
Volume: -57 .. +3 dB
Balance: -100 .. 0 .. 100
Mute function: Yes
