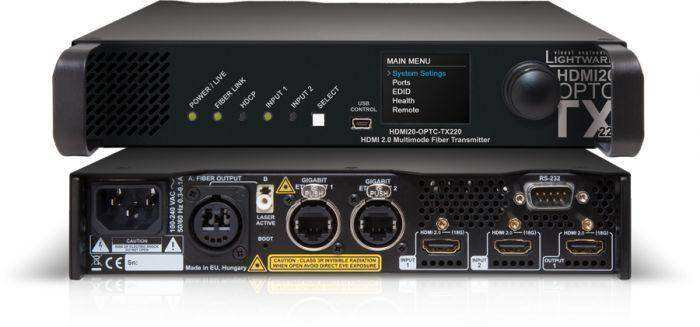

Lightware HDMI20-OPTC-TX220-PRO HDMI 2.0 Full 4K Fiber Optical Extender with Gigabit Ethernet - 91550045

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91550045
No reviews

Price:
Sale price$5,985.00

Description

HDMI 2.0 Full 4K Fiber Optical Extender with Gigabit Ethernet

The HDMI20-OPTC-TX/RX220-Pro is a HDMI 2.0 compatible extender pair for video, RS-232 and Gigabit Ethernet signals, supporting uncompressed 4K UHD resolution at 60Hz 4:4:4. Video and Ethernet signals are transferred over a single optical line.

Highlighted features

  • Extension distance up to 700 meters (with OM3/OM4 fiber, 4096x2160p60)
  • Single Fiber Technology
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Advanced EDID Management
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • Built-in universal power supply

Device

Optical Connectors

Power Inlet

Ethernet

HDMI Ports

Serial port

USB

HDMI20-OPTC-TX/RX220-Pro

1x Neutrik OpticalCON DUO

IEC 60320-C14

2x EtherCON for Gigabit Ethernet (control & pass-through)

TX: 2x HDMI 2.0 input (18G) and 1x HDMI 2.0 output (18G)

RX: 2x HDMI 2.0 output (18G) and 1x HDMI

2.0 output (9G)

D-SUB 9 male (DE-9M) for RS-232 (control or pass-through)

Mini USB B

HDMI20-OPTC-TX/RX220-NTQ

1x Neutrik OpticalCON Quad

HDMI20-OPTC-TX/RX220-FOX

1x Fiberfox

HDMI20-OPTC-TX/RX220-PCN

1x Neutrik OpticalCON DUO

Neutrik Powercon True1



Specifications

Max Video Data rate

 18 Gbps

Max Resolution

 Up to 4K UHD 3840×2160@60Hz

Video delay

 0 frames

HDR Modes

 HDR 10, HDR 12 and Dolby Vision

HDCP

HDCP 2.2 compliant

EDID emulation

 Advanced EDID Management

EDID memory

 Factory preset and user-programmable

EDID support

 256 byte Extended EDID

Front panel control

Jog Dial and select button on TX
Select button on TX
Function button on RX

Visual feedback on TX and RX units

LCD menu for EDID setup and status check on TX.

TX status LEDS

POWER/LIVE
FIBER LINK
HDCP
INPUT 1
INPUT 2

RX status LEDs

POWER/LIVE
FIBER LINK
HDCP
SIGNAL PRESENT
OUTPUT CONVERSION

RS-232 pass through

 Bi-directional 9.6, 14.4, 19.2, 38.4, 57.6 kBauds

Fiber

 LC duplex, LC simplex for channel breakout

Laser wavelengths

 6 channel CWDM

High speed lanes

 778; 801; 824; 850 nm

Low speed lanes

 911; 980 nm

Laser class specification

 Class 3R

Power supply

 Internal AC/DC power supply

Enclosure

 bottom and back 1 mm metal, top and front 1,5 mm metal

Dimensions

 1RU height x ½ rack width

Compliance

 CE

Warranty

 3 years



Maximum Extension Distances

Resolution

Pixel Clock

OM1

OM2

OM3

OM4



1280x720p60

74 Mhz

800 m

1000 m

2500 m

2500 m

1920x1080p60

148.5 MHz

500 m

1000 m

2500 m

2500 m



3840x2160p30 (4k30 4:4:4)

3840x2160p60 (4k60 4:2:0)

297 MHz

200 m

600 m

1500 m

1500 m



3840x2160p60 (4k60 4:4:4)

4096x2160p60 (DCI 4K60)

594 MHz

Not supported

300 m

700 m

700 m
