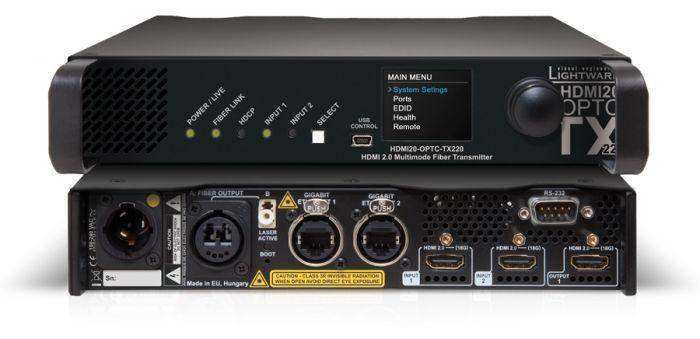

Lightware HDMI20-OPTC-TX220-PCN HDMI 2.0 Full 4K Fiber Optical Extender with Gigabit Ethernet - 91550003

LightWare SKU: 91550003
No reviews

Price:
Sale price$4,390.00

Description

The HDMI20-OPTC-TX/RX220-PCN is a HDMI 2.0 compatible, HDCP 2.2 compliant extender pair for video, RS-232 and Gigabit Ethernet signals, supporting uncompressed 4K UHD resolution at 60Hz 4:4:4. This extender pair is particularly recommended for rental and staging applications, 4K live events, and for future-proof operation centers. The extender can transmit HDMI 2.0 signals with 18Gbps over one multimode fiber to a distance of up to 700 meters. Video and Ethernet signals are transferred over a single optical line.

Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on the HDMI connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format conforming to the system requirements. The unit offers bi-directional and transparent RS-232 transmission and two separate Gigabit Ethernet signals over the fiber connection.

All devices can be mounted on a rack shelf or used standalone, rack ears also serve easy handling and bump protection, mounting threads on top and one of the sides to conform strict installation safety regulations.

The device features Pixel Accurate Reclocking, a Lightware technology to eliminate jitter and skew generated by low quality sources and multiple daisychained devices. Single fiber technology makes these units fully HDMI compliant without need of a second fiber cable or copper connections.

Galvanic isolation between source and display helps avoiding ground loops and hum effects. No delay occurs in the signal during optical conversion, the video image is transported without frame latency. This feature is crucial in 3D applications and systems where audio is processed separately.

Lightware’s HDMI20-OPTC series supports both HDR and Dolby Vision in the HDMI signal at 10 or 12 bit speeds respectively, within its frame bandwidth of 18 Gbps maximum.

The Lightware OPTC extenders can also create a powerful combination with a wide-range of 3rd party video wall solutions, including Corvette, Megapixel HELIOS and Brompton.

Highlighted features

  • Extension distance up to 700 meters (with OM3/OM4 fiber, 4096x2160p60)
  • Single Fiber Technology
  • Uncompressed video up to 18 Gbps datarate (600 MHz pixel clock)
  • 4096x2160@60Hz/4:4:4 maximum resolution (600MHz)
  • Advanced EDID Management
  • Device control via Ethernet (TCP/IP), RS-232 and USB
  • Built-in universal power supply

Device

Optical Connectors

Power Inlet

Ethernet

HDMI Ports

Serial port

USB

HDMI20-OPTC-TX/RX220-Pro

1x Neutrik OpticalCON DUO

IEC 60320-C14

2x EtherCON for Gigabit Ethernet (control & pass-through)

TX: 2x HDMI 2.0 input (18G) and 1x HDMI 2.0 output (18G)

RX: 2x HDMI 2.0 output (18G) and 1x HDMI

2.0 output (9G)

D-SUB 9 male (DE-9M) for RS-232 (control or pass-through)

Mini USB B

HDMI20-OPTC-TX/RX220-NTQ

1x Neutrik OpticalCON Quad

HDMI20-OPTC-TX/RX220-FOX

1x Fiberfox

HDMI20-OPTC-TX/RX220-PCN

1x Neutrik OpticalCON DUO

Neutrik Powercon True1



Specifications

Max Video Data rate

 18 Gbps

Max Resolution

 Up to 4K UHD 3840×2160@60Hz

Video delay

 0 frames

HDR Modes

 HDR 10, HDR 12 and Dolby Vision

HDCP

HDCP 2.2 compliant

EDID emulation

 Advanced EDID Management

EDID memory

 Factory preset and user-programmable

EDID support

 256 byte Extended EDID

Front panel control

Jog Dial and select button on TX
Select button on TX
Function button on RX

Visual feedback on TX and RX units

LCD menu for EDID setup and status check on TX.

TX status LEDS

POWER/LIVE
FIBER LINK
HDCP
INPUT 1
INPUT 2

RX status LEDs

POWER/LIVE
FIBER LINK
HDCP
SIGNAL PRESENT
OUTPUT CONVERSION

RS-232 pass through

 Bi-directional 9.6, 14.4, 19.2, 38.4, 57.6 kBauds

Fiber

 LC duplex, LC simplex for channel breakout

Laser wavelengths

 6 channel CWDM

High speed lanes

 778; 801; 824; 850 nm

Low speed lanes

 911; 980 nm

Laser class specification

 Class 3R

Power supply

 Internal AC/DC power supply

Enclosure

 bottom and back 1 mm metal, top and front 1,5 mm metal

Dimensions

 1RU height x ½ rack width

Compliance

 CE

Warranty

 3 years



Maximum Extension Distances

Resolution

Pixel Clock

OM1

OM2

OM3

OM4



1280x720p60

74 Mhz

800 m

1000 m

2500 m

2500 m

1920x1080p60

148.5 MHz

500 m

1000 m

2500 m

2500 m



3840x2160p30 (4k30 4:4:4)

3840x2160p60 (4k60 4:2:0)

297 MHz

200 m

600 m

1500 m

1500 m



3840x2160p60 (4k60 4:4:4)

4096x2160p60 (DCI 4K60)

594 MHz

Not supported

300 m

700 m

700 m
