Product Overview

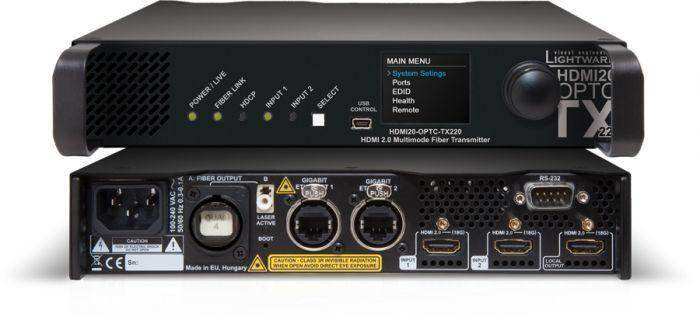

The Lightware HDMI20-OPTC-TX220-NTQ is the transmitter unit of the HDMI20-OPTC-TX/RX220-NTQ extender pair, transmitting uncompressed HDMI 2.0 4K UHD@60Hz 4:4:4 video at 18 Gbps over a single multimode optical fiber terminated with a Neutrik OpticalCON Quad connector. It is specified for venues and facilities with pre-installed quad-fiber infrastructure — such as large auditoriums, multi-room broadcast facilities, or campus AV networks — where the OpticalCON Quad connector simplifies fiber patch connections in high-density environments. It accepts two HDMI 2.0 inputs and provides a local monitoring output.
Product Description
The HDMI20-OPTC-TX220-NTQ transmits two HDMI 2.0 source signals at up to 18 Gbps each to the companion RX220-NTQ receiver, selecting one for primary transmission over fiber. The local HDMI 2.0 output enables source monitoring at the transmitter location without interrupting the fiber link. The Neutrik OpticalCON Quad connector provides a multi-channel fiber interface in a single ruggedized housing, enabling easy connection to patch panels and distribution systems built on quad-fiber conduit. The device uses Single Fiber Technology to carry video, two Gigabit Ethernet paths, and bi-directional RS-232 over a single optical fiber, with zero frame latency throughout the signal path. The front panel LCD menu and jog dial allow on-site EDID setup, input selection, and status monitoring. Pixel Accurate Reclocking removes source jitter before fiber transmission, and Advanced EDID Management locks the connected display's EDID to the source for consistent format compliance.
Key Features
- Neutrik OpticalCON Quad connector — Multi-channel fiber connector for venues with quad-fiber patch panel infrastructure.
- Two HDMI 2.0 inputs — Accepts two 18 Gbps HDMI 2.0 sources; selectable for fiber transmission.
- Local HDMI 2.0 monitoring output — On-site display of the source signal at the transmitter without breaking the fiber link.
- Single Fiber Technology — Video, two Gigabit Ethernet, and RS-232 over a single multimode fiber.
- 700-meter transmission distance — Transmits 4K UHD@60Hz 4:4:4 to 700m over OM3/OM4 multimode fiber.
- Zero frame latency — No frame buffering in the optical path.
- Galvanic isolation — Fiber medium provides full galvanic isolation between source and destination.
- Pixel Accurate Reclocking — Cleans jitter from source signals before optical transmission.
- HDR10, HDR12, Dolby Vision — Passes all HDR formats within the 18 Gbps signal bandwidth.
- HDCP 2.2 compliant — Full support for protected 4K content.
- LCD menu and jog dial — On-site EDID setup and status display on the transmitter front panel.
- Advanced EDID Management — Locks display EDID to source for format compliance.
Typical Applications
- Auditorium
- Broadcast studio
- Government space
- Conference room
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 91550005 |
| Unit Type | Transmitter (TX) |
| Optical Connector | Neutrik OpticalCON Quad |
| Power Inlet | IEC 60320-C14 |
| HDMI Inputs | 2x HDMI 2.0 (18 Gbps) |
| HDMI Output (local) | 1x HDMI 2.0 (18 Gbps) |
| Max Video Data Rate | 18 Gbps |
| Max Resolution | 4096x2160@60Hz RGB 4:4:4 (600 MHz pixel clock) |
| Video Latency | 0 frames |
| HDR | HDR10, HDR12, Dolby Vision |
| HDCP | HDCP 2.2 compliant |
| Ethernet | 2x Gigabit (control + pass-through) |
| RS-232 | Bi-directional, 9.6–57.6 kBaud |
| Fiber Type | Multimode LC |
| Max Distance (OM3/OM4, 4K60 4:4:4) | 700 m |
| Max Distance (OM2, 4K60 4:4:4) | 300 m |
| Front Panel | LCD menu, jog dial, select button |
| Dimensions | 1U height x 1/2 rack width |
| Compliance | CE |
| Warranty | 3 years |
Competitor Comparison
| Criteria | Lightware HDMI20-OPTC-TX220-NTQ | Crestron HD-RXC-4KZ-101-C | Extron XTP T UWP 302 |
|---|---|---|---|
| Signal medium | Multimode optical fiber | CAT cable (DM 8G+) | CAT cable (XTP) |
| Max distance | 700m (OM3/OM4, 4K60 4:4:4) | 90m | 100m |
| Dual HDMI inputs on TX | Yes, 2x HDMI 2.0 | No | No |
| Local monitoring output | Yes | No | No |
| Video latency | 0 frames | Not specified | Not specified |
| Galvanic isolation | Yes | No | No |
| OpticalCON Quad connector | Yes | N/A | N/A |
| HDR support | HDR10, HDR12, Dolby Vision | HDR10 | HDR10 |
Frequently Asked Questions
- What is the difference between the TX220-NTQ and TX220-PCN transmitters?
- Signal performance is identical. The NTQ uses Neutrik OpticalCON Quad optical connector with IEC power; the PCN uses Neutrik OpticalCON DUO with PowerCON True1 power. Choose NTQ for quad-fiber patch panel environments; PCN for rental/staging power systems.
- Does the TX220-NTQ include the receiver?
- No. The companion receiver is the HDMI20-OPTC-RX220-NTQ, sold separately.
- Can both HDMI inputs be active simultaneously?
- Both inputs are connected simultaneously but only one is selected for fiber transmission at a time. The local HDMI output always shows the selected source.
- What fiber type provides maximum reach?
- OM3 or OM4 multimode fiber provides 700m at 4K60 4:4:4. OM2 provides 300m. OM1 does not support full 4K60 4:4:4 at any distance.
- How is EDID configured on the transmitter?
- EDID is configured using the front panel LCD menu and jog dial, or remotely via Ethernet or RS-232 control interface.
- Is there any processing delay in the signal path?
- No. The HDMI20-OPTC series maintains zero frame latency through all optical conversion stages.
- Where can I purchase the HDMI20-OPTC-TX220-NTQ?
- Available from Creation Networks, an authorized Lightware commercial AV reseller.
