Product Overview

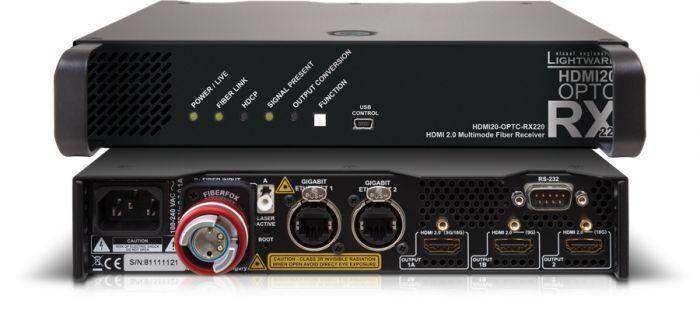

The Lightware HDMI20-OPTC-RX220-FOX is the receiver unit of the HDMI20-OPTC-TX/RX220-FOX extender pair, delivering uncompressed HDMI 2.0 4K UHD@60Hz 4:4:4 reception over a single multimode optical fiber with a Fiberfox optical connector. It is specified for installations where Fiberfox fiber connectors are the infrastructure standard — common in certain European broadcast, government, and enterprise AV environments. The unit provides the same 700-meter extension distance, zero frame latency, and full HDMI 2.0 signal fidelity as other OPTC-220 series variants.
Product Description
The HDMI20-OPTC-RX220-FOX receives 18 Gbps HDMI 2.0 video over a single optical fiber using Single Fiber Technology, carrying video, two Gigabit Ethernet paths, and bi-directional RS-232 without requiring a second fiber or copper connections. The Fiberfox optical connector provides a secure, industry-recognized termination for facilities that have standardized on Fiberfox fiber patch systems. Galvanic isolation inherent to the fiber medium eliminates ground loops between source racks and display locations in multi-room or multi-building AV distributions. Zero frame video latency is maintained through optical conversion, ensuring audio-video synchronization in systems with separate audio processing. Pixel Accurate Reclocking removes signal jitter before display output. HDR10, HDR12, and Dolby Vision are supported within the HDMI 2.0 signal envelope, and HDCP 2.2 compliance handles protected 4K content. Advanced EDID Management enforces the display's native EDID at the transmitter source.
Key Features
- Fiberfox optical connector — Industry-standard Fiberfox fiber termination for facilities with Fiberfox patch panel infrastructure.
- Single Fiber Technology — Video, two Gigabit Ethernet, and RS-232 over a single multimode fiber.
- 700-meter extension distance — Receives 4K UHD@60Hz 4:4:4 from up to 700m over OM3/OM4 multimode fiber.
- Zero frame latency — No frame buffering in the optical path; maintains AV sync in independent audio chain systems.
- Galvanic isolation — Eliminates ground loops between source and display locations.
- Pixel Accurate Reclocking — Removes jitter from long fiber runs and signal chains at the receiver output.
- HDR10, HDR12, Dolby Vision — Full HDR format support in the HDMI 2.0 signal.
- HDCP 2.2 compliant — Handles protected 4K content without handshake failures.
- Two Gigabit Ethernet paths — Separate device control and pass-through Ethernet over fiber.
- Bi-directional RS-232 — Transparent serial control to remote devices at up to 57.6 kBaud.
- Advanced EDID Management — Locks display EDID to the source for format and resolution compliance.
Typical Applications
- Broadcast studio
- Government space
- Auditorium
- Conference room
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | 91550002 |
| Unit Type | Receiver (RX) |
| Optical Connector | Fiberfox |
| Power Inlet | IEC 60320-C14 |
| Max Video Data Rate | 18 Gbps |
| Max Resolution | 4096x2160@60Hz RGB 4:4:4 (600 MHz pixel clock) |
| Video Latency | 0 frames |
| HDR | HDR10, HDR12, Dolby Vision |
| HDCP | HDCP 2.2 compliant |
| Ethernet | 2x Gigabit (control + pass-through) |
| RS-232 | Bi-directional, 9.6–57.6 kBaud, D-SUB 9 male |
| Fiber Type | Multimode LC |
| Max Distance (OM3/OM4, 4K60 4:4:4) | 700 m |
| Max Distance (OM2, 4K60 4:4:4) | 300 m |
| Laser Class | Class 3R |
| Dimensions | 1U height x 1/2 rack width |
| Compliance | CE |
| Warranty | 3 years |
Competitor Comparison
| Criteria | Lightware HDMI20-OPTC-RX220-FOX | Crestron HD-RXC-4KZ-101-C | Extron XTP T UWP 302 |
|---|---|---|---|
| Signal medium | Multimode optical fiber (Fiberfox) | CAT cable (DM 8G+) | CAT cable (XTP) |
| Max distance | 700m (OM3/OM4, 4K60 4:4:4) | 90m | 100m |
| Optical connector | Fiberfox | N/A | N/A |
| Video latency | 0 frames | Not specified | Not specified |
| Galvanic isolation | Yes | No | No |
| Max resolution | 4K UHD@60Hz 4:4:4 | 4K@60Hz 4:4:4 | 4K@60Hz 4:4:4 |
| HDR support | HDR10, HDR12, Dolby Vision | HDR10 | HDR10 |
| HDCP 2.2 | Yes | Yes | Yes |
Frequently Asked Questions
- What is the difference between the FOX, PCN, and NTQ variants?
- All three have identical signal performance. The difference is the optical connector: FOX uses a Fiberfox connector; PCN uses Neutrik OpticalCON DUO with PowerCON True1 power; NTQ uses Neutrik OpticalCON Quad. Select based on your existing fiber patch infrastructure.
- Does the RX220-FOX include the transmitter?
- No. This is the receiver unit only. The companion transmitter is the HDMI20-OPTC-TX220-FOX, sold separately.
- What fiber cable type is needed for maximum distance?
- OM3 or OM4 multimode fiber provides 700m at 4K60 4:4:4. OM2 provides 300m. OM1 is not supported at full 4K60 4:4:4.
- Is there any video latency through the extender?
- No. The HDMI20-OPTC series maintains zero frame latency. No frame buffering occurs in the optical conversion process.
- Can this unit be integrated with video wall controllers?
- Yes. Lightware documents compatibility with Corvette, Megapixel HELIOS, and Brompton video wall solutions.
- Is the unit controllable via Ethernet?
- Yes. The unit is controllable via Ethernet (TCP/IP), RS-232, and USB for device configuration and monitoring.
- Where can I purchase the HDMI20-OPTC-RX220-FOX?
- Available from Creation Networks, an authorized Lightware commercial AV reseller.
