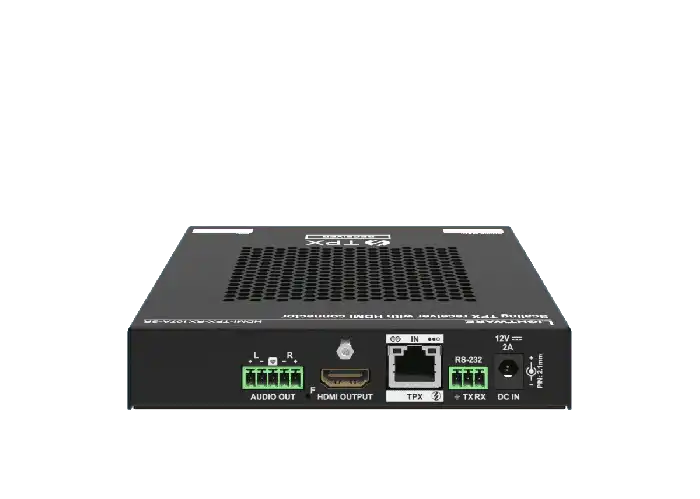

Lightware HDMI-TPX-RX107A-SR SDVoE compatible HDMI 2.0 scaling receiver - 91580014
Lightware HDMI-TPX-RX107A-SR SDVoE compatible HDMI 2.0 scaling receiver - 91580014
Roll over image to zoom in Click on image to zoom
Lightware HDMI-TPX-RX107A-SR SDVoE compatible HDMI 2.0 scaling receiver - 91580014
Lightware HDMI-TPX-RX107A-SR SDVoE compatible HDMI 2.0 scaling receiver - 91580014
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware HDMI-TPX-RX107A-SR SDVoE compatible HDMI 2.0 scaling receiver - 91580014

Availability: Call for Availability
Availability: Direct Ship
Availability: Coming Soon!
LightWare SKU: 91580014
No reviews
Price:
$950.00

Description

Expected Q3 2024

The HDMI-TPX-RX107A-SR is a scaling receiver device based on SDVoE technology that allows users to receive HDMI 2.0 compliant video, audio, and control signals coming from a compatible SDVoE transmitter (like HDMI-TPX-TX209AK extender or the MX2M-4TPX-OB matrix board from Lightware) through a direct CAT6A copper connection.

  • Offers scaling for format conversion and uninterrupted output
  • Allows for the transmission of HDMI 2.0 video, embedded audio, Ethernet, RS-232 and USB2.0 between an extender pair directly connected together
  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDR and Low Latency Dolby Vision support
General
Compliance UL, CE
Electrical safety IEC/EN/UL/CSA 62368-1:2014, Class II
EMC (emission) IEC/EN 55032:2015
EMC (immunity) IEC/EN 55035:2017
RoHS EN 63000:2018
Warranty 3 years
Operating temperature 0° to +50°C (+32° to +122°F)
Storage temperature  -30° to +80˚C (-22° to +176˚F)
Operating humidity 10% to 90%, non-condensing
Cooling passive
Power
Power supply option Power adaptor / PoE
Power consumption (max) TBD
Heat dissipation TBD
Power over Ethernet (PoE) via TPX input (IEEE802.3af) (can receive power)
Supported power source 100-240 V AC; 50/60 Hz
Supplied power 12V DC, 2A
AC power plug Interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug Locking DC connector (2.1/5.5 mm pin)
Enclosure
Rack mountable No
Enclosure material 1 mm steel
Dimensions in mm 138 W x 151.8 D x 26 H
Dimensions in inch 5.43 W x 5.98 D x 1.02 H
Weight TBD kg
Video Inputs
TPX Input
Connector type RJ45 connector
Power over Ethernet (PoE) IEEE 802.3af (PD)
Compliance SDVoE (point-to-point)
HDCP compliance HDCP2.3
Transferred signals Video, Audio, RS-232, Infrared, Ethernet
Color space RGB, YCbCr
Video delay 0 frame
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
* The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels.
Video Outputs
HDMI Output
Connector type 19-pole HDMI Type A receptacle
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance HDCP 2.3
Color space RGB, YCbCr
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
Scaling Scaling to EDID preferred resoltion or custom resolution with the following limitations:
* When scaling is used, the scaler output is always RGB 8 bit/component.
* A picture with resolution of 3840 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, or 1200 x 1600 when the aspect ratio is kept by utilizing letterbox.
* A picture with resolution of 4096 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, 1200 x 1600, 1280 x 768, 1680 x 1050, or 1900x1200 when the aspect ratio is kept by utilizing letterbox.
* All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported.
Audio Ports
Analog Audio Output
Connector type 5-pole Phoenix connector
Audio formats 2-ch PCM
Sampling frequency 48 kHz
Volume -78 dB - 0 dB
Balance 0 - 100 (50 = center)
Nominal Differential Output Level @ 0 dB Gain +4 dBu
Nominal Differential Output Level @ 3 dB Gain +7 dBu
Control Ports
RS-232 serial port
Connector type 3-pole Phoenix connector
Baud rates Between 4800 and 115200 Baud
Data bits 8 or 9
Parity None / Odd / Even
Stop bits 1 / 1.5 / 2
Ethernet port
Connector type RJ45 female connector (2)
Ethernet data rate 10/100/1000Base-T, full duplex with autodetect
Power over Ethernet (PoE) No
