Lightware HDMI-TPS-TX96 TPS extender for single CATx cable - 91540067

Product Overview

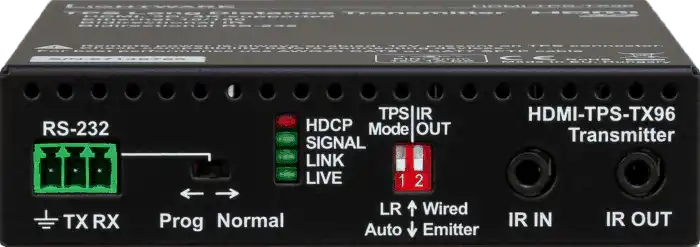

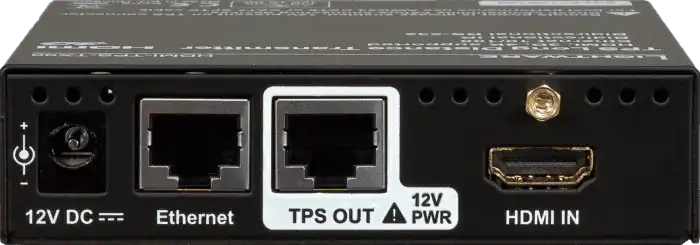

The Lightware HDMI-TPS-TX96 (part number 91540067) is a professional HDBaseT transmitter that extends HDMI signals, RS-232, and IR control over a single Cat5e/6/7 cable. It is the transmitter half of the TPS-TX96/RX96 extender pair, designed for fixed AV installations where long cable runs between the equipment rack and display are required. Unlike the TX97 model, the TX96 does not include PoE output, making it the appropriate choice when the receiver will have its own local power supply.

Product Description

The TX96 transmits HDMI video (4K/30Hz or 1080p/60Hz at full distance), RS-232, and IR over standard CATx infrastructure using HDBaseT technology. HDCP 2.2 compliance ensures protected content is handled correctly throughout the extension path. EDID management is configurable via Lightware Device Controller, allowing integrators to assign and emulate EDID profiles independent of the downstream display state.

The TX96 works within Lightware's TPS ecosystem and integrates with Lightware MX matrix switchers and DA distribution amplifiers for scalable signal distribution architectures. Available from Creation Networks. Pair with the HDMI-TPS-RX96 receiver for a complete extender solution.

Key Features

• HDBaseT transmission over single Cat5e/6/7 cable up to 100 meters
• HDMI input supporting 4K/60Hz source signals
• HDCP 2.2 compliant
• RS-232 and IR pass-through over CATx
• EDID management via Lightware Device Controller
• No PoE — receiver requires local power supply (see HDMI-TPS-TX97 for PoE option)
• Compatible with Lightware MX and DA infrastructure

Typical Applications

• Conference rooms where AV rack is remote from the display wall plate
• Digital signage installations with centrally racked media players
• Lecture theaters and training rooms with in-wall CATx infrastructure
• Retail display environments with structured CATx cabling
• Fixed installations where the receiver location has accessible power

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What is the difference between the TX96 and TX97?

The HDMI-TPS-TX97 includes PoE output to power the paired receiver over the CATx cable. The TX96 does not include PoE — the paired RX96 receiver requires a local power supply at the display end. Choose the TX96 when the receiver location has accessible power and you want a lower-cost transmitter.

What resolution can I achieve at 100 meters?

At 100 meters on Cat6 or Cat7, 1080p/60Hz is the reliable maximum. For 4K content, the maximum usable distance is reduced. Refer to Lightware's distance tables for 4K/30Hz specifications.

Can I connect the TX96 to a Lightware matrix switcher TPS output?

The TX96 is designed as a standalone transmitter with an HDMI input. For matrix switcher integration, Lightware's MX series boards include TPS outputs directly. Consult Creation Networks for system design guidance.

Does the RS-232 pass-through work bidirectionally?

Yes. RS-232 data passes in both directions over the CATx link, enabling bidirectional communication between a control system at the source end and a display or device at the receiver end.

What CATx cable standard gives the best performance?

Cat6 or Cat7 shielded cable is recommended for maximum distance and immunity to electrical interference. Cat5e is acceptable for shorter runs in low-interference environments.

Is the TX96 compatible with the RX97 receiver?

For basic HDBaseT signal extension, cross-compatibility is possible since both follow the HDBaseT standard. However, PoE and advanced control features are only fully supported when using matched TX96/RX96 or TX97/RX97 pairs.
