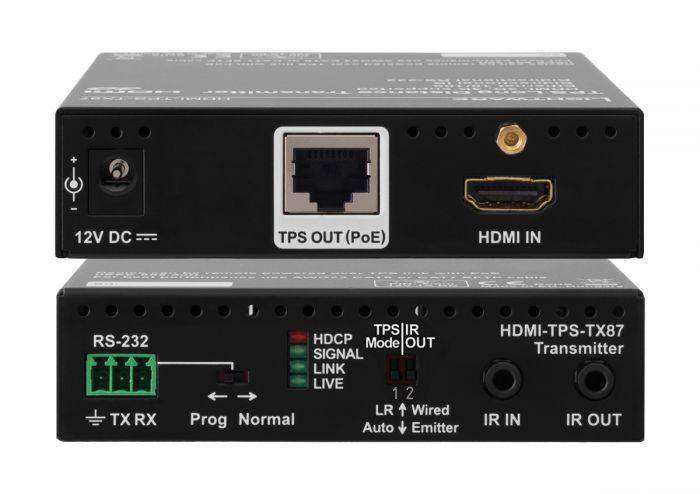

Lightware HDMI-TPS-TX87 TPS extender for single CATx cable with Poe - 91540084
Roll over image to zoom in Click on image to zoom
Lightware HDMI-TPS-TX87 TPS extender for single CATx cable with Poe - 91540084
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware HDMI-TPS-TX87 TPS extender for single CATx cable with Poe - 91540084

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91540084
No reviews
Price:
$385.00

Description

HDMI-TPS-TX87 and HDMI-TPS-RX87 twisted pair HDBaseT™ compatible extenders provide extension of uncompressed 4K/UHD video with embedded audio (up to eight channel PCM or HBR audio) for long distances over a single CATx cable. The unit offers bi-directional RS-232 and IR pass-through on the same CATx cable that carries the video signal. The TPS extenders support full HDCP and EDID compliance and work on all standard AV resolutions up to 4K and 48-bit color depth handling all standard audio formats and also 120 Hz 3D signals. PoE 48V remote powering is available through a single CATx cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone.

The auto operation mode allows the device to detect the far end extender’s mode and adopt it. If the far end device is in Auto mode or it is a third party HDBaseT™ device the link will be set to HDBT mode. If the far device is in forced Long Reach Mode then the auto operation will set the Link to Long Reach Mode. The IR OUT can operate in either Wired (unmodulated) or Emitter (modulated) mode.

HDMI-TPS-TX87 and HDMI-TPS-RX87 are compatible with HDBaseT™ extenders and matrix switchers.

Applications

  • Post production studios
  • Control room
  • Digital Signage
  • Multiroom video
  • Conference rooms, collaborative telepresence
  • Extends DVI or HDMI 1.4 + Audio + RS-232 + IR over one CAT5/6/7 cable
  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • Supports deep color signals (24/30/36 bit RGB/YCbCr 4:4:4)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Supports all VESA and HDTV resolutions
  • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
  • Bi-directional RS-232 extension (pass-through)
  • HDCP 2.2 compliant (transparent pass-through)
  • Compatible with 120 Hz 3D video signals
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • Selectable operation mode (Auto or forced Long Reach mode)
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Selectable IR output mode for emitter or wired connectivity
  • Transparent EDID pass-through
  • Bi-directional IR extension (pass-through)
  • CEC support (pass-through)
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Bi-directional RS-232 and IR extension (pass-through)
  • Status LEDs (Live, TPS link, signal and HDCP detect)
  • Twist-and-lock DC power connector
  • Low power mode (standby)
  • External universal power adaptor
  • Mounting options for rack, furniture or truss
Specifications
Data rate: 3.4 Gbps per color
Resolution: All HDMI 1.4a resolutions supported
Equalization: Adaptive, automatic
EDID support: Transparent
HDCP pass through: Yes
RS-232 pass through: Yes
IR pass through: Yes
Power: Universal power adaptor, DC 12 V 2.5 A OR PoE 48V
Overall signal delay: 10µs (including 100m CATx cable)
Power consumption (-RX): 5.3 W (typ) 6.1 W (max)
Enclosure: 1 mm metal
Dimensions: 100.4 W x 100.4 D x 26 H mm
Weight: 330 g / product
Compliance: CE
Warranty: 3 years



Connectors
TX input, RX output: HDMI connector
TX output, RX input: RJ45 (TPS interface)
IR In, out: 3.5mm TRS connector (1/8’’ mini-jack)
Serial port: 3-pole PHOENIX
Power: Locking DC connector (2.1 / 5.5 mm)



Max cable lengths with the available firmware versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.



 Product variants
Wall panels WP-HDMI-TPS-RX97-EU
WP-HDMI-TPS-RX97-US
WP-HDMI-TPS-RX97-EUROMOD
WP-HDMI-TPS-RX97-UK
WP-HDMI-TPS-TX97-EU
WP-HDMI-TPS-TX97-US
WP-HDMI-TPS-TX97-EUROMOD
WP-HDMI-TPS-TX97-UK
Floor panels FP-HDMI-TPS-RX97-GB3
FP-HDMI-TPS-RX97-LEGRAND
FP-HDMI-TPS-TX97-GB3
FP-HDMI-TPS-TX97-LEGRAND
