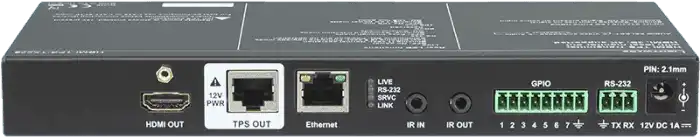

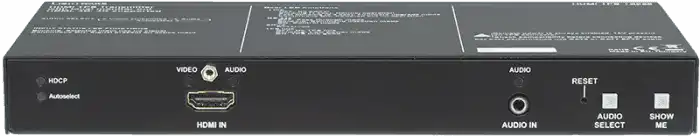

Lightware HDMI-TPS-TX226 TPS Extender with DC 12V Remote Power - 91540080

The HDMI-TPS-TX226 is an all-round video, audio and control transmitter transferring over a single CAT cable up to a range of 170 meters dynamic and fixed environments such as small board rooms and classrooms, with remote power capabilities via DC 12V up to 30 meters to further simplify the AV system design, integration and operation.

The extender was designed to handle HDMI 1.4 digital video signals and analog stereo audio from local inputs or HDMI embedded audio up to 8 Channel PCM or HBR audio. Analog audio is converted to a digital format. The device has a local video output. The video and the embedded audio of the local output is the same as transmitted via TPS link.

The HDMI-TPS-TX226 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID management forces the required resolution from any video source and fixes the output format to conform to the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission.

Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT5e or better cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used in standalone formats. HDMI-TPS-TX226 is compatible with both the HDBaseT extenders and matrix switchers.

Applications

• Small classrooms
• Conference rooms, meeting rooms
• Control rooms
• Home cinemas

• MX Series matrix frames with MX-TPS-IB
• DVI-HDCP-TPS-RX95
• HDMI-TPS-RX95
• HDMI-TPS-RX96
• DVI-HDCP-TPS-RX96

• Built-in Event Manager control automation feature
• Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
• 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
• HDCP enable/disable function on input
• HDCP 1.4 compliant
• Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
• No signal latency, zero frame delay
• TPS link quality and cable length monitoring
• Adjustable analog audio settings (volume, gain, balance)
• Audio embedding (or replace original audio)
• Dual output with built-in distribution amplifier
• Firmware upgrade through Ethernet
• Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
• Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
• Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
• HDBaseT compatible
• Ethernet extension (100 Mbps)
• Advanced EDID Management
• Pixel Accurate Reclocking
• Command injection on RS-232 and IR ports
• GPIO control ports
• Device control via Ethernet (TCP/IP) and RS-232
• Multiple TCP/IP connections
• Intuitive control software for device configuration
• Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
• No video compression
• Built-in video test pattern generator
• Bi-directional RS-232 and IR extension (pass-through)
• Bi-directional RS-232 and IR extension (pass-through and control)
• Twist-and-lock DC power connector
• Frame Detector (analyze detailed video timings)
• Local or remote (remote-send / remote-receive) power source
• External universal power adaptor
• 3,5mm audio jack input
• Mounting options for rack, furniture or truss
