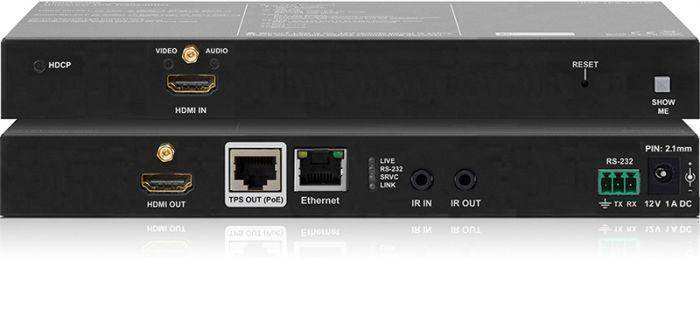

The HDMI-TPS-TX210 is a compact video, audio and control transmitter for use over a single CAT cable up to 170 meter distance for ever-changing environments such as small board rooms and classrooms. The extender was designed to handle HDMI1.4 digital video, embedded audio and control signals.

The HDMI-TPS-TX210 handles HDCP encryption. Using the factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conformto the system requirements. The unit offers bi-directional and transparent IR, RS232 and Ethernet transmission. Furthermore the RS232 and IR connection supports command injection. Remote powering is available through the single CAT 5e ... CAT 7 cable, but a local power supply can also be used. All devices can be mounted on a rack shelf or used standalone. HDMI-TPS-TX210 is compatible with both the HDBaseT extenders and matrix switchers.

Applications

  • Small classrooms
  • Conference rooms, meeting rooms
  • Control rooms
  • Home cinemas

Compatible products

  • MX Series matrix frames with MX-TPS-IB or MX-TPS2-IB
  • DVI-HDCP-TPS-RX95
  • HDMI-TPS-RX95
  • TPS-PI-1P1
  • MMX6x2-HT200
  • MMX6x2-HT210
  • MMX6x2-HT220
  • Built-in Event Manager control automation feature
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • HDCP enable/disable function on input
  • HDCP 1.4 compliant
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • TPS link quality and cable length monitoring
  • Dual output with built-in distribution amplifier
  • Firmware upgrade through Ethernet
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Advanced EDID Management
  • Pixel Accurate Reclocking
  • Command injection on RS-232 and IR ports
  • Device control via Ethernet (TCP/IP) and RS-232
  • Multiple TCP/IP connections
  • Intuitive control software for device configuration
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Built-in video test pattern generator
  • Bi-directional RS-232 and IR extension (pass-through)
  • Bi-directional RS-232 and IR extension (pass-through and control)
  • Twist-and-lock DC power connector
  • Frame Detector (analyze detailed video timings)
  • External universal power adaptor
  • Mounting options for rack, furniture or truss
Specifications
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz
Digital audio formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization: Automatic max 20 m
EDID emulation: Yes, Advanced EDID Management
EDID memory: 120 factory preset, 15 user programmable
HDCP pass-through: Yes
RS-232 pass-through: Yes, configurable
RS-232 (control option): 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (through CATx)(default: 57600)
Local power: Universal power adaptor, DC 12V 2.5A
Power over TPS: DC 48V 1 A
Power consumption: 8W (typ)
Enclosure: 1 mm metal
Dimensions: 221 W x 100.4 D x 26 H mm
Compliance: CE
Warranty: 3 years



Connectors
Digital video input: HDMI connector
Digital video output: HDMI connector
Ethernet: 1 x RJ45
IR: 3.5 mm jack
TPS output: 1 x RJ45
Serial port: 3-pole PHOENIX
Power: Locking DC connector (2.1 / 5.5 mm)



Max cable lengths with the available firmware versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
  1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
  1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
  1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
  3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
  4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
