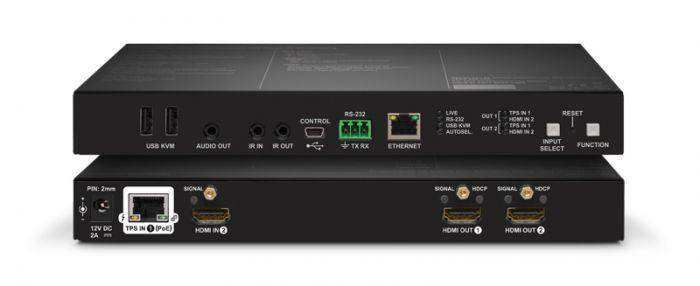

Lightware HDMI-TPS-RX220AK HDBaseTTM Compatible TPS Receiver with USB KVM - 91540022
Roll over image to zoom in Click on image to zoom
Lightware HDMI-TPS-RX220AK HDBaseTTM Compatible TPS Receiver with USB KVM - 91540022
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware HDMI-TPS-RX220AK HDBaseTTM Compatible TPS Receiver with USB KVM - 91540022

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91540022
No reviews
Price:
$1,190.00

Description

The Lightware HDMI-TPS-RX220AK receiver offers seamless HDBaseT™ integration with additional Lightware product lines and developments, including TPS matrices and 25G boards. The device receives digital video at a resolution up to 4K, as well as audio and control up to 170 meters* over a single CAT cable.

The extender features audio de-embedding and allows independent switching between the TPS input and local HDMI input, which combined with the two HDMI outputs essentially makes this device a 2x2 matrix switcher.

Furthermore, the device utilizes control over USB KVM in a point-to-point extension when connected to the UMX-TPS-TX140K transmitter, and can also be remotely powered over TPS link with PoE (IEEE 802.3af), a useful array of features to further simplify the operation for system integrators and users.

Applications

  • Classrooms
  • Meeting and conference rooms
  • Control room
  • Home cinema

Compatible Products

  • MX Modular matrix frames - MX-TPS/TPS2-OB
  • 25G Modular matrix frames - 25G-TPS2-OB
  • Standalone TPS matrix frames – MMX6x2-HT series
  • TPS Transmitters:
  • HDMI-TPS-TX95/97
  • DVI-HDCP-TPS-TX95/97
  • UMX-TPS-TX100 series
  • WP-UMX-TPS-TX100 series
  • SW4-TPS-TX240
  • HDMI-TPS-TX200 series
  • DP-TPS-TX200 series
  • Single port standalone TPS power injector – TPS-PI-1P1

Advanced Control Pack Features

  • 100 available event slots in ’Plus’ extenders
  • Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
  • Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
  • Support to send CEC commands on HDMI ports for control of other devices.
  • Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.
  • Local HDMI Input
  • Cisco VC room integration compatibility
  • Advanced control feature pack for 3rd party video conference collaboration
  • Can be remote powered through CATx cable (PoE PD)
  • HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
  • Built-in Event Manager control automation feature
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • HDCP 1.4 compliant
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • TPS link quality and cable length monitoring
  • Adjustable analog audio settings (volume, gain, balance)
  • Audio de-embedding
  • USB KVM (HID) extension
  • Balanced analog audio output for audio de-embedding
  • Firmware upgrade through Ethernet
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Advanced EDID Management
  • Pixel Accurate Reclocking
  • Command injection on RS-232 and IR ports
  • Device control via Ethernet (TCP/IP) and RS-232
  • Multiple TCP/IP connections
  • Intuitive control software for device configuration
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Built-in video test pattern generator
  • Bi-directional RS-232 and IR extension (pass-through and control)
  • Twist-and-lock DC power connector
  • Frame Detector (analyze detailed video timings)
  • External universal power adaptor
  • Mounting options for rack, furniture or truss
Specifications
Resolution:

Up to 4K UHD 3840×2160@30Hz,1600x-1200@60Hz, FullHD 1920x1080@60Hz
Digital audio formats:

Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization: Automatic max 170 m*
EDID emulation: Yes, Advanced EDID Management
EDID memory: 120 factory preset, 15 user programmable
HDCP pass through: Yes
RS-232 pass-through: Yes, configurable
RS-232 (control option):

9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through TPS)(default: 57600)
Local power: 2-pole, DC 12V, 1A
Power over TPS: DC 48V, 0.3A
Power consumption:  max. 10 W
Dimensions: 221 W x 100.4 D x 26 H mm
Enclosure: 1 mm metal
Weight: 610 g / product
Compliance: CE
Warranty: 3 years
 *Depends on cable category and quality



Connectors
Digital video output: 2 x HDMI connector
Digital video output: 1 x HDMI connector
Balanced audio output: 3.5mm jack
Ethernet: 1 x RJ45

USB device:

 2 x USB-A
USB control: mini-USB-B connector
IR in and out: 3.5mm jack
TPS input 1 x RJ45
Serial port: 3-pole Phoenix (Euroblock)
Power:

Locking DC connector (2.1 / 5.5 mm)



Analog Audio Output
Volume: -57 .. 0 dB
Mute function: yes
Balance: -100 .. 0 .. 100%



Max Cable Lengths with the Available Firmware Versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
