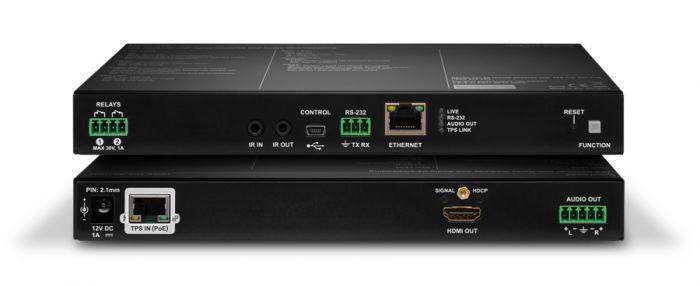

Lightware HDMI-TPS-RX110AY-Plus HDBaseT™ Receiver with Relay Modules and Balanced Audio Out - 91540070
Roll over image to zoom in Click on image to zoom
Lightware HDMI-TPS-RX110AY-Plus HDBaseT™ Receiver with Relay Modules and Balanced Audio Out - 91540070
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware HDMI-TPS-RX110AY-Plus HDBaseT™ Receiver with Relay Modules and Balanced Audio Out - 91540070

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91540070
No reviews
Price:
$1,090.00

Description

This dual relay capable HDBaseT™ compatible TPS receiver has one PoE capable TPS input and one HDMI output, and features audio de-embedding.

The HDMI audio is de-embedded to the balanced audio output via a Phoenix (Euroblock) connector, the audio port has volume control. The unit is HDCP compliant and has 4K/UHD and 3D capabilities. The built-in Event Manager room control feature provides the necessary control in a less complex application environment. Both the Event Manager feature and the dual relay module of the device are configurable via the freely available Lightware Device Controller software. USB, RS-232, IR (in and out) and Ethernet ports provide further connection options for control.

Applications

  • Classrooms
  • Meeting and conference rooms
  • Control room
  • Home cinema

Advanced Control Pack Features

  • 100 available event slots in ’Plus’ extenders
  • Support RS-232 protocol for communication and control of third party devices like VC codecs. This allows the Cisco Room Kit login on RS-232–USB connection.
  • Support to receive CEC commands for control of displays and Lightware Event Manager to automate room actions.
  • Support to send CEC commands on HDMI ports for control of other devices.
  • Support true Infrared messages using HEX codes to control TVs, media players and other devices with IR emitters.
  • Cisco VC room integration compatibility
  • Advanced control feature pack for 3rd party video conference collaboration
  • Can be remote powered through CATx cable (PoE PD)
  • HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant
  • Built-in Event Manager control automation feature
  • Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • HDCP 1.4 compliant
  • Uncompressed video up to 9 Gbps datarate (300 MHz pixel clock)
  • No signal latency, zero frame delay
  • TPS link quality and cable length monitoring
  • Adjustable analog audio settings (volume, gain, balance)
  • Audio de-embedding
  • Balanced analog audio output for audio de-embedding
  • Firmware upgrade through Ethernet
  • Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
  • Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
  • Extension distance up to 170 meters (with CAT7 S/FTP AWG23 cable, 1920x1080p60)
  • HDBaseT compatible
  • Ethernet extension (100 Mbps)
  • Advanced EDID Management
  • Pixel Accurate Reclocking
  • Command injection on RS-232 and IR ports
  • Device control via Ethernet (TCP/IP) and RS-232
  • Multiple TCP/IP connections
  • Intuitive control software for device configuration
  • Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
  • No video compression
  • Built-in video test pattern generator
  • Bi-directional RS-232 and IR extension (pass-through and control)
  • Twist-and-lock DC power connector
  • Frame Detector (analyze detailed video timings)
  • External universal power adaptor
  • 2x Relay modules
  • 5-pole Phoenix balanced analog audio connectors
  • Mounting options for rack, furniture or truss
Specifications
Resolution:

Up to 4K UHD 3840×2160@30Hz,1600x-1200@60Hz, FullHD 1920x1080@60Hz
Digital audio formats:

Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization: Automatic max 170 m*
EDID emulation: Yes, Advanced EDID Management
EDID memory: 120 factory preset, 15 user programmable
HDCP pass through: Yes
RS-232 pass-through: Yes, configurable
RS-232 (control option):

9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through TPS)(default: 57600)
Local power: 2-pole, DC 12V, 1A
Power over TPS: DC 48V, 0.3A
Power consumption:  max. 10 W
Dimensions: 221 W x 100.4 D x 26 H mm
Enclosure: 1 mm metal
Weight: 610 g / product
Compliance: CE
Warranty: 3 years
 *Depends on cable category and quality



Connectors
Digital video output: HDMI connector
Balanced audio output: 5-pole Phoenix (Euroblock) connector
Relays: 2×2-pole Phoenix (Euroblock) connector
Ethernet: RJ45

IR in and out:

 3.5mm jack
TPS input RJ45
Serial port: 3-pole Phoenix (Euroblock)
Power:

Locking DC connector (2.1 / 5.5 mm)



Analog Audio Output
Volume: -57 .. 0 dB
Mute function: yes
Balance: -100 .. 0 .. 100%



Max Cable Lengths with the Available Firmware Versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
*with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
