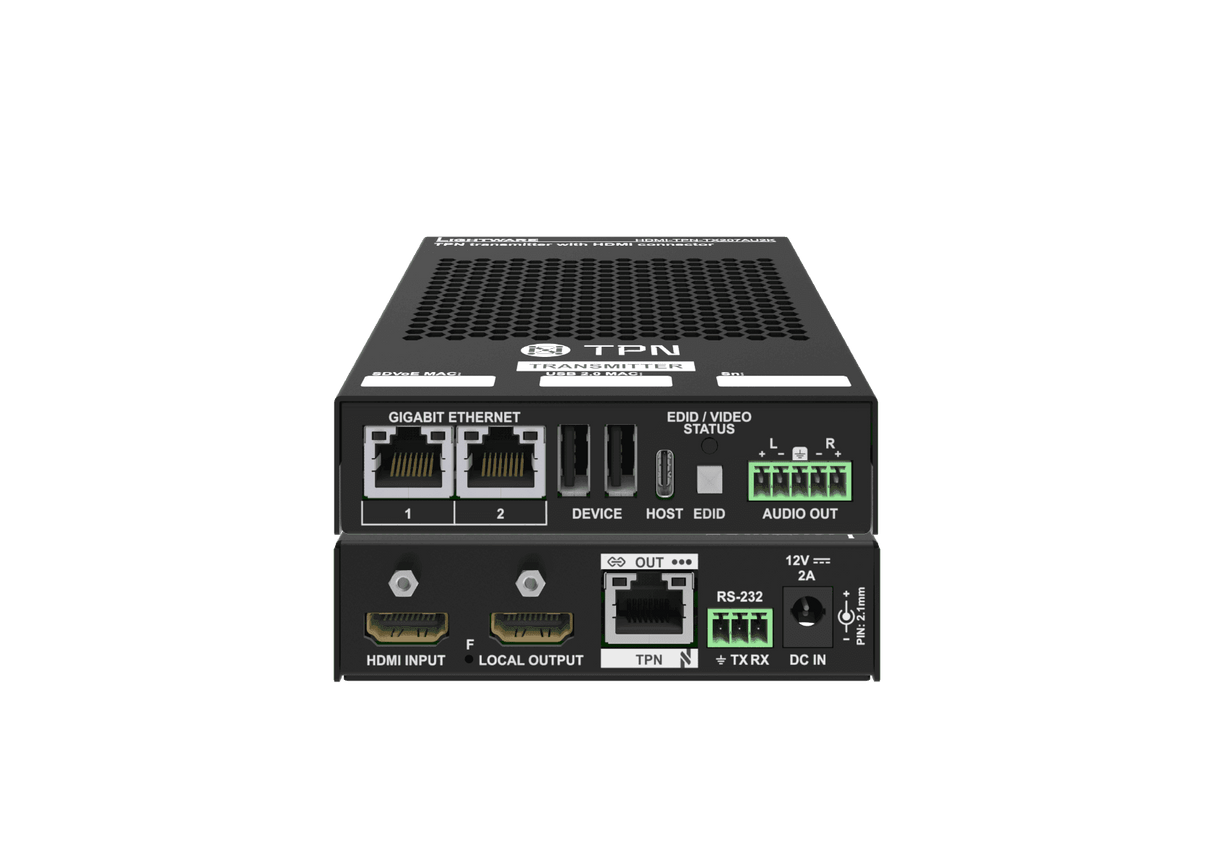

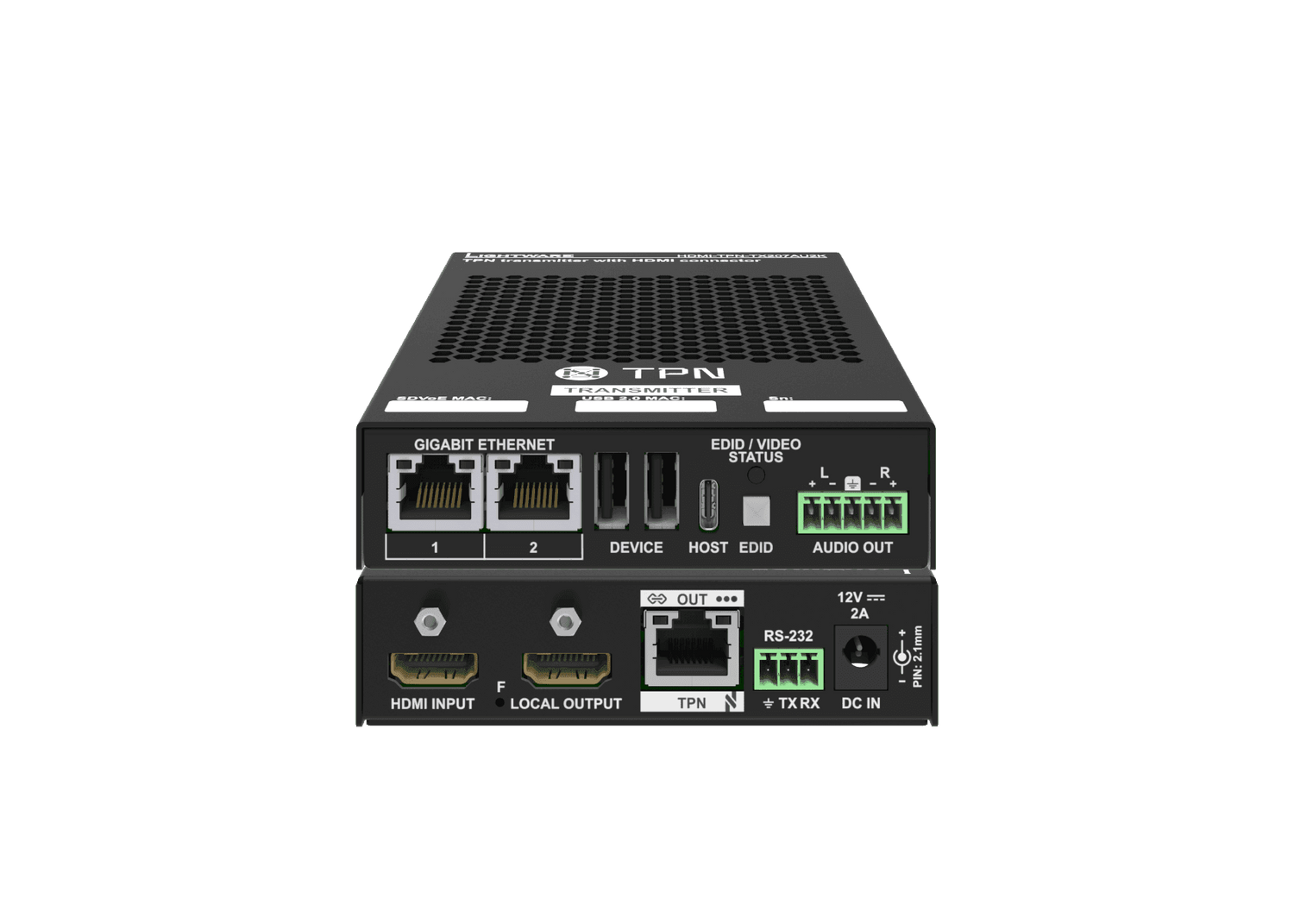

Lightware HDMI-TPN-TX207AU2K SDVoE compatible HDMI 2.0 transmitter - 91710001

LightWare SKU: 91710001
No reviews

Price:
Sale price$1,070.00

Description

The HDMI-TPN-TX207AU2K and HDMI-TPN-RX107AU2K transmitter and receiver devices are based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to multiple destinations through 10G Ethernet networks. Moreover, these USB2.0 capable extenders also allow transparent and composite USB2.0 transmission in the opposite direction.

  • Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, RS-232 and USB2.0 between a single source and multiple sinks through a 10G Ethernet switch
  • Transparent USB transmission mode (for various USB2.0 devices including cameras, microphones, and touch screens) and composite USB transmission mode (for USB-HID devices)
  • Plug&Play compatible with Lightware TPX devices
  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDR and Low Latency Dolby Vision support
General
Compliance UL, CE
Electrical safety IEC/EN/UL/CSA 62368-1:2014, Class II
EMC (emission) IEC/EN 55032:2015
EMC (immunity) IEC/EN 55035:2017
RoHS EN 63000:2018
Warranty 3 years
Operating temperature 0° to +50°C (+32° to +122°F)
Storage temperature  -30° to +80˚C (-22° to +176˚F)
Operating humidity 10% to 90%, non-condensing
Cooling passive
Power
Power supply option Power adaptor / PoE
Supported power source
Power consumption (max) TBD
Power consumption (min)
Heat dissipation TBD BTU/h (max)
AC power connector
AC fuse
Power over Ethernet (PoE) via TPN output (IEEE802.3af) (can receive power)
Power adaptor
Supported power source 100-240 V AC; 50/60 Hz
Supplied power 12V DC, 2A
AC power plug Interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug Locking DC connector (2.1/5.5 mm pin)
Enclosure
Rack mountable No
Enclosure material 1 mm steel
Dimensions in mm 100.4 W x 151.8 D x 26 H
Dimensions in inch 3.95 W x 5.98 D x 1.02 H
Weight TBD kg
Video inputs
HDMI input
Connector type 19-pole HDMI Type A receptacle
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance HDCP 2.3
Color space RGB, YCbCr
Video delay 0 frame
Supported resolutions at 8 bits/color *
  up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color
Reclocking Pixel Accurate Reclocking
3D support yes
Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

Input cable equalization
* The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels.
Video Outputs Értékek
HDMI output
Connector type 19-pole HDMI Type A receptacle
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance HDCP 2.3
Color space RGB, YCbCr
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color

Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

* All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported.
TPN output
Connector type RJ45 connector
Power over Ethernet (PoE) IEEE 802.3af (PD)
Compliance SDVoE
HDCP compliance HDCP2.3
Transferred signals Video, Audio, RS-232, Infrared, Ethernet
Color space RGB, YCbCr
Video delay 0 frame
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color

Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio


* The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels.
Analog audio output
Connector type 5-pole Phoenix connector
Audio formats 2-ch PCM
Sampling frequency 48 kHz
Volume -78 dB - 0 dB
Balance 0 - 100 (50 = center)
Nominal Differential Output Level @ 0 dB Gain +4 dBu
Nominal Differential Output Level @ 3 dB Gain +7 dBu
USB port
Connector type 2x USB-A female (device)
USB compliance USB2.0
Device class all
Powering Max 1.45A@5V (total)
USB port
Connector type 1x USB-C female (host)
USB compliance USB2.0
Device class n.a.
Powering n.a.
Control Ports
RS-232 serial port
Connector type 3-pole Phoenix connector
Baud rates Between 4800 and 115200 Baud
Data bits 8 or 9
Parity None / Odd / Even
Stop bits 1 / 1.5 / 2
Ethernet port
Connector type 2x RJ45 female connector
Ethernet data rate 10/100/1000Base-T, full duplex with autodetect
Power over Ethernet (PoE) No
