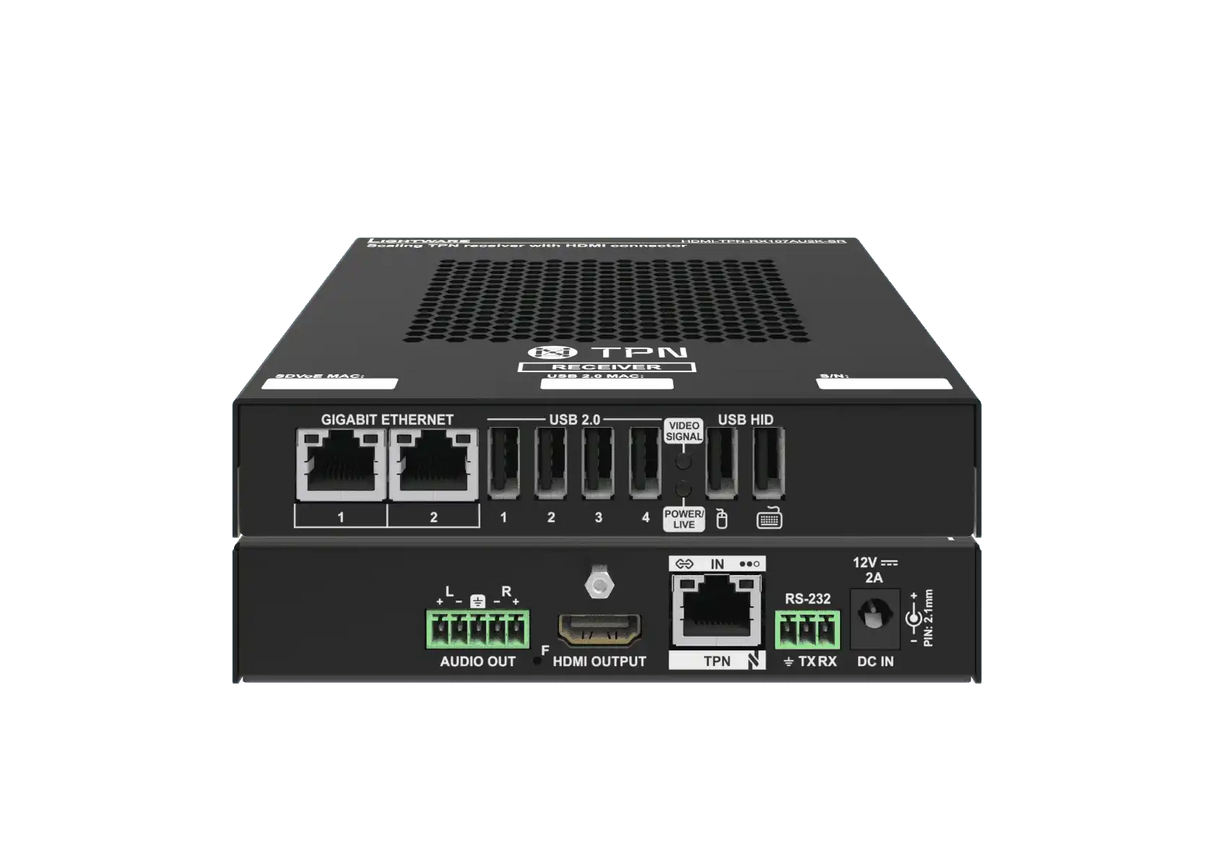

Lightware HDMI-TPN-RX107AU2K SDVoE compatible HDMI 2.0 scaling receiver - 91710002

LightWare SKU: 91710002
No reviews

Price:
Sale price$1,070.00

Description

The HDMI-TPN-RX107AU2K-SR scaling receiver device is based on SDVoE technology. When installed in a networked environment with corresponding TPN transmitters or SDVoE- compatible third-party TX units, the HDMI-TPN-RX107AU2K-SR allows users to receive HDMI 2.0 compliant video, audio and control signals from compatible transmitters through 10G Ethernet networks. Moreover, this USB2.0 capable extender also allows transparent and composite USB2.0 transmission in the opposite direction.

  • Plug&Play compatible with Lightware TPX devices
  • Transparent USB transmission (for various USB2.0 devices including cameras, microphones, and touch screens) and composite USB transmission (for USB-HID devices) when connected to USB2.0 comlpiant extenders (e.g. HDMI-TPN-TX207AU2K or USB20-1GBE-HS10
  • By utilising rescaling, provides fast and seamless switching (with appropriate HDCP and signal format settings)
  • Allows for the reception of HDMI 2.0, embedded audio, Ethernet, and RS-232 from compatible TPN transmitters through a 10G Ethernet switch
  • HDR and Low Latency Dolby Vision support when no scaling is applied
  • Supports rescaling either to the EDID of the connected display, or to custom resolutions
  • Can be remote powered through CATx cable (PoE PD)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
General
Compliance UL, CE
Electrical safety IEC/EN/UL/CSA 62368-1:2014, Class II
EMC (emission) IEC/EN 55032:2015
EMC (immunity) IEC/EN 55035:2017
RoHS EN 63000:2018
Warranty 3 years
Operating temperature 0° to +50°C (+32° to +122°F)
Storage temperature  -30° to +80˚C (-22° to +176˚F)
Operating humidity 10% to 90%, non-condensing
Cooling passive
Power
Power supply option Power adaptor / PoE
Power consumption (max) TBD
Heat dissipation TBD
Power over Ethernet (PoE) via TPX input (IEEE802.3af) (can receive power)
Supported power source 100-240 V AC; 50/60 Hz
Supplied power 12V DC, 2A
AC power plug Interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug Locking DC connector (2.1/5.5 mm pin)
Enclosure
Rack mountable No
Enclosure material 1 mm steel
Dimensions in mm 138 W x 151.8 D x 26 H
Dimensions in inch 5.43 W x 5.98 D x 1.02 H
Weight TBD kg
Video Inputs
TPX Input
Connector type RJ45 connector
Power over Ethernet (PoE) IEEE 802.3af (PD)
Compliance SDVoE (point-to-point)
HDCP compliance HDCP2.3
Transferred signals Video, Audio, RS-232, Infrared, Ethernet
Color space RGB, YCbCr
Video delay 0 frame
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
* The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels.
Video Outputs
HDMI Output
Connector type 19-pole HDMI Type A receptacle
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance HDCP 2.3
Color space RGB, YCbCr
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color
Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio
Scaling Scaling to EDID preferred resoltion or custom resolution with the following limitations:
* When scaling is used, the scaler output is always RGB 8 bit/component.
* A picture with resolution of 3840 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, or 1200 x 1600 when the aspect ratio is kept by utilizing letterbox.
* A picture with resolution of 4096 x 2160 cannot be scaled down to 640 x 480, 800 x 600, 960 x 1280, 1024 x 768, 1050 x 1400, 1200 x 1600, 1280 x 768, 1680 x 1050, or 1900x1200 when the aspect ratio is kept by utilizing letterbox.
* All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported.
Audio Ports
Analog Audio Output
Connector type 5-pole Phoenix connector
Audio formats 2-ch PCM
Sampling frequency 48 kHz
Volume -78 dB - 0 dB
Balance 0 - 100 (50 = center)
Nominal Differential Output Level @ 0 dB Gain +4 dBu
Nominal Differential Output Level @ 3 dB Gain +7 dBu
USB port
Connector type 2x USB-A female (device, composite mode)
USB compliance USB2.0
Device class HID
Powering Max 0.325A@5V (total)
USB port
Connector type 4x USB-A female (device, transparent mode)
USB compliance USB2.0
Device class Audio, Video, Mass Storage, HID, HUB, Smart Card, Vendor specific
Powering  Max 1.08A@5V (per port), Max 1.75A@5V (total)
Control Ports
RS-232 serial port
Connector type 3-pole Phoenix connector
Baud rates Between 4800 and 115200 Baud
Data bits 8 or 9
Parity None / Odd / Even
Stop bits 1 / 1.5 / 2
Ethernet port
Connector type RJ45 female connector (2)
Ethernet data rate 10/100/1000Base-T, full duplex with autodetect
Power over Ethernet (PoE) No
