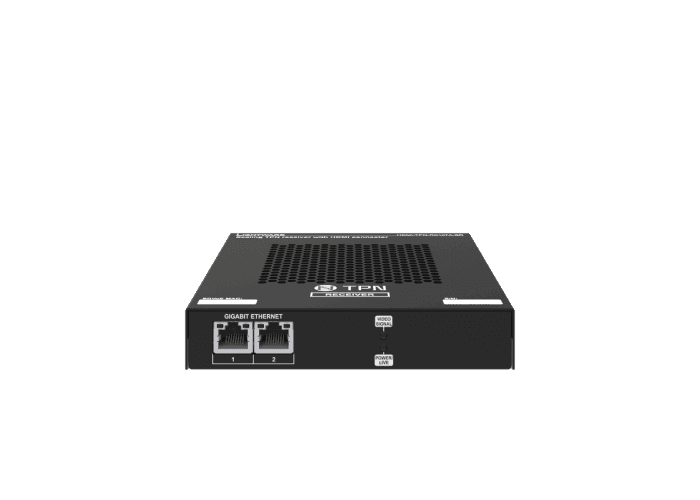

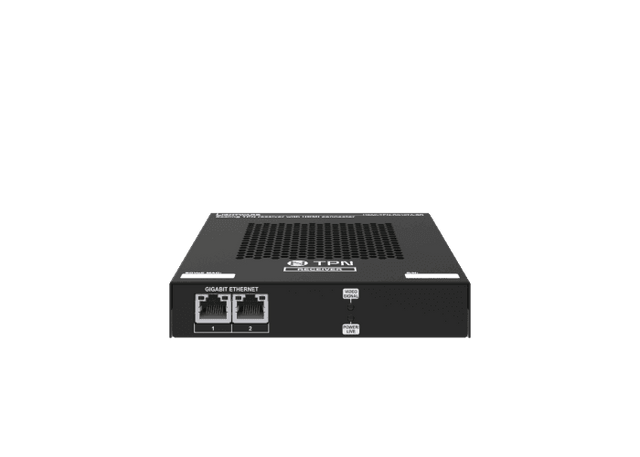

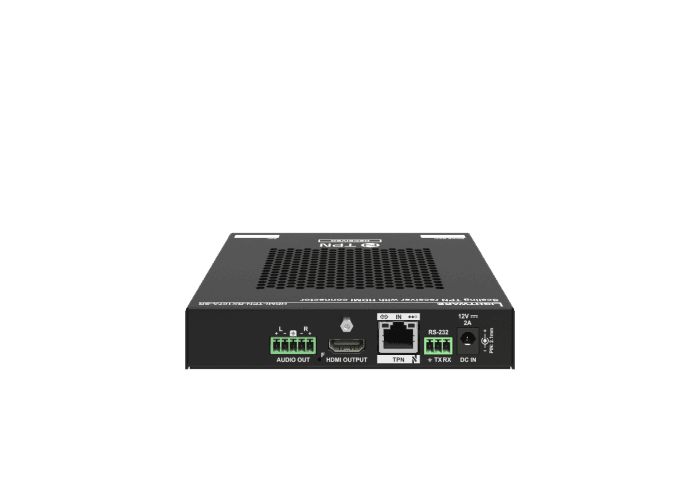

Lightware HDMI-TPN-RX107A-SR SDVoE compatible HDMI 2.0 scaling receiver - 91710006

Product Overview

The Lightware HDMI-TPN-RX107A-SR is an SDVoE-compatible HDMI 2.0 scaling receiver designed for zero-latency AV-over-IP distribution in professional installations. It accepts a 10GbE network signal and outputs HDMI 2.0 at resolutions up to 4K UHD 60Hz, with a built-in scaler that handles mixed-resolution displays on the same network. The unit supports HDCP 2.2 and integrates with Lightware's LW3 control protocol for third-party control systems, making it well-suited for large-scale managed AV networks in corporate and broadcast environments. Part number 91710006.

Product Description

The HDMI-TPN-RX107A-SR operates as the display-side endpoint in an SDVoE (Software Defined Video over Ethernet) infrastructure. Unlike HDBaseT or traditional fiber solutions, SDVoE uses standard 10GbE switching hardware to distribute uncompressed 4K video across an IP network, enabling fully non-blocking matrix routing with frame-accurate switching.

The integrated scaler is a key differentiator: each receiver independently scales the source signal to match the connected display's native resolution, eliminating the need for external scalers in multi-display deployments. Audio is embedded via HDMI and supports up to 8-channel PCM and compressed formats including Dolby and DTS.

Control is handled via RS-232, IR, and Ethernet interfaces. The receiver supports unicast and multicast streaming modes, enabling both point-to-point and one-to-many distribution topologies. Available from Creation Networks, authorized Lightware reseller serving commercial AV integrators across North America.

Key Features

• SDVoE Alliance Certified — Compatible with the SDVoE standard for uncompressed AV-over-IP over standard 10GbE infrastructure
• 4K UHD 60Hz HDMI 2.0 Output — Delivers full 18Gbps bandwidth with HDCP 2.2 compliance
• Integrated Per-Unit Scaling — Scales input signals to each display's native resolution independently, eliminating external scalers
• HDR10 and HLG Support — Passes HDR metadata for compatible display pipelines
• Zero-Compression Transport — Uncompressed video maintains full image fidelity with sub-frame latency
• Multicast and Unicast Modes — Supports matrix, distribution, and video wall topologies
• LW3 Control Protocol — Open, documented protocol integrates with Crestron, AMX, Extron, and other control systems via RS-232 or Ethernet
• 8-Channel Audio Support — Passes PCM, Dolby TrueHD, and DTS-HD Master Audio via HDMI

Typical Applications

• Corporate headquarters AV-over-IP matrix distribution
• Broadcast studio signal routing and production monitoring
• University campus-wide digital signage networks
• Government and defense secure AV distribution
• Large-scale video wall installations
• Rental and staging multi-screen event systems
• Medical imaging display distribution in hospitals

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the HDMI-TPN-RX107A-SR require a proprietary network switch?

No. The unit operates over standard 10GbE infrastructure. Any switch supporting IGMP snooping and 10GbE bandwidth is compatible, avoiding proprietary switch licensing costs.

What is the latency of SDVoE transport?

SDVoE delivers sub-frame latency, typically one to two video frames, because video is transported uncompressed. This suits real-time applications such as production monitoring and live event switching.

Can this receiver work with third-party SDVoE transmitters?

The unit is SDVoE Alliance certified, defining a baseline interoperability between member products. Advanced features such as per-unit scaling and LW3 control require Lightware transmitters. Verify requirements with your integrator before mixing brands.

How does the integrated scaler benefit a multi-display deployment?

In installations with displays of varying native resolutions, each receiver independently scales the source to match its display. This eliminates the need for a centrally managed scaler matrix, reducing cost and signal path complexity.

What control systems are compatible?

LW3 is documented and supported by Crestron, AMX, Savant, Extron, and most commercial AV control platforms via RS-232 or Ethernet. Driver modules are available from Lightware and third-party sources.

Is a power supply included?

The receiver requires an external 12V DC power supply. Confirm inclusion with your purchase order. Creation Networks can advise on compatible Lightware PSU options including the PSU2x20-400-12V rack supply.

Where can I purchase the HDMI-TPN-RX107A-SR?

The unit is available directly from Creation Networks, an authorized Lightware reseller serving commercial AV integrators across North America.
