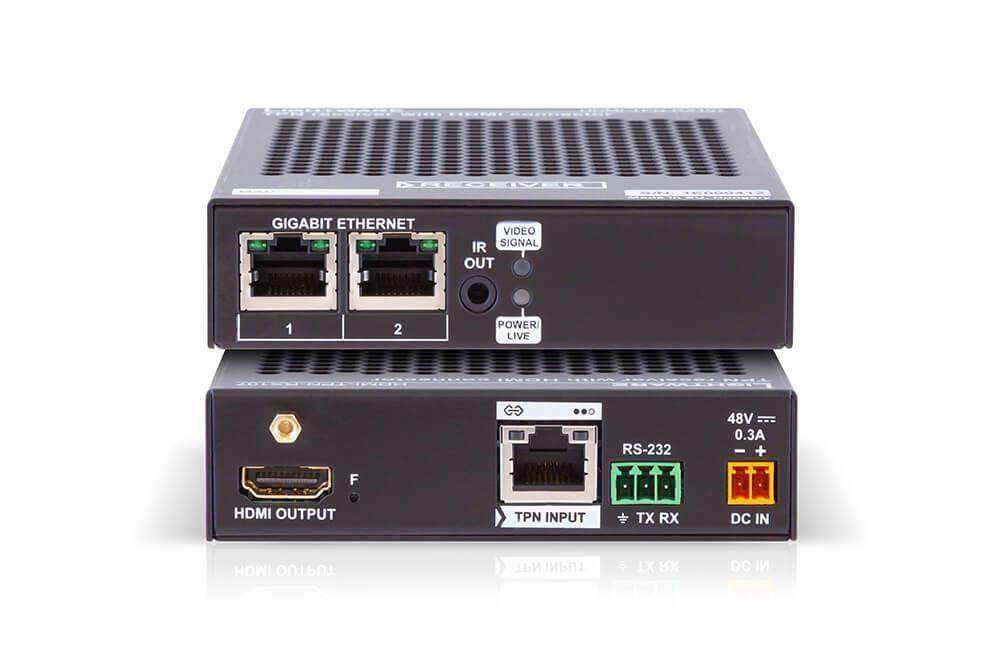

Lightware HDMI-TPN-RX107 SDVoE compatible HDMI 2.0 receiver - 91710004

Product Overview

The Lightware HDMI-TPN-RX107 is an SDVoE-compatible HDMI 2.0 receiver designed for AV-over-IP distribution over standard Gigabit Ethernet infrastructure. It receives compressed or uncompressed HDMI 2.0 video streams from TPN Series transmitters, outputting up to 4K/60 Hz 4:4:4 on HDMI to a local display. The RX107 is built for enterprise and education deployments where high-resolution video must be distributed across a managed network to multiple endpoints simultaneously.

Product Description

The Lightware HDMI-TPN-RX107 receives HDMI 2.0 video transported over a standard managed Gigabit Ethernet network from Lightware TPN transmitters, converting the network stream back to HDMI 2.0 output for connection to displays, projectors, or other HDMI sinks. It supports resolutions up to 4K/60 Hz at 4:4:4 chroma sampling and is fully compatible with the SDVoE (Software Defined Video over Ethernet) standard, enabling flexible, software-controlled routing and switching.

The receiver includes USB extension capability, allowing keyboard, mouse, and USB peripheral signals to travel alongside the video stream — critical for KVM-over-IP applications in control rooms and remote workstation environments. Audio is embedded in the HDMI output and can be de-embedded via the TPN system as needed. Management is handled through the TPN-CTU-X50 control unit or directly via the RX107's built-in web interface and REST API.

Key Features

• SDVoE-compatible AV-over-IP — receives video over standard managed Gigabit Ethernet without proprietary cabling
• HDMI 2.0 output up to 4K/60 Hz 4:4:4 — full-bandwidth 4K output for high-resolution displays and video walls
• USB extension support — transports USB HID and peripheral signals for KVM-over-IP deployments
• Zero-frame latency mode — supports real-time video applications requiring minimal end-to-end delay
• HDCP 2.2 and 1.x compliant — compatible with 4K content-protected sources and displays
• Built-in web interface and REST API — configurable independently or managed centrally via TPN-CTU-X50
• Multicast and unicast support — flexible distribution topology for one-to-many or point-to-point routing
• Compact fanless enclosure — silent operation suitable for display-side and end-user space installation

Typical Applications

• Corporate boardrooms and conference rooms with centralized AV-over-IP signal distribution
• University lecture halls and classrooms receiving content from a campus AV network
• Broadcast control rooms distributing 4K video to multiple operator displays
• Digital signage networks requiring centralized content distribution to remote displays
• KVM-over-IP installations for remote workstation access in data centers and control rooms
• Video wall installations receiving feeds from a TPN distribution network

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What transmitter pairs with the HDMI-TPN-RX107?

The HDMI-TPN-RX107 pairs with the Lightware HDMI-TPN-TX107 transmitter as the standard TPN endpoint pair. Any SDVoE-compatible transmitter on the same managed network can also feed the RX107, subject to Lightware compatibility confirmation.

Does the RX107 require PoE+ or can it use an external power supply?

The HDMI-TPN-RX107 supports both PoE+ (IEEE 802.3at) from a compatible network switch and an external DC power supply. This gives flexibility for installations where PoE+ switches are not available.

What network switch specifications are required?

A managed Gigabit Ethernet switch with IGMP snooping and multicast routing enabled is required. For large deployments, a 10GbE uplink between switches is recommended. Creation Networks can assist with network design at creationnetworks.net.

Can the HDMI-TPN-RX107 display content from multiple sources simultaneously?

In standard operation, each RX107 displays one source at a time, switched by the TPN-CTU-X50 or via API. Multi-window or PiP functionality depends on the downstream display or video processor, not the RX107 itself.

Is HDCP 2.2 supported for 4K UHD content?

Yes. The HDMI-TPN-RX107 is HDCP 2.2 compliant throughout the signal chain, supporting protected 4K UHD content from streaming devices, UHD Blu-ray players, and other HDCP 2.2 sources.

Can this unit be used for KVM applications?

Yes. The USB extension capability of the TPN system allows keyboard and mouse signals to travel with the video stream, enabling remote workstation control in control room and data center KVM-over-IP applications.

Where can I purchase the HDMI-TPN-RX107?

The Lightware HDMI-TPN-RX107 is available from Creation Networks at creationnetworks.net. Our specialists can assist with system design, TPN network planning, and Lightware-authorized support.
