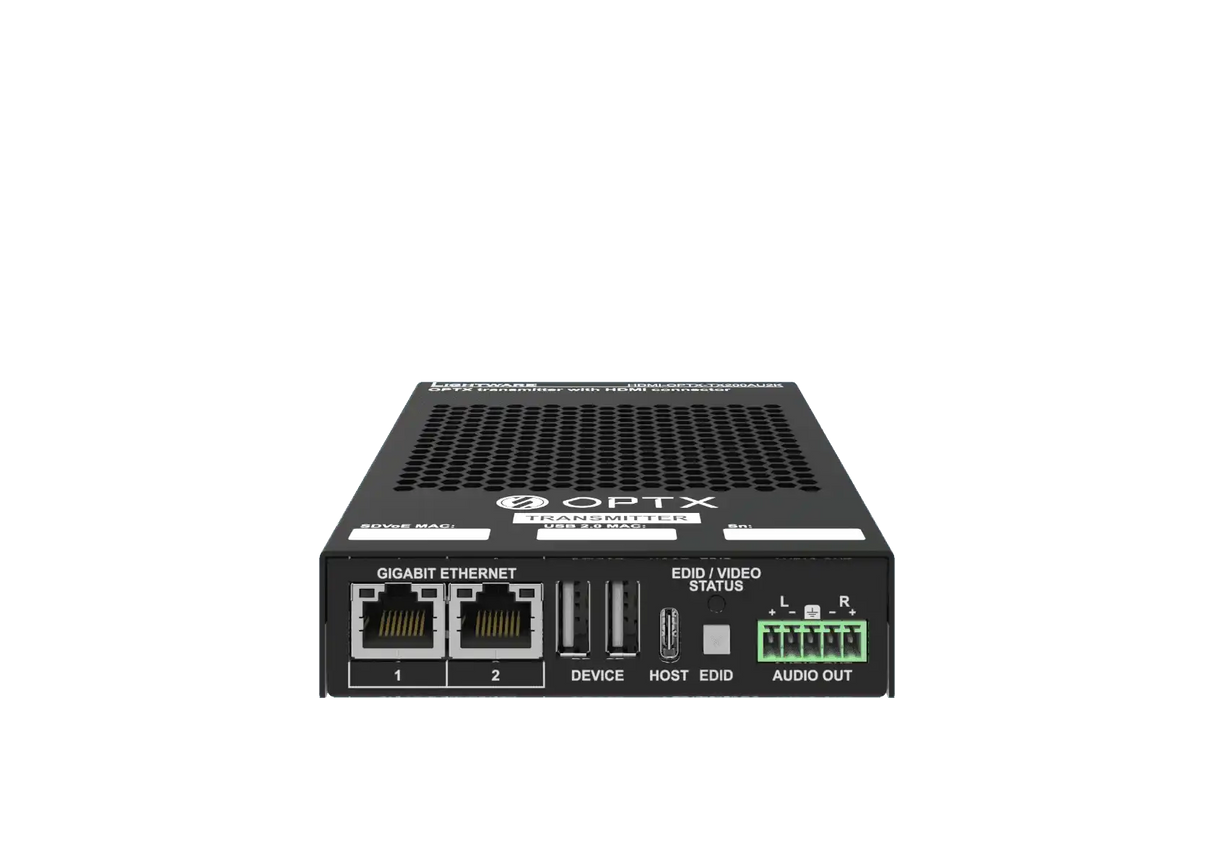

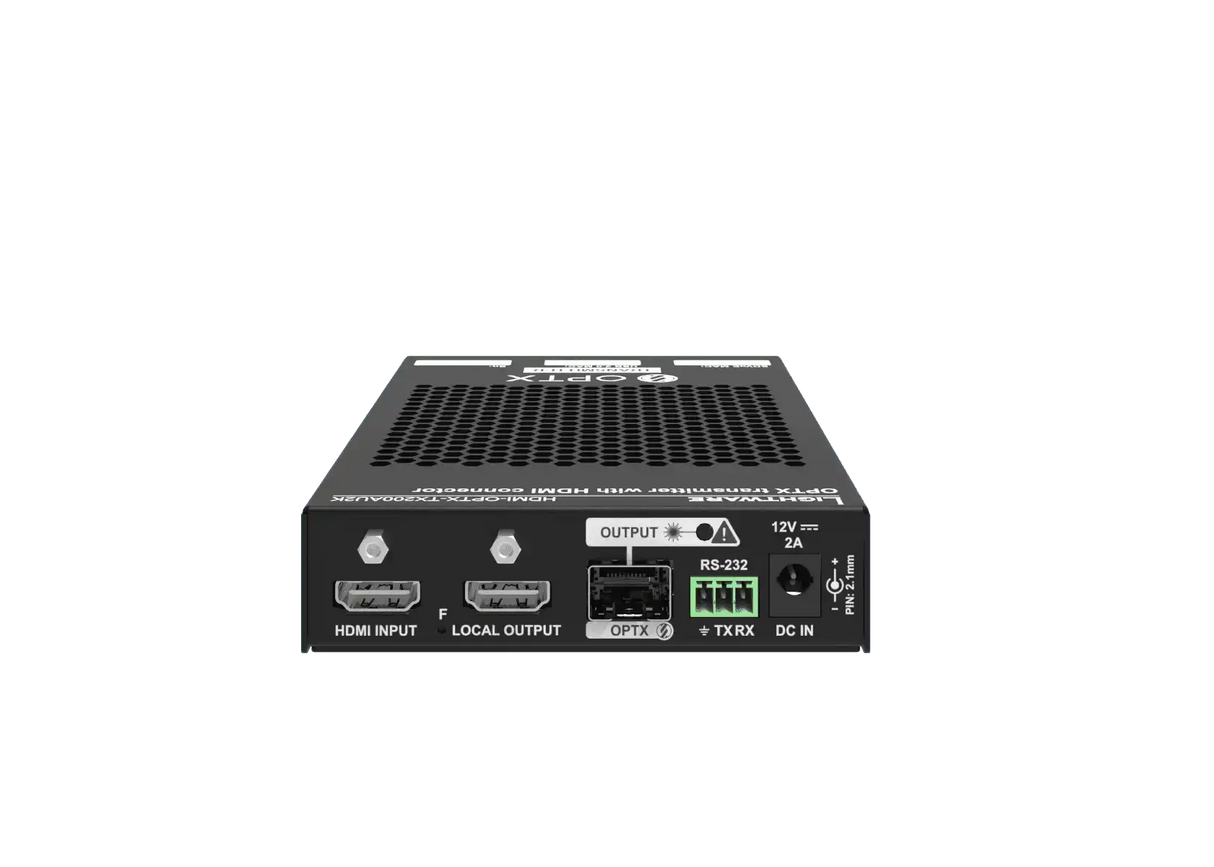

Lightware HDMI-OPTX-TX200AU2K SDVoE compatible HDMI 2.0 over fiber optical link transmitter - 91535003

LightWare SKU: 91535003
No reviews

Price:
Sale price$1,090.00

Description

The HDMI-OPTX-TX200AU2K and HDMI-OPTX-RX100AU2K transmitter and receiver devices are fiber extenders based on SDVoE technology and allow users to extend HDMI 2.0 compliant video, audio and control signals from a single source to a single destination through a fiber optical link. Moreover, these USB2.0 capable extenders also allow transparent and composite USB2.0 transmission in the opposite direction.

  • Transmission distance of up to 10km (when SM SFP+ module is used)
  • Allows for the transmission of HDMI 2.0, embedded audio, Ethernet, RS-232 and USB2.0 between an extender pair through single mode or multimode fiber
  • SFP+ cage for single mode or multimode SFP+ modules
  • Transparent USB transmission mode (for various USB2.0 devices including cameras, microphones, and touch screens) and composite USB transmission mode (for USB-HID devices)
  • Supports HDMI 4K signal formats (4K UHD @60Hz RGB 4:4:4, up to 18 Gbps)
  • HDR and Low Latency Dolby Vision support
General
Compliance UL, CE
Electrical safety IEC/EN/UL/CSA 62368-1:2014, Class II
EMC (emission) IEC/EN 55032:2015
EMC (immunity) IEC/EN 55035:2017
RoHS EN 63000:2018
Warranty 3 years
Operating temperature 0° to +50°C (+32° to +122°F)
Storage temperature  -30° to +80˚C (-22° to +176˚F)
Operating humidity 10% to 90%, non-condensing
Cooling passive
Power
Power supply option Power adaptor
Supported power source
Power consumption (max) TBD
Power consumption (min)
Heat dissipation TBD BTU/h (max)
AC power connector
AC fuse
Power over Ethernet (PoE)
Power adaptor
Supported power source 100-240 V AC; 50/60 Hz
Supplied power 12V DC, 2A
AC power plug Interchangable (EU, UK, JP/US, AUS/NZ)
DC power plug Locking DC connector (2.1/5.5 mm pin)
Enclosure
Rack mountable No
Enclosure material 1 mm steel
Dimensions in mm 100.4 W x 151.8 D x 26 H
Dimensions in inch 3.95 W x 5.98 D x 1.02 H
Weight TBD kg
* with rack mounting ears
Video inputs
HDMI input
Connector type 19-pole HDMI Type A receptacle
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance HDCP 2.3
Color space RGB, YCbCr
Video delay 0 frame
Supported resolutions at 8 bits/color *
  up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color
Reclocking Pixel Accurate Reclocking
3D support yes
Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

Input cable equalization
* The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels.
EDID management
EDID emulation yes, default EDID and 1 locally stored EDID
EDID memory 1 stored EDID
Supported standard EDID v1.3
SFP+ Port Slots
Number of ports 1
Supported data rate 10Gbps
Video Outputs
HDMI output
Connector type 19-pole HDMI Type A receptacle
A/V standard DVI 1.0, HDMI 1.4, HDMI 2.0
HDCP compliance HDCP 2.3
Color space RGB, YCbCr
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color

Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio

* All standard VESA and CEA resolutions up to 600MHz (HDMI2.0) and other custom resolutions up to 600Mhz are supported.
OPTX output
Connector type SFP+ cage
Power over Ethernet (PoE)
Compliance SDVoE
HDCP compliance HDCP2.3
Transferred signals Video, Audio, RS-232, Infrared, Ethernet
Color space RGB, YCbCr
Video delay 0 frame
Supported resolutions at 8 bits/color * up to 4096x2048@60Hz (4:4:4)
  up to 3840x2160@60Hz (4:4:4)
  4096x2048@60Hz (4:2:2) up to 10 bits/color

Audio formats All HDMI 2.0 formats including multi-channel PCM, Dolby True-HD and DTS-HD master audio


* The horizontal resolution for signals above the bandwith limit of HDMI 1.4 cannot exceed 4096 pixels.
Analog audio output
Connector type 5-pole Phoenix connector
Audio formats 2-ch PCM
Sampling frequency 48 kHz
Volume -78 dB - 0 dB
Balance 0 - 100 (50 = center)
Nominal Differential Output Level @ 0 dB Gain +4 dBu
Nominal Differential Output Level @ 3 dB Gain +7 dBu
USB port
Connector type 2x USB-A female (device)
USB compliance USB2.0
Device class all
Powering Max 1.45A@5V (total)
USB port
Connector type 1x USB-C female (host)
USB compliance USB2.0
Device class n.a.
Powering n.a.
Control Ports
RS-232 serial port
Connector type 3-pole Phoenix connector
Baud rates Between 4800 and 115200 Baud
Data bits 8 or 9
Parity None / Odd / Even
Stop bits 1 / 1.5 / 2
Ethernet port
Connector type 2x RJ45 female connector
Ethernet data rate 10/100/1000Base-T, full duplex with autodetect
Power over Ethernet (PoE) No
