Product Overview
The Lightware HDMI-OPTN-TX100A is an SDVoE-based HDMI 2.0 fiber transmitter for point-to-multipoint video distribution over single-mode or multimode fiber optic cable. It accepts an HDMI 2.0 source and transmits 4K UHD video, embedded audio, Ethernet, and RS-232 data over fiber at distances up to 10 km with a single-mode SFP+ module. Designed for installations requiring electrical isolation, long-distance signal transport, or EMI-immune links, the TX100A is the transmit-side counterpart to the HDMI-OPTN-RX100A receiver.
Product Description

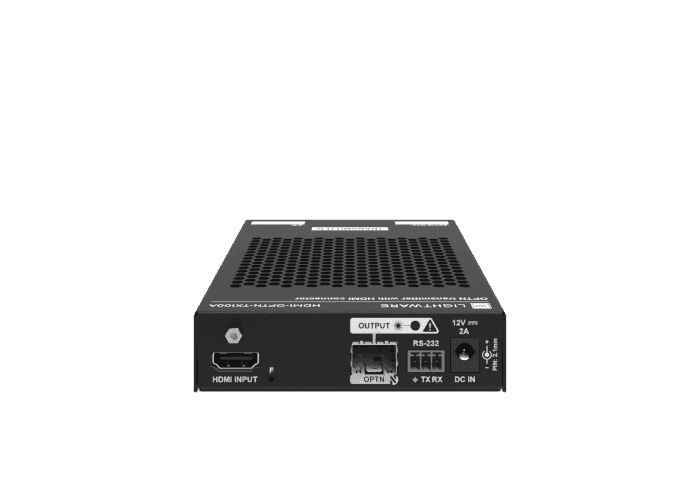

The HDMI-OPTN-TX100A accepts an HDMI 2.0 input and converts it for transmission over a fiber optic link via the SFP+ interface. The SFP+ cage accommodates both single-mode and multimode modules, giving the integrator flexibility without committing to a fixed fiber type at the time of hardware purchase. Supported distances range from typical multimode campus runs to 10 km single-mode links for inter-building or large-site distribution.
Using the SDVoE protocol, a single TX100A can feed multiple RX100A receivers through a managed network switch, supporting flexible point-to-multipoint and multipoint matrix configurations in software rather than hardware. The unit supports 4K UHD at 60Hz with RGB 4:4:4, HDR, and Low Latency Dolby Vision. It is HDCP 2.3 compliant for protected content sources. Ethernet and RS-232 pass-through complete the signal set delivered to the remote end.
Key Features
- SFP+ fiber interface — supports single-mode (up to 10 km) or multimode SFP+ modules; module not included
- HDMI 2.0 input — 4K UHD 60Hz RGB 4:4:4, 18 Gbps, HDCP 2.3
- SDVoE point-to-multipoint — one transmitter feeds multiple receivers via network switch
- HDR and Low Latency Dolby Vision — full HDR format support

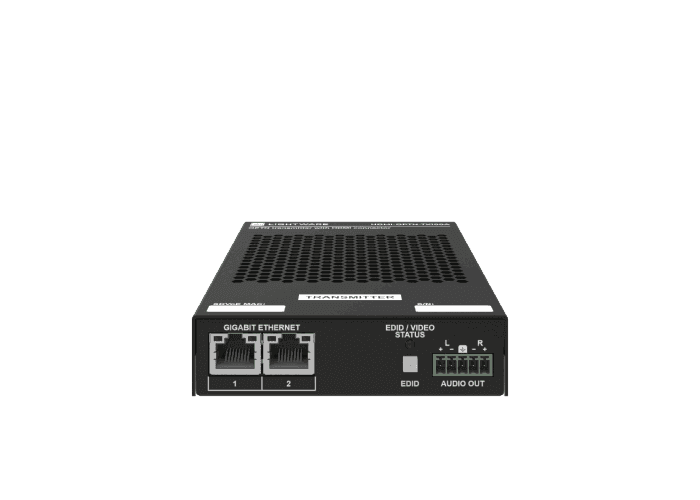

- Ethernet and RS-232 pass-through — control and network signals transported alongside video
- Fiber electrical isolation — eliminates ground loops between source and display locations
- EMI immunity — fiber transport immune to electrical interference in industrial or broadcast environments
- Analog audio output — de-embeds HDMI audio for local monitoring or routing
Typical Applications
- Multi-building campus video distribution using existing fiber infrastructure
- Broadcast facilities requiring EMI-immune 4K signal distribution
- Medical environments requiring galvanic isolation between AV equipment
- Stadiums and convention centers with long-distance display links
- Government and secure facilities with strict electrical separation requirements
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | SDVoE HDMI 2.0 Fiber Transmitter |
| Fiber Interface | SFP+ cage (single-mode or multimode) |
| SFP+ Module | Not included — purchased separately |
| Max Distance (SM fiber) | Up to 10 km |
| HDMI Input | HDMI 2.0, 4K UHD 60Hz RGB 4:4:4, 18 Gbps |
| HDCP Compliance | HDCP 2.3 |
| HDR Support | Yes (HDR10, Low Latency Dolby Vision) |
| Analog Audio Output | Yes |
| Control | RS-232, Ethernet pass-through |
| Protocol | SDVoE |
| Warranty | 3 years |
Competitor Comparison
| Criterion | Lightware HDMI-OPTN-TX100A | Extron FOX3 4K 1000 HDMI TX | Kramer TP-590Txr | Gefen EXT-UHD600-1-FO TX |
|---|---|---|---|---|
| Fiber Type | SM or MM via SFP+ (flexible) | MM only — fixed | MM only — fixed | SM or MM — SFP+ flexible |
| Max Distance (SM) | 10 km | Not supported | Not supported | 10 km |
| SDVoE Protocol | Yes — point-to-multipoint capable | No — proprietary | No — proprietary | No — proprietary |
| HDR Support | Yes — HDR10, Dolby Vision LL | Yes | Yes | Yes |
| HDCP | HDCP 2.3 | HDCP 2.2 | HDCP 2.2 | HDCP 2.2 |
| Analog Audio Output | Yes | No | No | No |
| Control Pass-through | RS-232 + Ethernet | RS-232 only | RS-232 only | RS-232 only |
Frequently Asked Questions
- Is an SFP+ module included with the TX100A?
- No. The SFP+ module is not included and must be purchased separately. The choice of module determines the fiber type and maximum distance. Contact Creation Networks for compatible SFP+ module recommendations.
- Can the TX100A feed multiple receivers simultaneously?
- Yes. Using the SDVoE protocol over a managed network switch with multicast enabled, a single TX100A can supply multiple RX100A receivers without duplicating the source signal.
- What is the maximum distance over single-mode fiber?
- Up to 10 km when using a compatible single-mode SFP+ module. Multimode distances depend on the fiber grade and SFP+ module specification.
- Does fiber transport prevent ground loops?
- Yes. Fiber carries no electrical current between endpoints, inherently isolating the source and display ground references and preventing ground loop interference.
- What HDMI source resolutions are supported?
- The TX100A supports all HDMI 2.0 signal formats up to 4K UHD at 60Hz with 4:4:4 chroma at 18 Gbps, including HDR and Low Latency Dolby Vision content.
- Is the TX100A compatible with the RX100A for a complete fiber extension pair?
- Yes. The TX100A and RX100A are the transmitter/receiver pair in the Lightware OPTN fiber extension product family.
- Where can I purchase the HDMI-OPTN-TX100A?
- Available from Creation Networks, an authorized Lightware distributor for professional AV integrators.
