Lightware HDMI-OPTN-RX100AU2K SDVoE-based Point-to-multipoint HDMI 2.0 over Fiber Optical Link Receiver - 91536006

Product Overview

The Lightware HDMI-OPTN-RX100AU2K is an SDVoE-based HDMI 2.0 fiber optical receiver for point-to-multipoint AV distribution. It accepts HDMI 2.0 video, embedded audio, Ethernet, RS-232, and USB 2.0 data from a compatible OPTN fiber transmitter via a user-supplied SFP+ module, and outputs full 4K HDMI 2.0 to the local display alongside a local monitor loop output. KVM functionality is provided through transparent and composite USB 2.0 extension, making it suitable for installations requiring both display output and USB device connectivity at the same remote endpoint.

Product Description

The HDMI-OPTN-RX100AU2K extends Lightware's OPTN fiber SDVoE ecosystem to receive endpoints requiring USB 2.0 connectivity alongside video — control rooms with keyboard and mouse at the display, lecture theaters with touchscreens at the projection screen, or medical environments with USB peripherals at remote stations. The SFP+ cage accepts both single-mode and multimode modules, allowing the unit to operate over installed fiber plants ranging from short campus runs to extended 10 km single-mode links.

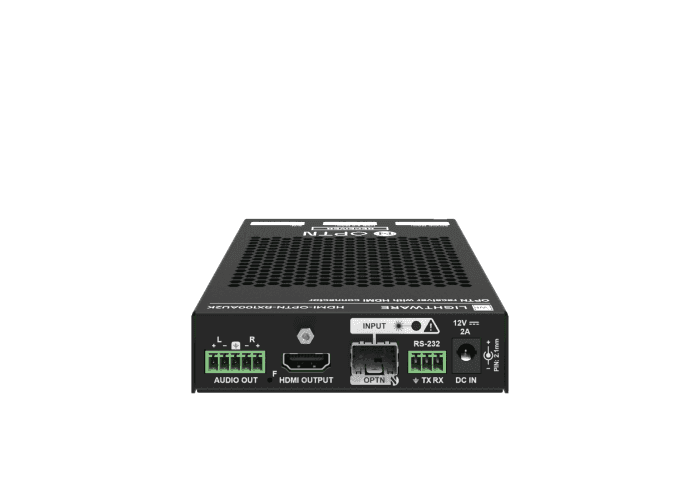

HDMI 2.0 output at 4K UHD @60Hz RGB 4:4:4 and 18 Gbps throughput with HDCP 2.3 ensures the full signal quality and content protection of the source is preserved at the display endpoint. A dedicated local video output provides an additional HDMI monitor connection at the receiver location — useful for display duplication or local monitoring without signal splitting. HDR and Low Latency Dolby Vision are supported end-to-end. Analog audio de-embedding via 5-pole Phoenix provides a stereo feed to local audio equipment. RS-232 pass-through handles display control from the transmitter side. Power options include a local AC adaptor or PoE from the TPX network input, reducing infrastructure requirements at each endpoint.

Key Features

• SDVoE fiber distribution — point-to-multipoint HDMI 2.0 over fiber; supports both SM (up to 10 km) and MM SFP+ modules

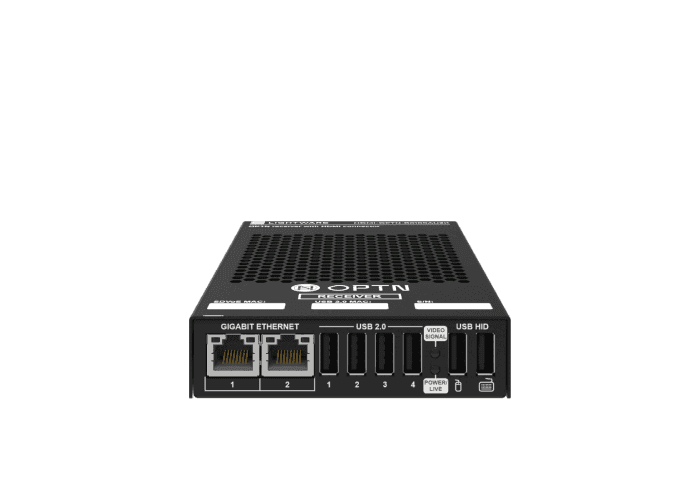

• USB 2.0 KVM extension — transparent mode (cameras, microphones, touch screens, mass storage) and composite HID mode over the same fiber link
• Local video output — additional HDMI output at the receiver for local monitoring or display duplication
• 4K HDMI 2.0 @ 60Hz 4:4:4 — up to 18 Gbps, HDCP 2.3, full color fidelity preserved from source to display
• HDR and Low Latency Dolby Vision — supported end-to-end in pass-through mode
• Analog audio de-embedding — 5-pole Phoenix output, 2-ch PCM at 48 kHz, adjustable volume
• RS-232 pass-through — 3-pole Phoenix for display control or device management from the transmitter side
• PoE powered — accepts IEEE 802.3af via TPX network input; eliminates AC power requirement at each endpoint
• SFP+ flexibility — user-supplied module allows SM or MM fiber to match installed plant without hardware change

Typical Applications

• University campuses distributing 4K content over existing single-mode fiber with USB peripheral extension at classrooms
• Medical imaging environments requiring HDMI display output and USB touchscreen or peripheral control at remote stations
• Corporate campuses with fiber-connected meeting rooms requiring both video and USB device functionality at display endpoints
• Command and control centers with KVM extension for operator workstations at display walls
• Large-venue AV networks where USB extension to remote display locations is needed alongside 4K distribution

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What transmitter pairs with the HDMI-OPTN-RX100AU2K?

This receiver is designed to work with Lightware OPTN series transmitters, specifically the HDMI-OPTN-TX200AU2K. The SFP+ modules on both ends must be matched for fiber type (SM or MM) and wavelength compatibility.

Is the SFP+ module included?

No. The SFP+ module must be purchased separately and must match your installed fiber type. Single-mode modules support runs up to 10 km; multimode modules cover shorter distances. Creation Networks can advise on compatible modules for your application.

How does the local video output differ from the main HDMI output?

The local video output provides an additional HDMI connection at the receiver location, useful for connecting a second monitor or a local preview display without signal splitting. Both outputs typically carry the same signal; consult Lightware documentation or Creation Networks for specific output behavior in your firmware version.

Can the USB transparent mode support 4K USB cameras?

USB 2.0 bandwidth limits camera resolution and frame rate regardless of the display output resolution. USB 3.0 cameras are not supported over the USB 2.0 extension link. Standard USB 2.0 webcam and document camera resolutions (up to 1080p at reduced frame rates) are typical for the transparent USB path.

Does HDR content pass through without degradation?

Yes, when the unit is in pass-through mode with no scaling active. HDR10, HLG, and Low Latency Dolby Vision metadata are preserved through the fiber link to the display. The transmitting source, fiber network, and display must all support the relevant HDR standard.

What is the difference between this unit and the HDMI-OPTN-RX100A-SR?

The HDMI-OPTN-RX100AU2K (this unit) adds USB 2.0 KVM extension capability and a dedicated local video output. The HDMI-OPTN-RX100A-SR includes an integrated video scaler for output format conversion. Choose RX100AU2K for KVM and local monitoring; choose RX100A-SR for multi-display environments requiring per-endpoint resolution scaling.

Where can I purchase with fiber design assistance?

Available at creationnetworks.net. The team can assist with SFP+ module selection, fiber link budget analysis, and USB peripheral compatibility confirmation before you order.
