Lightware MX2-24x24-DH-12DPi-A-R Full 4K Matrix Switcher with Mixed DisplayPort and HDMI Input Ports - 91310064

Product Overview

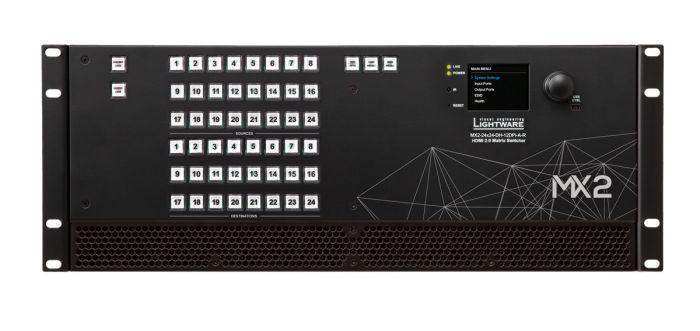

The Lightware MX2-24x24-DH-12DPi-A-R is a 24x24 standalone matrix switcher combining 12 DisplayPort 1.2 inputs with 12 HDMI 2.0 inputs and 24 HDMI 2.0 outputs, delivering uncompressed 4K UHD video at 60Hz with RGB 4:4:4 colorspace. Positioned in the MX2 DH series, this model accepts native DisplayPort sources without adapters while routing all outputs through HDMI 2.0, making it well-suited for corporate, government, and broadcast installations where DisplayPort-equipped workstations and HDMI displays coexist in the same signal chain. The R-type build includes dual redundant power supplies with ruggedized Neutrik connectors for continuous operation in high-availability environments. Find this unit and compatible Lightware accessories at creationnetworks.net.

Product Description

The MX2-24x24-DH-12DPi-A-R accepts 12 HDMI 2.0 and 12 DisplayPort 1.2 video sources, switching them across 24 HDMI 2.0 outputs with full non-blocking crosspoint architecture. Each port operates at 18 Gbps, supporting resolutions up to 4096x2160 at 60Hz in RGB or YCbCr 4:4:4 with a 600 MHz pixel clock. Where DisplayPort source signals exceed HDMI 2.0 bandwidth, the device performs colorspace conversion to 4:2:2 while maintaining bit depth, preserving HDR compatibility throughout the signal path. Lightware’s Pixel Accurate Reclocking reconstructs the pixel clock on every output to eliminate jitter introduced by source equipment or cabling. Audio embedding and de-embedding is provided at dedicated analog ports, supporting 8 HDMI-adjacent audio inputs and 4 DisplayPort-adjacent inputs, with 8 HDMI-adjacent audio outputs. High-bitrate audio formats including Dolby Atmos, TrueHD, and DTS-HD are fully supported. The unit occupies 4RU in a standard rack and connects to control systems via EtherCON Ethernet, D-Sub RS-232, or Mini USB B. Dolby Vision, HDR10, and 3D video formats are all supported on HDMI outputs.

Key Features

• 12 DisplayPort 1.2 Inputs + 12 HDMI 2.0 Inputs — Accepts native DP 1.2 sources directly without adapters, alongside HDMI 2.0 sources, for a total of 24 independent input paths.
• 24 HDMI 2.0 Outputs — All outputs deliver up to 18 Gbps, supporting 4K UHD at 60Hz to HDMI-connected displays, projectors, or downstream AV equipment.
• 4K UHD 60Hz RGB 4:4:4 — Full 18 Gbps per-port bandwidth with support for up to 4096x2160 at 60Hz in RGB 4:4:4 or YCbCr 4:4:4 colorspace without downsampling.
• HDR and Low Latency Dolby Vision — HDR10 and Dolby Vision metadata are preserved and passed on HDMI outputs, supporting premium display and monitoring applications.
• Audio Embedding and De-Embedding — Dedicated analog audio I/O ports with 8 HDMI-adjacent + 4 DP-adjacent audio inputs and 8 HDMI-adjacent audio outputs; supports Dolby Atmos, TrueHD, DTS-HD.
• HDCP 2.2 and HDCP 1.4 with Cross-Conversion — Handles mixed content protection versions across connected sources and displays with automatic cross-conversion, eliminating manual HDCP troubleshooting.

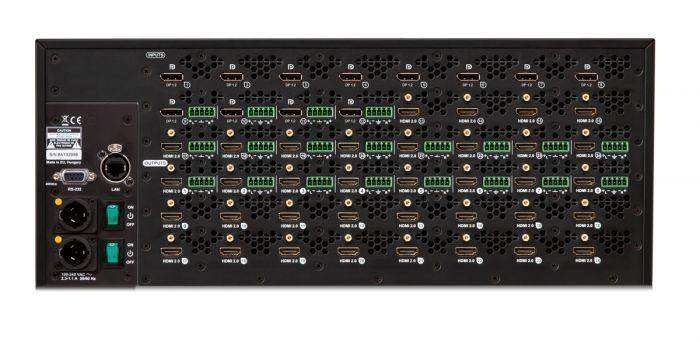

• Dual Redundant Power Supplies — Two independent Neutrik Powercon True1 connectors (110/220V) with reinforced RS-232 and Ethernet ports for mission-critical deployments.
• Pixel Accurate Reclocking — Proprietary Lightware technology that reconstructs the pixel clock on every output port to eliminate timing jitter in long-run or distributed signal chains.
• Advanced EDID Management — Lightware’s EDID engine manages source and display handshaking across all 36 I/O ports, preventing blank-screen conditions in complex multi-source systems.
• 4RU Compact Form Factor — High port density in a 4RU chassis — half the rack space of the 8RU 48-port model — for space-constrained equipment rooms.
• Front-Panel Crosspoint Keys — Physical crosspoint control buttons on the front panel allow routing changes without network or software access.
• Built-In Web Interface — Full device configuration and crosspoint management via browser over EtherCON Ethernet; no proprietary software required.

Typical Applications

• Corporate conference rooms with DisplayPort workstation sources and HDMI display systems
• Government and defense operations centers with mixed DP and HDMI endpoint ecosystems
• Boardroom AV systems requiring 4K UHD signal integrity with audio embedding
• Broadcast production environments routing 4K sources to HDMI monitoring and recording outputs
• Training rooms with multiple PC sources (DisplayPort) and HDMI presentation displays
• Commercial meeting spaces and all-hands rooms with high source and display counts
• Multi-purpose rooms requiring flexible crosspoint routing with centralized control

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What distinguishes this model from the MX2-24x24-DH-12DPi-R (without the A suffix)?

The A suffix indicates audio embedding and de-embedding capability. The MX2-24x24-DH-12DPi-A-R includes dedicated analog audio input and output ports, supporting Dolby Atmos, TrueHD, and DTS-HD. The non-A model (MX2-24x24-DH-12DPi-R) has no analog audio I/O.

How does the device handle DisplayPort source signals?

The device is recognized by the connected DP source as a DP-to-HDMI converter. DisplayPort 1.2 input signals at 3840x2160 4:4:4 RGB 10-bit are converted internally to 3840x2160 4:2:2 YCbCr 10-bit or 3840x2160 4:4:4 RGB 8-bit, then processed through the HDMI switching fabric. All 24 outputs are HDMI 2.0, so DP sources route to HDMI displays.

Is HDR supported, and on which outputs?

HDR10 and Low Latency Dolby Vision are supported on HDMI 2.0 outputs only. The device does not pass HDR metadata on DisplayPort outputs, and this unit has no DisplayPort outputs — all 24 outputs are HDMI 2.0, so HDR is available on all outputs subject to source and display support.

What HDCP versions are supported?

The device supports HDCP 2.2 and HDCP 1.4 simultaneously with cross-conversion capability, handling mixed HDCP compliance levels across sources and displays in the same matrix without manual configuration.

Can this device be integrated with third-party control systems?

Yes. The MX2-24x24-DH-12DPi-A-R supports control via Ethernet (TCP/IP through EtherCON), RS-232 (D-Sub 9-pole), and USB (Mini USB B), making it compatible with Crestron, AMX, Extron GlobalScaler, and other control systems via standard serial or IP command sets. A built-in web interface is also available for standalone configuration.

What is the rack space requirement?

The MX2-24x24-DH-12DPi-A-R occupies 4RU in a standard 19-inch rack with removable rack ears. At 24 inputs and 24 HDMI outputs in 4RU, it offers one of the higher port densities available in a standalone 4K matrix at this crosspoint size.

Are there any limitations on DisplayPort features?

Yes. DP Multi-Stream (MST), Dual-mode DisplayPort (DP++), Adaptive-Sync, and FreeSync are not supported. HDR is not available on DisplayPort outputs (this model has none), and the DP input signal undergoes colorspace conversion as described above. Integrators should confirm source output settings match supported DP 1.2 single-stream modes.
