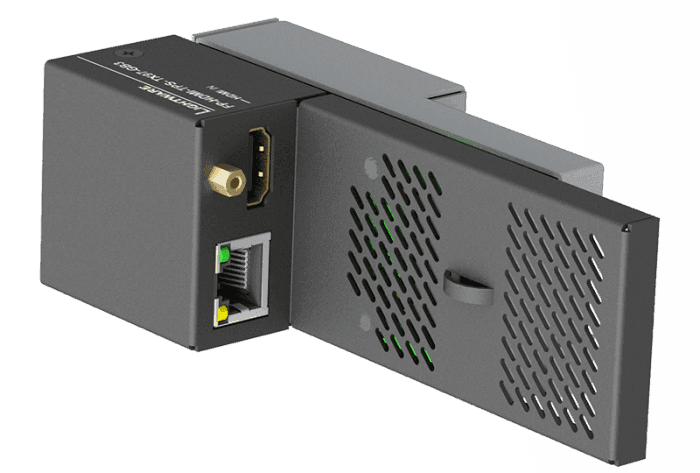

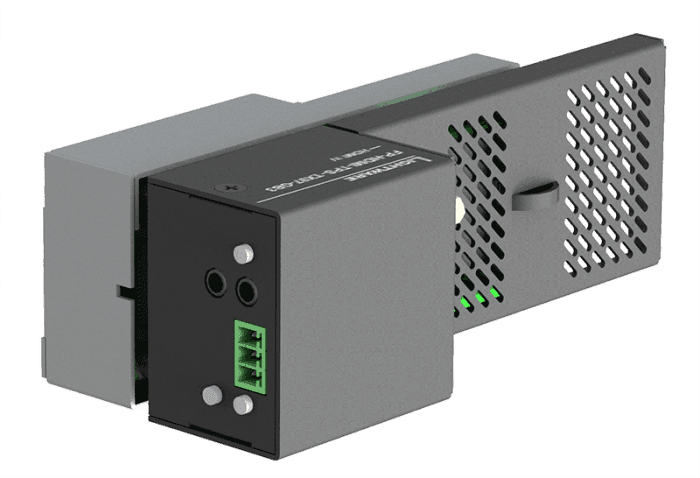

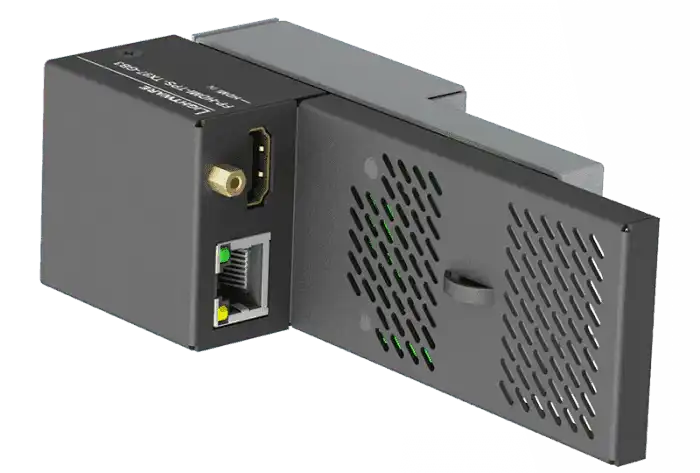

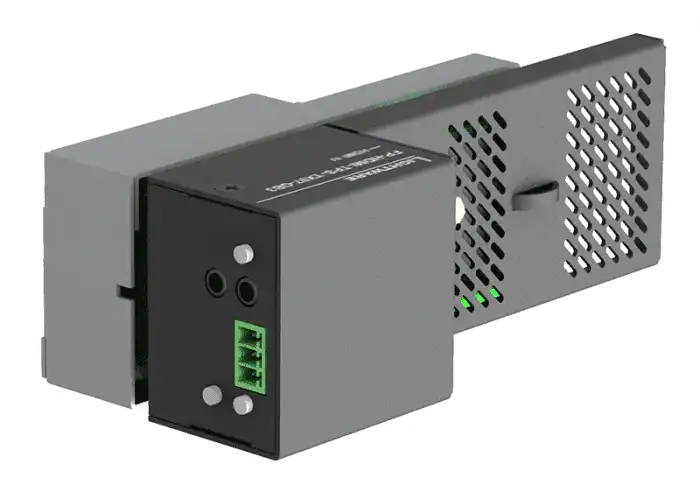

Lightware FP-HDMI-TPS-TX97-GB3 Floorbox (FP) TPS Extender for Single CATx Cable with PoE - 91540037

Product Overview

The Lightware FP-HDMI-TPS-TX97-GB3 is a floorbox-format TPS extender transmitter designed to accept an HDMI source at a conference table or floor connection point and transmit the signal over a single CATx cable to a remote display location. Built for the GB3 grommet box standard, it installs directly into conference table enclosures, floor boxes, and furniture-integrated AV connectivity points without the need for custom adapters. It pairs with the FP-HDMI-TPS-RX97-GB3 receiver for a complete TPS extension system.

Product Description

The FP-HDMI-TPS-TX97-GB3 accepts HDMI input from a presenter laptop or media device and encodes it for transmission over Lightware's TPS protocol on a single Cat5e or Cat6 cable. This eliminates the need for long HDMI cable runs to the display, replacing them with the structured CATx infrastructure that is standard in commercial facilities. The transmitter provides PoE power to the receiver at the display end, so no additional power supply is required at the remote location.

The unit is built into a grommet-style enclosure that integrates cleanly into GB3-standard floor boxes and conference table ports. RS-232 and IR channels are passed through the TPS link for display control from the source end or from a central control system. EDID management at the transmitter ensures reliable handshaking between the connected laptop or source device and the remote display, preventing common plug-and-display issues. The transmitter is compatible with standard HDMI sources and requires no driver installation on the presenter's device.

Key Features

• Floorbox / Grommet Box Form Factor — GB3-compatible enclosure for direct installation in conference table and floor box mounting points
• HDMI Source Input — Accepts HDMI from laptops, media players, and presentation devices without driver installation
• TPS Transmission over CATx — Encodes and sends HDMI over a single Cat5e or Cat6 cable to the remote receiver
• PoE Output to Receiver — Powers the connected receiver over the TPS cable, eliminating local power at the display end
• 4K UHD Support — Transmits high-resolution content for modern 4K conference room and boardroom displays
• RS-232 and IR Pass-through — Carries control signals to the display via the TPS link
• EDID Management — Emulates display EDID at the source to prevent handshaking failures during presentations
• No Driver Required — Works as a plug-and-play HDMI connection for presenter devices

Typical Applications

• Conference room table-top presenter connection points feeding room displays
• Boardroom and executive meeting room integrated AV furniture connections
• Training facility student or instructor table connectivity stations
• Hotel meeting and event rooms with table-integrated AV access points
• Collaborative workspaces with recessed floor AV connections
• Courtroom and hearing room counsel table AV connections to display screens

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What receiver pairs with the FP-HDMI-TPS-TX97-GB3?

This transmitter pairs with the Lightware FP-HDMI-TPS-RX97-GB3 receiver for a complete floorbox TPS extension system. Both units are sold separately and are designed to work together over a single CATx cable run.

Can a presenter connect directly via HDMI without any software or configuration?

Yes. The transmitter presents as a standard HDMI display to the source device. No drivers or applications are required on the presenter's laptop or playback device.

Does the transmitter need a local power supply in the floor box?

The transmitter itself requires power. It powers the receiver via the TPS link, but the transmitter unit needs to be powered, typically via a low-voltage power supply. Verify the exact power requirements in Lightware's datasheet for this model.

What is the maximum cable run between transmitter and receiver?

Maximum distance depends on resolution and cable quality. For 1080p on Cat6, runs up to approximately 100 meters are achievable. For 4K resolutions, shorter distances apply. Consult Lightware's installation documentation for resolution-to-distance tables.

Does the EDID management prevent the ‘no signal’ issue when a presenter switches laptops?

Yes. EDID emulation at the transmitter presents a consistent EDID to every source device, so the connected laptop always sees the same display profile regardless of what is connected at the receiver end. This reduces plug-and-display handshake failures significantly.

Is this transmitter compatible with HDMI sources from all laptop brands?

The unit accepts standard HDMI and is compatible with HDMI outputs from Windows, Mac, and Chromebook laptops, as well as media players, document cameras, and video conferencing codecs that use HDMI output.

Where can I purchase the FP-HDMI-TPS-TX97-GB3?

Available from Creation Networks, an authorized Lightware reseller for commercial AV integration projects including conference room, boardroom, and training facility installations.
