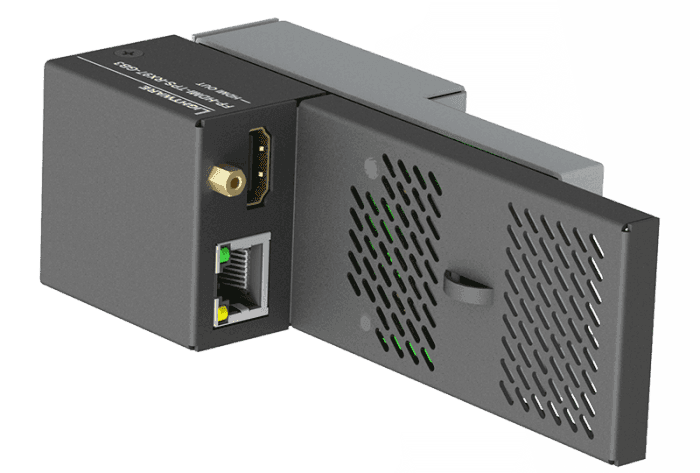

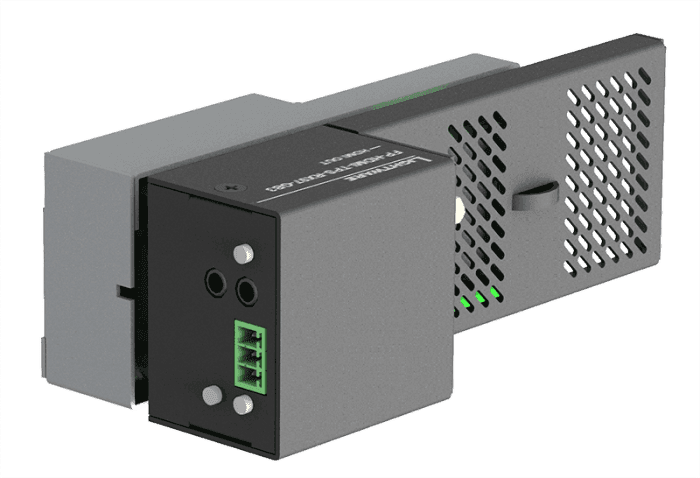

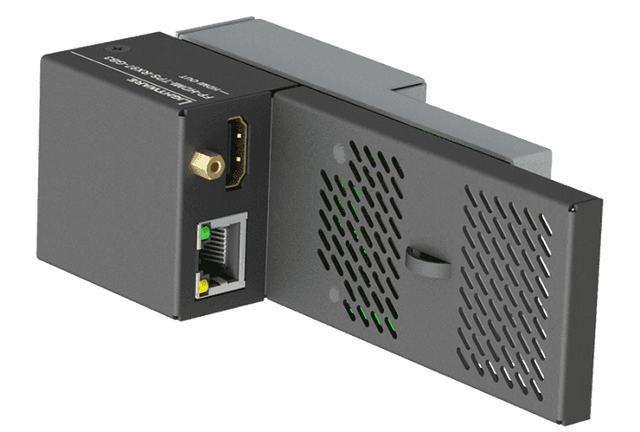

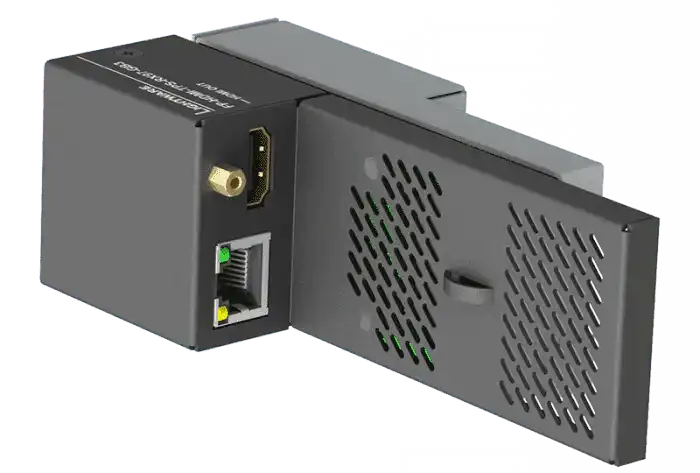

Lightware FP-HDMI-TPS-RX97-GB3 Floorbox (FP) TPS Extender for Single CATx Cable with PoE - 91540031

Product Overview

The Lightware FP-HDMI-TPS-RX97-GB3 is a floorbox-format TPS extender receiver that brings HDMI video and control signals from a CATx cable run to an HDMI display, designed for floor-mounted AV connectivity points in conference rooms, training facilities, and open-plan meeting spaces. It receives signals transmitted over a single CATx cable via Lightware's TPS protocol and supports Power over Ethernet for cable-only power delivery. The GB3 designation indicates a Grommet Box form factor compatible with standard floor box installations.

Product Description

The FP-HDMI-TPS-RX97-GB3 is the display-end receiver in a TPS extender pair, designed specifically for flush-mounted floor box and table-top grommet installations. It accepts the TPS signal from a compatible transmitter over a single Cat5e or Cat6 cable and outputs HDMI to the connected display. This approach eliminates the need for HDMI cable runs across floors, replacing them with the structured CATx cabling that is standard in commercial buildings.

The receiver supports 4K UHD resolutions and includes PoE (Power over Ethernet) compatibility, allowing it to be powered from the TPS link without requiring a separate power supply at the floor location. RS-232 and IR pass-through channels extend control signals to connected displays. The unit is built for the practical demands of furniture-integrated and floor-mounted AV points, with a discreet form factor and cable management suited to conference table and training room environments. EDID management ensures reliable source-to-display handshaking regardless of display variation across a facility.

Key Features

• Floorbox / Grommet Box Form Factor — GB3-compatible for flush installation in conference table and floor box enclosures
• TPS Extender Technology — Receives HDMI over a single CATx cable (Cat5e or Cat6) from a compatible TPS transmitter
• 4K UHD Support — Handles high-resolution display output for modern conference room and presentation displays
• Power over Ethernet (PoE) — Powered from the TPS link; no separate power supply needed at the floor connection point
• RS-232 and IR Pass-through — Extends control signals to display for remote power and input management
• EDID Management — Configurable EDID emulation for consistent handshaking across different installed displays
• Single-Cable Infrastructure — Uses existing building CATx infrastructure, reducing cable management complexity at furniture level
• Plug-and-Play Compatible — Works with standard HDMI laptops and sources without requiring software configuration at the endpoint

Typical Applications

• Conference room tables with center-of-table AV connectivity points
• Training rooms and classrooms with floor-mounted student connection stations
• Boardrooms requiring discreet, furniture-integrated presenter connections
• Collaborative open-plan workspaces with pop-up or grommet AV points
• Hotel meeting rooms and event spaces with table-top connectivity
• Court rooms and legislative chambers with counsel table AV connections

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What floorbox or grommet format does the FP-HDMI-TPS-RX97-GB3 fit?

The unit is designed for GB3-standard grommet and floor box enclosures, which are commonly found in conference table and office furniture. Check the dimensions against your specific floor box enclosure to confirm compatibility before installation.

Does this receiver need a local power supply at the table?

No. The receiver is powered via PoE through the CATx link cable from the transmitter or PoE-capable switch, eliminating the need for a local power adapter inside the floor box enclosure.

What transmitter does this receiver pair with?

The FP-HDMI-TPS-RX97-GB3 pairs with the Lightware FP-HDMI-TPS-TX97-GB3 transmitter or compatible TPS transmitters. For confirmed pairing compatibility, consult Lightware's product documentation or contact Creation Networks.

What cable length is supported between transmitter and receiver?

Maximum extension distance depends on resolution and cable quality. For 1080p signals over Cat6, runs up to 100 meters are typical. For 4K resolutions, shorter runs are recommended. Refer to Lightware's installation guide for specific distance-resolution combinations.

Can the display connected to this receiver be controlled from a central room or rack?

Yes. RS-232 and IR control signals pass through the TPS link, allowing a control system in the equipment rack to send commands to the display connected at the floor box endpoint.

Is this compatible with standard HDMI laptops and presentation devices?

Yes. The receiver outputs a standard HDMI signal. Any display with an HDMI input is compatible. Laptops and presentation devices connect to the transmitter end of the link via HDMI.

Where can I purchase the FP-HDMI-TPS-RX97-GB3?

Available from Creation Networks, an authorized Lightware reseller specializing in commercial AV integration and floorbox connectivity solutions.
