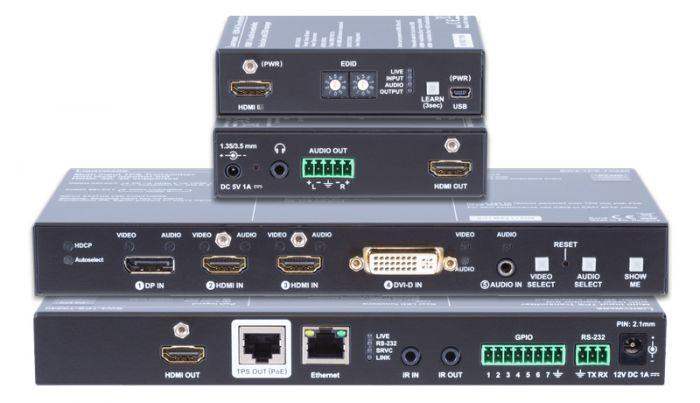

Lightware EDU-P1 Product Bundle: SW4-TPS-TX240-Plus extender and HDMI-4K de-embedder interface - 91540077
Roll over image to zoom in Click on image to zoom
Lightware EDU-P1 Product Bundle: SW4-TPS-TX240-Plus extender and HDMI-4K de-embedder interface - 91540077
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Lightware EDU-P1 Product Bundle: SW4-TPS-TX240-Plus extender and HDMI-4K de-embedder interface - 91540077

Availability: Call for Availability
Availability: Direct Ship
LightWare SKU: 91540077
No reviews
Price:
$1,550.00

Description

At Lightware, our aim is to continuously develop and create solutions that perfectly fit the needs of AV professionals at various fields and application environments.

Consequently, and in line with the feedback we received recently, we are delighted to introduce a new product bundle that packs the renowned SW4-TPS-TX240-Plus extender with a separate HDMI-4K de-embedder.

This solution is particularly useful for environments where a presenter or lecturer addresses a wider audience, such as educational applications and auditoriums, hence the audio signal needs to be de-embedded and sent to speakers or audio system closer located around the podium.

Since the receiver is normally placed further away from the presenter, the possibility to de-embed the audio signal near the transmitter can greatly simplify system design, thus make life easier for AV professionals when installing devices in such environments.

Beyond the obvious advantages and benefits represented for integrators, this bundle also offers fantastic value and better price-point than purchasing the two products separately.

The SW4-TPS-TX240-Plus comes with Lightware's Advanced Control Pack 2 offers unparalelled third-party control capabilities and a plethora of automation features like the MiniWeb configurator that together create a safe and efficient touchless environment for any collaboration.

  • Built-in Event Manager control automation feature
  • 1920x1080@120Hz/4:4:4, 4096x2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
  • Extends DVI, HDMI 1.4 or DP 1.1 + Audio + Ethernet + RS-232 + IR over one CAT5/6/7 cable
  • Audio embedding (or replace original audio)
  • Ethernet extension (100 Mbps)
  • Pixel Accurate Reclocking
  • Command injection on RS-232 and IR ports
  • Input cable equalization up to 20m at 1080p60Hz (with 24 AWG high quality DVI/HDMI cable)

HDMI-4K De-embedder

Specifications
Data rate per TMDS channel: 3 Gbps
Max resolution: 3840 x 2400 or 4096 x 2160
Reclocking: Yes
HDCP pass through: Yes
Input cable equalization: Automatic max 20m @4k30, or 30m @1080p60
Digital audio formats:

Supports up to 8 channel PCM (de-embed and pass-through), Dolby TrueHD
and DTS-HD Master Audio 7.1 (pass-through only) formats
Front panel control: Yes, EDID learn button, EDID selector switch
LED indicators:

Live, Video Input Status, Audio Signal Format,
Video Output Status
EDID emulation:

Yes, Advanced EDID management with 100 EDID memories
EDID memory:

55 factory preset , 6 universal, 2 transparent,
37 user programmable
EDID support: 256 byte Extended EDID
+5V Power on HDMI Outputs: 500 mA
Power: Universal power adaptor, DC 5V 2.5A (max)
Power consumption: 1,8 W (max)
Enclosure: 1 mm metal
Dimensions: 100,4 W x 67,6 D x 26 H mm
Net weight: 250 gramms
Warranty: 3 years



Connectors
Input / Output: HDMI connector / HDMI connector
Audio Output:  5 phole Phoenix type
Local Headphone Monitoring Output: 3.5 jack type
Control: mini USB-B female connector
Power: DC connector (1.35 / 3.5 mm)

SW4-TPS-TX240

Specifications
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz>
Digital audio formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input cable equalization: 4K UHD/15m; FullHD/30m
EDID emulation: Yes, Advanced EDID Management
EDID memory: 120 factory preset, 15 user programmable
HDCP pass-through: Yes
RS-232 pass-through: Yes, configurable
RS-232 (control option): 9600, 19200, 38400, 57600, 115200 Baud Rx,Tx (local or through CATx)(default: 57600)
Local power: Universal power adaptor, DC 12V 2.5A
Power over TPS: DC 48V 1 A
Power consumption: 8,5W (typ)
Enclosure: 1 mm metal
Dimensions: 221 W x 100.4 D x 26 H mm
Compliance: CE
Warranty: 3 years



Connectors
Digital video input: HDMI connector, DVI-D connector, DisplayPort
Digital video output: HDMI connector
Audio input: 3.5 mm stereo jack
Ethernet: 1 x RJ45
GPIO: 8-pole PHOENIX
IR: 3.5 mm jack
TPS output: 1 x RJ45
Serial port: 3-pole PHOENIX
Power: Locking DC connector (2.1 / 5.5 mm)



Analog audio input
Volume: -96 .. 0 dB
Balance: 0 .. 100%



Max cable lengths with the available firmware versions
 Resolution  Pixel clock rate Cable lengths (Auto / LR link mode)
CAT5e AWG24 CAT7 AWG26** CAT7 AWG23
  1024x768@60Hz 65 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1280x720p@60Hz 73,8 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1920x1080p@60Hz / 24bpp 148,5 MHz 100 m / 130 m* 90 m / 120 m* 120 m / 170 m*
  1920x1200@60Hz 152,9 MHz 100 m / NA 90 m / NA 120 m / NA
  1600x1200@60Hz 162 MHz 100 m / NA 90 m / NA 120 m / NA
  1920x1080@60Hz / 36bpp 223 MHz 70 m / NA 70 m / NA 100 m / NA
  3840x2160@30Hz UHD 297 MHz 70 m / NA 70 m / NA 100 m / NA
  4096x2160@30Hz 4K 297 MHz 70 m / NA 70 m / NA 100 m / NA
 *with long reach firmware option. Long reach firmware supports pixel clock frequencies up to 148,5 MHz.
**Distances are 20% shorter if remote powering used. AWG 26 cables are not recommended with remote powering.
